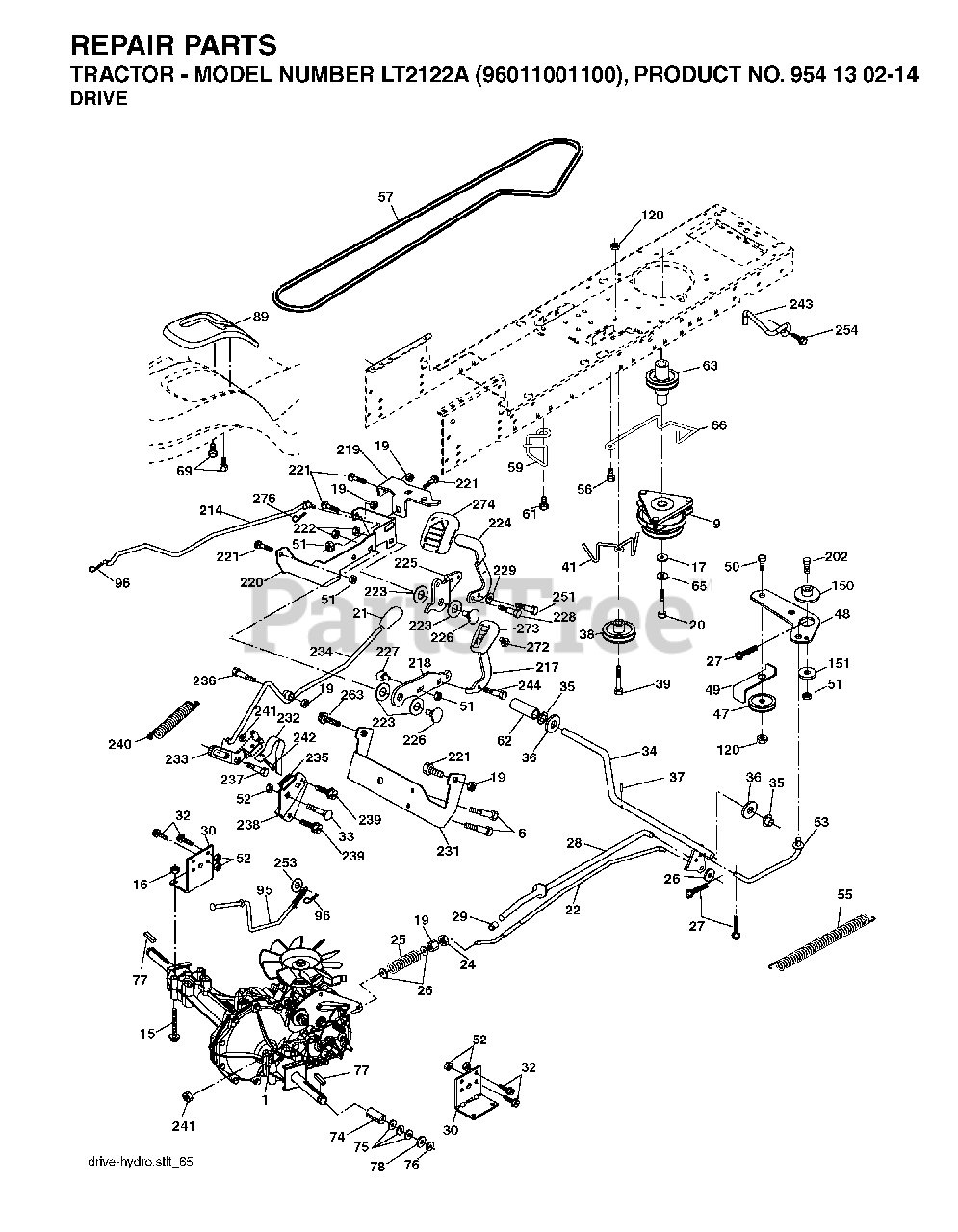

LT 2122 A (960110011-00) - Jonsered Lawn Tractor (2005-01) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

6

Jonsered 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

9

Jonsered 532179334

CLUTCH ELECTRIC
(Superseded to 532414717)

$399.99

$

Usually ships in 3-10 days

0

15

Jonsered 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

16

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

17

Jonsered 532126197

WASHER

$8.99

$

In Stock, Qty 20+

0

19

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

20

Jonsered 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, Qty 11

0

21

Jonsered 532181454

No Description Available

$

$

Not available

22

Jonsered 532175896

ROD, BRAKE

$21.99

$

Usually ships in 3-10 days

0

24

Jonsered 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

25

Jonsered 532192036

No Description Available
(Superseded to 583201301)

$4.99

$

Usually ships in 3-10 days

0

26

Jonsered 819131316

WASHER

$4.99

$

In Stock, Qty 9

0

27

Jonsered 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

28

Jonsered 532175765

ROD, PARKING BRAKE

$6.49

$

Usually ships in 3-10 days

0

29

Jonsered 532071673

PLUNGER CAP

$4.99

$

In Stock, only 1 left!

0

30

Jonsered 532169592

BRKT, TRNSXLE MNT 20"

$6.49

$

Usually ships in 3-10 days

0

32

Jonsered 874760512

BOLT
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

33

Jonsered 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

34

Jonsered 532175578

SHAFT, FOOT PEDAL

$30.99

$

Usually ships in 3-10 days

0

35

Jonsered 532120183

BEARING.NYLON

$6.49

$

In Stock, Qty 7

0

36

Jonsered 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

37

Jonsered 532124963

DRIVE PIN
(Superseded to 532002882)

$

$

Not available

38

Jonsered 532179114

PULLEY IDLER COMPOSITE

$31.99

$

In Stock, Qty 20+

0

39

Jonsered 872110622

BOLT

$3.99

$

In Stock, only 3 left!

0

41

Jonsered 532175556

KEEPER, BELT IDLER

$9.99

$

In Stock, only 1 left!

0

47

Jonsered 532127783

IDLER PULLEY
(Superseded to 532139245)

$34.99

$

In Stock, Qty 9

0

48

Jonsered 532154407

BELLCRANK, CLUTCH

$8.99

$

In Stock, only 1 left!

0

49

Jonsered 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

50

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

51

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

52

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Jonsered 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Jonsered 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

56

Jonsered 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

57

Jonsered 532140294

DRIVE BELT, LTH & YTH TRACTORS

$36.99

$

In Stock, Qty 20+

0

59

Jonsered 532169691

KEEPER, BELT CENTER

$26.99

$

Usually ships in 3-10 days

0

61

Jonsered 817120614

SCREW 3/8-16X.875
(Superseded to 817490614)

$

$

Not available

62

Jonsered 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, only 4 left!

0

63

Jonsered 532174607

PULLEY- ENGINE

$66.99

$

In Stock, only 1 left!

0

65

Jonsered 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

66

Jonsered 532154778

KEEPER BELT ENGINE

$12.99

$

In Stock, only 1 left!

0

69

Jonsered 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

74

Jonsered 532137057

SPACER AXLE

$7.49

$

In Stock, Qty 10

0

75

Jonsered 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

76

Jonsered 812000001

E-RING LT

$4.99

$

In Stock, Qty 20+

0

77

Jonsered 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 8

0

78

Jonsered 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

89

Jonsered 532192259

No Description Available

$

$

Not available

95

Jonsered 532180825

ROD BYPASS

$

$

Not available

96

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

120

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

150

Jonsered 532175456

SPACER, RETAINER

$

$

Not available

151

Jonsered 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$3.99

$

In Stock, Qty 19

0

202

Jonsered 872110614

BOLT
(Superseded to 596136201)

$3.99

$

In Stock, Qty 8

0

214

Jonsered 532174735

LINK TRANSAXLE

$48.99

$

Usually ships in 3-10 days

0

217

Jonsered 532179433

PEDAL REVERSE

$

$

Not available

218

Jonsered 532174713

ARM CONTROL PEDAL REVERSE

$

$

Not available

219

Jonsered 532174839

BRACKET FREST PDL

$9.99

$

Usually ships in 3-10 days

0

220

Jonsered 532174711

BRACKET MTG.PDL CONTROL

$14.99

$

Usually ships in 3-10 days

0

221

Jonsered 872140606

BOLT

$

$

Not available

222

Jonsered 873680700

NUT GTV

$2.99

$

Usually ships in 3-10 days

0

223

Jonsered 532174840

WASHER NYLON

$

$

Not available

224

Jonsered 532174736

PEDAL FORWARD
(Superseded to 174736)

$4.99

$

Usually ships in 3-10 days

0

225

Jonsered 532174712

ARM CONTROL PEDAL FORWARD

$17.99

$

Usually ships in 3-10 days

0

226

Jonsered 532174902

BOLT PIVOT SPACER

$

$

Not available

227

Jonsered 532174710

CAM REVERSE PEDAL LT

$7.49

$

In Stock, only 1 left!

0

228

Jonsered 532179032

BOLT SHOULDER
(Superseded to 532171873)

$6.99

$

Usually ships in 3-10 days

0

229

Jonsered 532176451

WASHER SERRATED

$4.99

$

Usually ships in 3-10 days

0

231

Jonsered 532174573

STRAP TORQUE
(Superseded to 583279501)

$9.49

$

Usually ships in 3-10 days

0

232

Jonsered 532175570

ACUATOR CRUISE DISENGAGE
(Superseded to 175570)

$2.49

$

Usually ships in 3-10 days

0

233

Jonsered 532174856

PAWL CONTROL CRUISE
(Superseded to 174856)

$10.99

$

Usually ships in 3-10 days

0

234

Jonsered 532174858

LEVER CONTROL CRUISE

$17.99

$

Usually ships in 3-10 days

0

235

Jonsered 532174857

SECTOR CONTROL CRUISE

$4.99

$

Usually ships in 3-10 days

0

236

Jonsered 532128903

BOLT

$6.49

$

In Stock, only 3 left!

0

237

Jonsered 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 20+

0

238

Jonsered 532175807

ARM MTG.CRUISE SECTOR
(Superseded to 175807)

$4.49

$

Usually ships in 3-10 days

0

239

Jonsered 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

240

Jonsered 532175610

SPRING RETURN CRUISE CONTROL

$7.49

$

Usually ships in 3-10 days

0

241

Jonsered 873930400

NUT CENTERLOCK
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

242

Jonsered 874780412

BOLT
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

243

Jonsered 532190736

BRACKET, ANTI-ROTATION

$40.99

$

In Stock, only 3 left!

0

244

Jonsered 817490510

SCREW

$4.99

$

Usually ships in 3-10 days

0

251

Jonsered 817060516

SCREW 5/16-18X1

$6.49

$

Usually ships in 3-10 days

0

253

Jonsered 532179422

WASHER

$6.49

$

In Stock, only 2 left!

0

254

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 4 left!

0

271

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

272

Jonsered 817670508

SCREW, 5/16-18 X 1/2

$6.49

$

In Stock, only 2 left!

0

273

Jonsered 532179610

No Description Available

$

$

Not available

274

Jonsered 532175646

COVER PEDAL FORWARD

$9.99

$

Usually ships in 3-10 days

0
