LT 2122 A2 (960110226-00) - Jonsered Lawn Tractor (2006-03) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

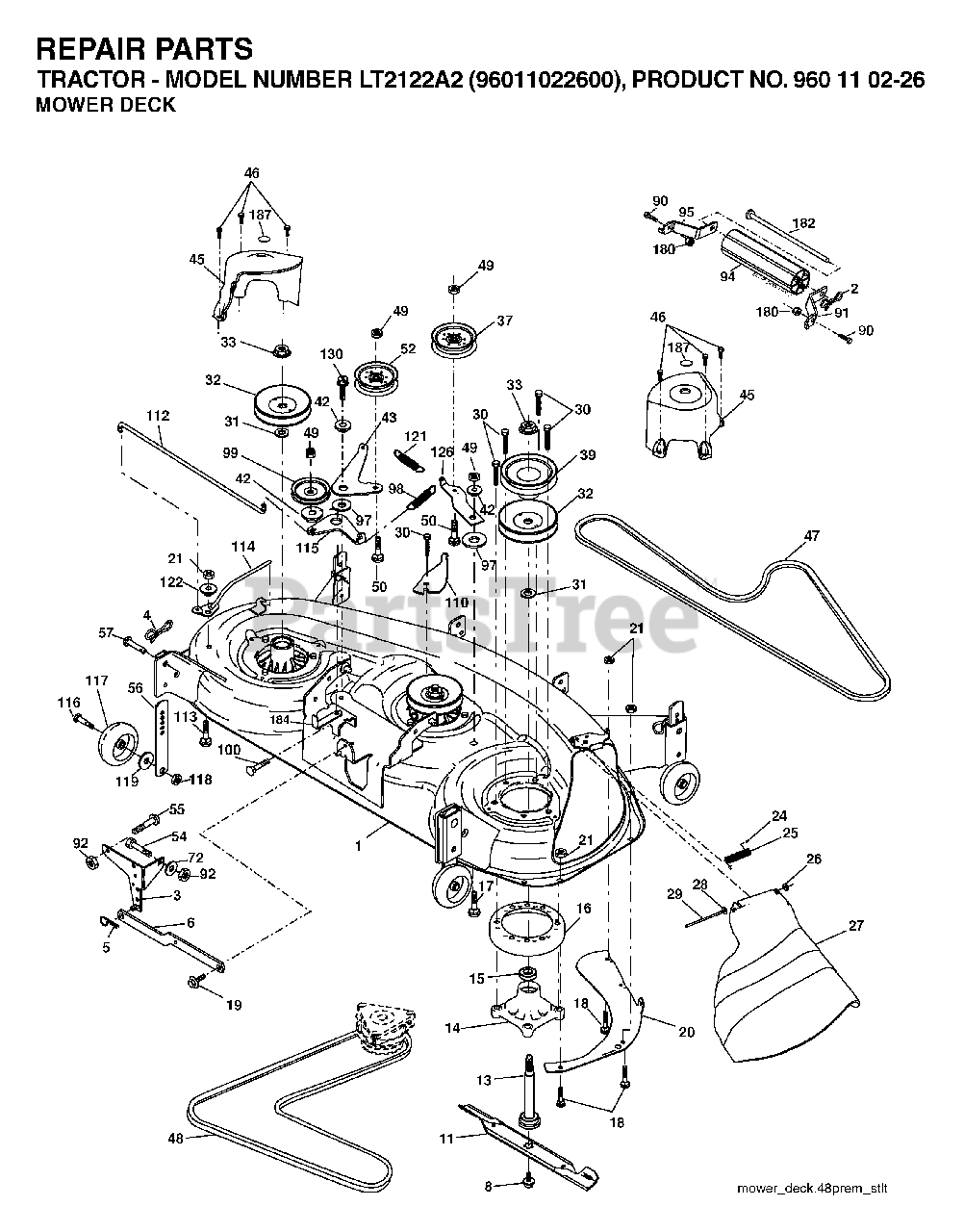

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Jonsered 532180358

DECK WELDMENT
(Superseded to 532184233)

$

$

Not available

2

Jonsered 532194209

PIN.COTTER.7/16.BOW TI

$3.99

$

In Stock, Qty 20+

0

3

Jonsered 532138017

BRKT ASM SWAY BAR

$12.99

$

In Stock, Qty 11

0

4

Jonsered 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

In Stock, Qty 20+

0

5

Jonsered 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

6

Jonsered 532178024

BAR SWAY DECK

$8.99

$

In Stock, Qty 5

0

8

Jonsered 532174365

BOLT 7/16 ASM BLADE
(Superseded to 532193003)

$8.99

$

In Stock, Qty 20+

0

11

Jonsered 532180054

48" HI-LIFT BLADE

$15.99

$

In Stock, Qty 20+

0

13

Jonsered 532174360

SHAFT ASM W/LOWER BEARING

$66.99

$

In Stock, Qty 17

0

14

Jonsered 532174358

HOUSING, MANDREL 48"

$37.99

$

In Stock, Qty 7

0

15

Jonsered 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

16

Jonsered 532174493

STRIPPER, MWR ROUND

$7.49

$

Usually ships in 3-10 days

0

17

Jonsered 872110610

BOLT
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

18

Jonsered 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Jonsered 532132827

BOLT SHD 5/16-18

$6.49

$

Usually ships in 3-10 days

0

20

Jonsered 532174378

BAFFLE, VORTEX MWR

$14.99

$

In Stock, Qty 20+

0

21

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

24

Jonsered 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Jonsered 532178102

SPRING, TORSION
(Superseded to 539107609)

$4.99

$

In Stock, Qty 20+

0

26

Jonsered 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

27

Jonsered 532181707

DEFLECTOR SUBS TO 532 180655
(Superseded to 532180655)

$42.99

$

In Stock, Qty 20+

0

28

Jonsered 819111016

WASHER
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

29

Jonsered 532131491

ROD.HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

30

Jonsered 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

31

Jonsered 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

32

Jonsered 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$10.99

$

In Stock, Qty 20+

0

33

Jonsered 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

37

Jonsered 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$24.99

$

In Stock, Qty 20+

0

39

Jonsered 532174375

PULLEY.IDLER.DRIVEN

$37.99

$

In Stock, Qty 20+

0

42

Jonsered 532165723

SPACER.RETAINER.MOWER

$6.49

$

In Stock, Qty 12

0

43

Jonsered 532174373

ARM, IDLER SECONDARY

$

$

Not available

45

Jonsered 532180806

COVER.MANDREL.DECK.48"

$

$

Not available

46

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

47

Jonsered 532180808

V-BELT, 48"SECONDARY
(Superseded to 531300771)

$

$

Not available

48

Jonsered 532174368

V-BELT PRIMARY 48"

$49.99

$

In Stock, Qty 20+

0

49

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

50

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

52

Jonsered 532193198

PULLEY.IDLER.FLAT.UNPLATED
(Superseded to 596481402)

$26.99

$

In Stock, only 4 left!

0

54

Jonsered 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

55

Jonsered 872140608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

56

Jonsered 532155986

BAR.ADJUST.WHEEL.ANTI.SCALP.BL

$18.99

$

In Stock, Qty 17

0

57

Jonsered 532156941

RIVET.PIN.HEAD.YELLOW

$6.49

$

In Stock, Qty 11

0

72

Jonsered 819131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

90

Jonsered 874760516

BOLT RB
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

91

Jonsered 532180535

BRKT.NOSEROLLER.RH.48"

$4.99

$

In Stock, Qty 12

0

92

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

94

Jonsered 532176066

NOSE ROLLER 48"

$9.99

$

In Stock, Qty 20+

0

95

Jonsered 532180534

BRKT.NOSEROLLER.LH.48"

$4.99

$

Usually ships in 3-10 days

0

97

Jonsered 532178515

WASHER

$6.49

$

In Stock, Qty 20+

0

98

Jonsered 532179479

SPRING PRIMARY DRIVE

$

$

Not available

99

Jonsered 532193195

PULLEY.V.IDLER

$67.99

$

In Stock, Qty 14

0

100

Jonsered 872110616

BOLT
(Superseded to 596136301)

$3.99

$

In Stock, Qty 20+

0

110

Jonsered 532175016

ARM, SPRING SECONDARY

$

$

Not available

112

Jonsered 532174387

LEVER, TENSION RELIEF LINK

$

$

Not available

113

Jonsered 872110506

BOLT

$7.49

$

In Stock, Qty 20+

0

114

Jonsered 532174384

LEVER ASM, TENSION RELIEF

$10.99

$

Usually ships in 3-10 days

0

115

Jonsered 532174609

ARM, SPRING TENSION RELIEF

$4.99

$

In Stock, only 1 left!

0

116

Jonsered 532193406

BOLT.SHOULDER.3/8-16X3-5/8
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

117

Jonsered 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$4.99

$

In Stock, Qty 20+

0

118

Jonsered 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Jonsered 819121414

WASHER
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

121

Jonsered 532174371

SPRING SECONDARY DR

$

$

Not available

122

Jonsered 532174606

BUSHING, PIVOT TENSION RELIEF

$4.99

$

In Stock, only 2 left!

0

126

Jonsered 532174372

ARM, IDLER PRIMARY DECK

$

$

Not available

130

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 8

0

180

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

182

Jonsered 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$4.99

$

In Stock, Qty 20+

0

184

Jonsered 532173979

KEEPER BELT IDLER PLATED

$

$

Not available

187

Jonsered 532178345

No Description Available

$

$

Not available

--

Jonsered 532181579

48" DECK SVC

$

$

Not available

--

Jonsered 532174356

MANDREL ASM
(Superseded to 587125201)

$40.99

$

In Stock, Qty 20+

0
