LT 2180 (13A-254G710) - Cub Cadet 42" Lawn Tractor Drive Line Parts Diagram

42" Lawn Tractor

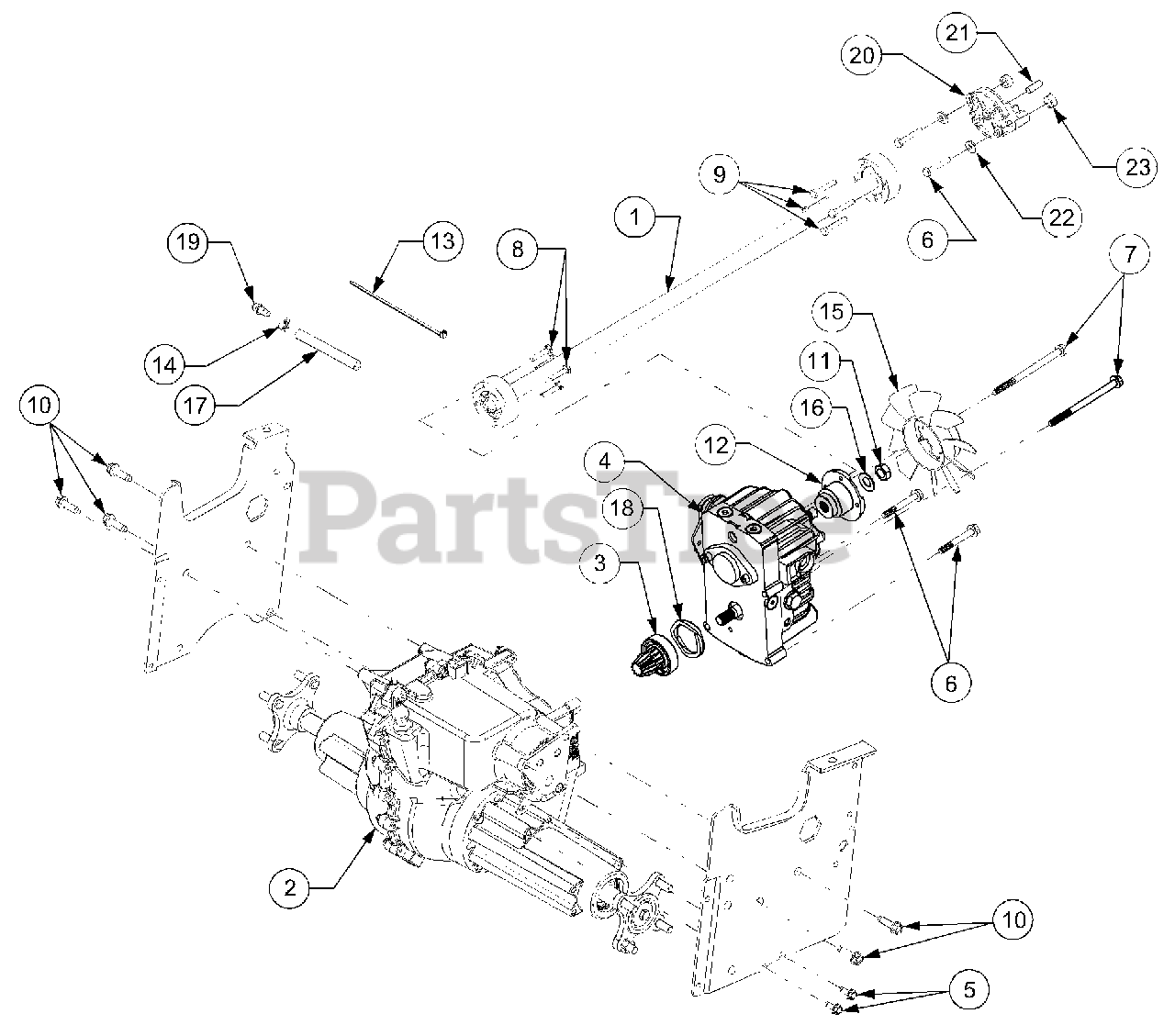

Drive Line Parts Diagram

  • Title

1

Cub Cadet 603-0179

Shaft Assembly, Drive, 29.06 Lg

$342.99

$

Usually ships in 3-6 days

0

Cub Cadet 759-3764

Kit, Drive Barrel

$29.99

$

In Stock, Qty 20+

0

2

Cub Cadet 618-04110

Transmission Assembly (Double D)
(Superseded to 918-04110)

Note: Does NOT include wheel hub assemblies and brake spring.

$

$

Not available

Cub Cadet 618-3231

Transmission Assembly (Spline)
(Superseded to 918-3231)

Note: Does NOT include wheel hub assemblies and brake spring.

$

$

Not available

3

Cub Cadet 618-3088

Pinion Assembly, Input

$201.99

$

Usually ships in 3-6 days

0

Cub Cadet 721-04093

Pump Gasket (Not Shown)
(Superseded to 921-04093)

$

$

Not available

4

Cub Cadet 618-3243

Pump, Hydrostatic
(Superseded to 918-3243)

$1598.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-1260A

Screw, Hex Wsh Tap, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3180

Screw, Hex Cap, 5/16-18 x 1.75 GR5

$5.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3195

Screw, Hex Cap, 5/16-18 x 4.5 GR5

$7.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-1062

Screw, Hex Patch, 1/4-20 x 1.25 GR5

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-3288

Screw, Hex Patch, 1/4-20 x 1.62 GR5

$7.49

$

In Stock, Qty 10

0

10

Cub Cadet 710-3290

Screw, Hex Wsh Tap, 3/8-16 x 1.25

$4.49

$

In Stock, only 1 left!

0

11

Cub Cadet 712-3059

Nut, Hex Top Lock Jam GR5, 1/2-20

$4.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 748-3093

Adapter, Pump

$149.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 725-0157

Tie, Self-Clinch Cable

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 726-0205

Clamp, Hose

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 731-3297

Fan, 10 Blade Cooling

$40.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-0253

Washer, Bell, 1/2 ID

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 759-3330

Line, Fuel, 7in (10ft Bulk)

$63.99

$

In Stock, only 2 left!

0

18

Cub Cadet 736-3099

Washer, Wave, 1.96 x 2.44 x .06
(Superseded to 936-3099)

$

$

Not available

19

Cub Cadet 737-0296

Vent

$13.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 719-3096

Adapter, Drive Shaft
(Superseded to KH-24-029-12-S)

$33.99

$

In Stock, only 2 left!

0

21

Cub Cadet 711-3330

Pin, Locating, .352 Dia x 1.156

$

$

Not available

22

Cub Cadet 736-3008

Washer, Flat, .344 x .75 x .12
(Superseded to 936-3008)

$7.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 750-0507

Spacer, .38 x .625 x .275
(Superseded to 750-04776)

$5.99

$

In Stock, only 3 left!

0
