LT 2180 (13A-254G712) - Cub Cadet 42" Lawn Tractor Transmission Controls Parts Diagram

42" Lawn Tractor

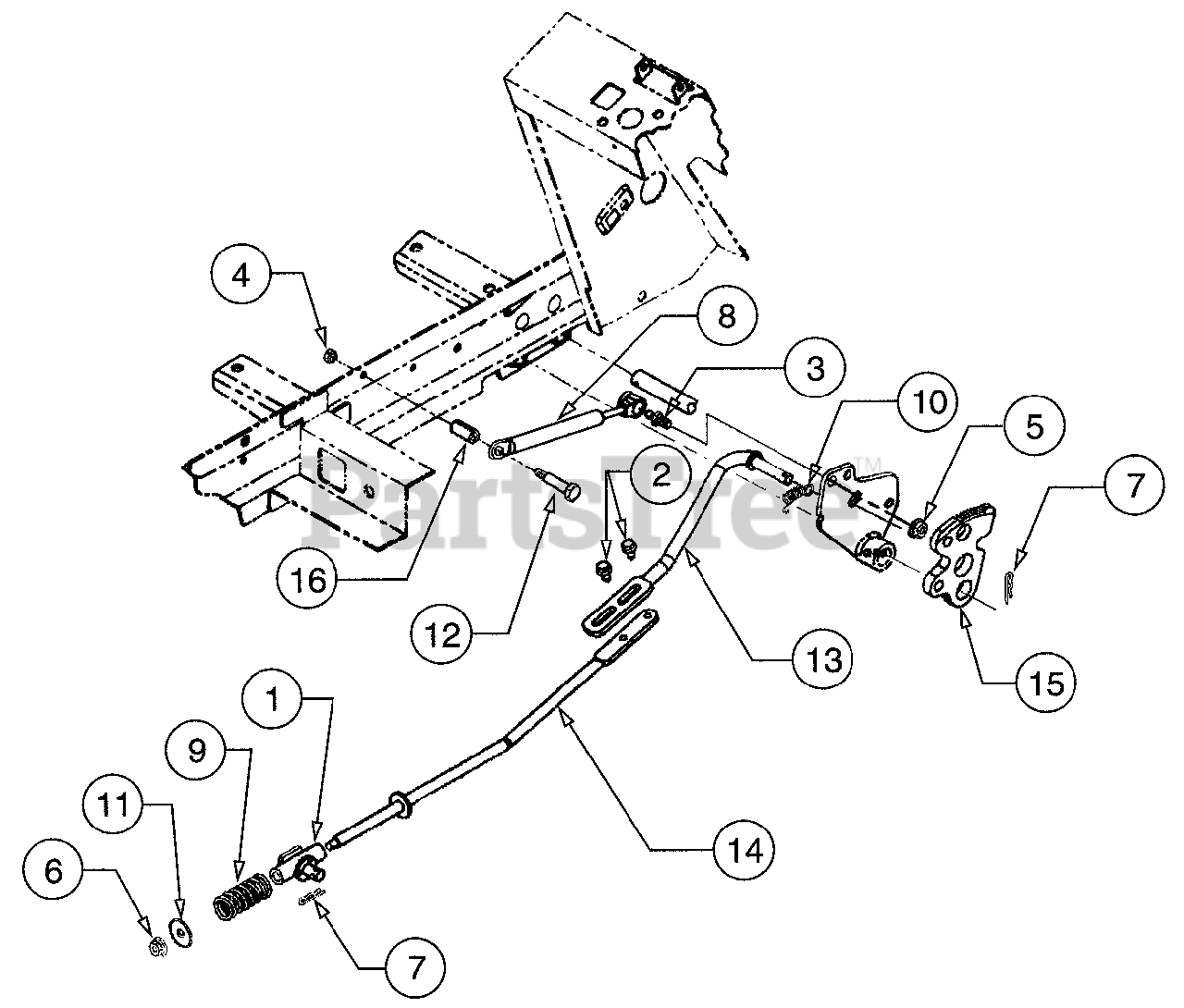

Transmission Controls Parts Diagram

  • Title

1

Cub Cadet 603-0272

Pivot Assembly

$

$

Not available

2

Cub Cadet 710-0599

Screw, Hex Wsh Hd Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-3170

Screw, Ball, 5/16-18 x.56

$13.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.99

$

In Stock, Qty 13

0

5

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 19

0

7

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 10

0

8

Cub Cadet 727-3090

Cylinder, Damper

$100.99

$

In Stock, only 2 left!

0

9

Cub Cadet 732-3094

Spring, Compression, .63 ID x 2
(Superseded to 932-3094)

$10.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 732-3118

Spring, Extension, 3/8 OD x 1.44

$10.99

$

In Stock, only 2 left!

0

11

Cub Cadet 736-3092

Washer, Flat, .265 x 1 x .030

$4.49

$

In Stock, only 3 left!

0

12

Cub Cadet 738-0560

Bolt, Shoulder, .374 Dia x 1.375
(Superseded to 938-0560)

$10.99

$

In Stock, only 1 left!

0

13

Cub Cadet 747-3304

Rod, Front Control

$

$

Not available

14

Cub Cadet 747-3309

Rod, Rear Hydro Control

$

$

Not available

15

Cub Cadet 748-3070

Plate, Cruise
(Superseded to 748-3070A)

$

$

Not available

16

Cub Cadet 750-0434

Spacer, Split Tubing, .375 ID x 1.04

$7.49

$

Usually ships in 3-6 days

0
