LT-2200 (13A6606H790) - White Outdoor 46" Lawn Tractor (2004) Deck Assembly Parts Diagram

46" Lawn Tractor

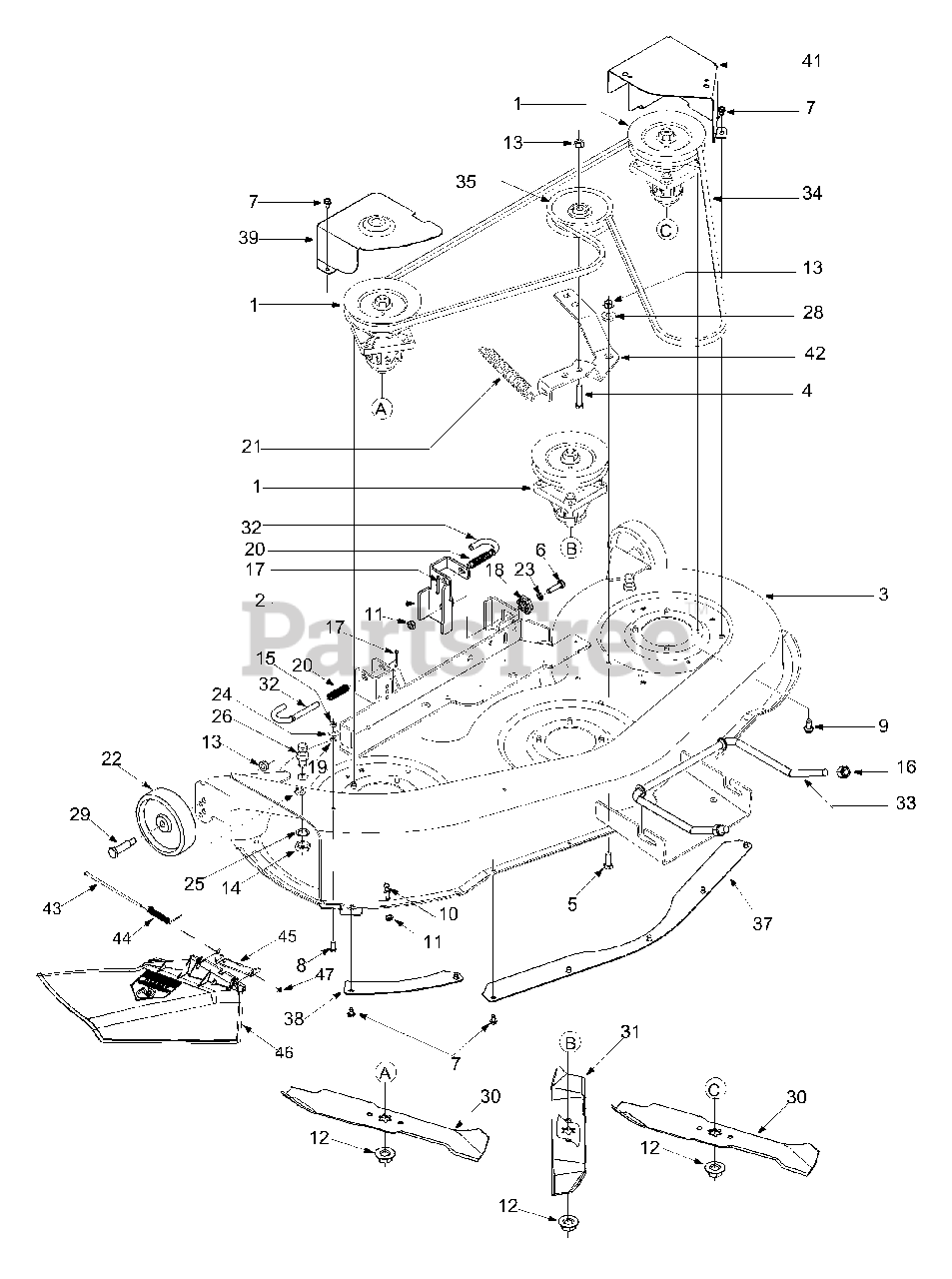

Deck Assembly Parts Diagram

  • Title

1

White Outdoor 618-04137

Pulley-Spindle Assembly
(Superseded to 918-0625B)

$149.99

$

In Stock, Qty 13

0

1

White Outdoor 17983

Bearing Shield
(Superseded to 504-01396)

Note: Not Shown

$

$

Not available

1

White Outdoor 619-0042A

Spindle Housing
(Superseded to 753-07015)

Note: Not Shown

$60.99

$

In Stock, only 2 left!

0

1

White Outdoor 712-0417A

Flaneg Nut:5/8-18

Note: Not Shown

$7.49

$

In Stock, Qty 20+

0

1

White Outdoor 937-3000

Grease Fitting:3/16:LNC #70:DRI

Note: Not Shown

$4.99

$

In Stock, Qty 20+

0

1

White Outdoor 753-06348

Spindle Shaft: 6.11 LG.

Note: Not Shown, Replaces 738-1186 Shaft 6.05 Lg

$41.99

$

In Stock, only 4 left!

0

1

White Outdoor 941-0919

Ball Bearing:20X47X14:62
(Superseded to 941-0919B)

Note: Not Shown

$21.99

$

In Stock, Qty 20+

0

1

White Outdoor 750-0952

Spacer:.792 X 1.060 X 1.8

Note: Not Shown

$7.99

$

In Stock, only 2 left!

0

1

White Outdoor 756-1188

Deck Pulley:5.75 DIA

Note: Not Shown

$38.99

$

In Stock, Qty 14

0

2

White Outdoor 683-0254

Deck Hanger Bracket Assembly
(Superseded to 683-0254B)

Variations

683-0254-0637

White Outdoor 683-0254-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

683-0254-0650

White Outdoor 683-0254-0650

BRACKET ASSY-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

683-0254-0665

White Outdoor 683-0254-0665

BRACKET ASSY-DECK LH - YARDMAN GREEN (0665)

$52.99

$

Usually ships in 3-6 days

0

683-0254-0691

White Outdoor 683-0254-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

3

White Outdoor 683-04104

Deck Assembly w/ Nozzle
(Superseded to 983-04104A)

Variations

683-04104-0606

White Outdoor 683-04104-0606

DECK ASSY 46" - MAJESTIC ORANGE (0606)

$

$

Not available

683-04104-0637

White Outdoor 683-04104-0637

DECK SHELL 46" POWDER BLACK - POWDER BLACK (0637)

$

$

Not available

683-04104-0638

White Outdoor 683-04104-0638

DECK ASSEMBLY 46" RED - MTD/TROY-BILT RED (0638)

$

$

Not available

683-04104-0650

White Outdoor 683-04104-0650

DECK ASSY 46" - RED METALLIC (0650)

$

$

Not available

$1031.99

$

Usually ships in 3-6 days

0

4

White Outdoor 710-0347

Hex Bolt 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-0514

Hex Bolt 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-0528

Hex Bolt 5/16-18 x 1.25

$4.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-0751

Hex Bolt 1/4-20 x 0.620

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-1260A

LD Screw 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 711-04069

Grasscatcher Pin
(Superseded to 911-04069)

$8.99

$

In Stock, Qty 18

0

11

White Outdoor 712-0324

Lock Nut 1/4-20

$3.99

$

In Stock, only 2 left!

0

12

White Outdoor 712-0417A

Flange Nut

$7.49

$

In Stock, Qty 20+

0

13

White Outdoor 712-0431

Flanged Lock Nut 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

14

White Outdoor 712-0641

Hex Nut M16

$6.49

$

In Stock, Qty 9

0

15

White Outdoor 712-3006

Hex Nut

$4.99

$

In Stock, Qty 11

0

16

White Outdoor 712-3083

Hex Lock Nut 1/2-13

$4.99

$

In Stock, Qty 20+

0

17

White Outdoor 714-0111

Cotter Pin

$5.49

$

In Stock, Qty 20+

0

18

White Outdoor 717-04074

Gear: Deck Adjustment
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 20+

0

19

White Outdoor 726-0233

Push Nut

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 732-0306A

Compression Spring
(Superseded to 932-0306A)

$8.99

$

In Stock, Qty 8

0

21

White Outdoor 732-0594A

Extension Spring
(Superseded to 932-0594A)

$15.99

$

In Stock, only 4 left!

0

22

White Outdoor 734-0973

Deck Wheel
(Superseded to 734-06265)

$13.99

$

Usually ships in 3-6 days

0

23

White Outdoor 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

White Outdoor 736-0270

Bell Washer

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 736-0760

Lock Washer

$4.49

$

In Stock, Qty 7

0

26

White Outdoor 737-04003B

Nozzle
(Superseded to 737-04003D)

$24.99

$

In Stock, Qty 7

0

27

737-3007

Grease

$

$

Not available

28

White Outdoor 738-0372B

Shoulder Spacer

$10.99

$

In Stock, Qty 20+

0

29

White Outdoor 738-0373

Shoulder Screw 3/8-16 x 1.5
(Superseded to 938-0373)

$9.99

$

In Stock, Qty 20+

0

30

White Outdoor 742-0611A

Blade 16.28 Lg.: Three-in-One
(Superseded to 942-0611A)

$31.99

$

In Stock, Qty 20+

0

31

White Outdoor 742-0612A

Blade 14.88 Lg.: Three-in-One
(Superseded to 942-0612A)

$31.99

$

In Stock, Qty 20+

0

32

White Outdoor 747-1116

Deck Release Handle

$12.99

$

In Stock, Qty 20+

0

33

White Outdoor 747-1130B

Deck Rod: Front Adjustment

$44.99

$

In Stock, Qty 5

0

34

White Outdoor 754-04033

V Belt
(Superseded to 954-04033A)

$53.99

$

In Stock, Qty 20+

0

35

White Outdoor 756-1229

Idler Pulley

$49.99

$

In Stock, Qty 20+

0

36

771-11725A

Danger Tag

$

$

Not available

37

White Outdoor 783-0141

Deck Skirt: Center

Variations

783-0141-0637

White Outdoor 783-0141-0637

Center Deck Skirt, Powder Black - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

783-0141-4008

White Outdoor 783-0141-4008

Center Skirt for Deck, Red - WINE RED (4008)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

Usually ships in 3-6 days

0

38

White Outdoor 783-0142

Deck Skirt RH
(Superseded to 783-0142-0637)

Variations

783-0142-0637

White Outdoor 783-0142-0637

Deck Skirt, RH Powder Black - POWDER BLACK (0637)

$51.99

$

In Stock, only 1 left!

0

783-0142-4008

White Outdoor 783-0142-4008

Deck Skirt, RH Powder Black - WINE RED (4008)

$51.99

$

In Stock, only 1 left!

0

$51.99

$

In Stock, only 1 left!

0

39

White Outdoor 783-0805C

Belt Cover

Variations

783-0805C-0637

White Outdoor 783-0805C-0637

Belt Cover, RH Black - POWDER BLACK (0637)

$

$

Not available

783-0805C-0650

White Outdoor 783-0805C-0650

COVER-BELT RH - RED METALLIC (0650)

$

$

Not available

783-0805C-0665

White Outdoor 783-0805C-0665

COVER-BELT RH - YARDMAN GREEN (0665)

$

$

Not available

783-0805C-0691

White Outdoor 783-0805C-0691

COVER-BELT RH - BLACK JACK (0691)

$

$

Not available

783-0805C-0716

White Outdoor 783-0805C-0716

Belt Cover, RH Yellow - CUB YELLOW-99 (0716)

$

$

Not available

783-0805C-4008

White Outdoor 783-0805C-4008

COVER-BELT RH - WINE RED (4008)

$

$

Not available

783-0805C-4021

White Outdoor 783-0805C-4021

Belt Cover, RH Yellow - CUB YELLOW 2 (4021)

$

$

Not available

$

$

41

White Outdoor 783-1348A

Belt Cover
(Superseded to 783-1348D)

Variations

783-1348A-0483

White Outdoor 783-1348A-0483

Belt Cover, LH 46" Gray - CHARCOAL GRAY (0483)

$53.99

$

In Stock, only 4 left!

0

783-1348A-0637

White Outdoor 783-1348A-0637

Belt Cover, LH 46" Black - POWDER BLACK (0637)

$53.99

$

In Stock, only 4 left!

0

783-1348A-0650

White Outdoor 783-1348A-0650

COVER-BELT:LH 46" - RED METALLIC (0650)

$53.99

$

In Stock, only 4 left!

0

783-1348A-0665

White Outdoor 783-1348A-0665

COVER-BELT:LH 46" - YARDMAN GREEN (0665)

$53.99

$

In Stock, only 4 left!

0

783-1348A-0691

White Outdoor 783-1348A-0691

COVER-BELT:LH 46" - BLACK JACK (0691)

$53.99

$

In Stock, only 4 left!

0

$49.99

$

Usually ships in 3-6 days

0

42

White Outdoor 783-1421

Idler Bracket
(Superseded to 783-1421B)

Variations

783-1421-0716

White Outdoor 783-1421-0716

Idler Bracket - CUB YELLOW-99 (0716)

$

$

Not available

$35.99

$

Usually ships in 3-6 days

0

43

White Outdoor 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

In Stock, Qty 11

0

44

White Outdoor 732-0602A

Compression Spring

$12.99

$

In Stock, only 4 left!

0

45

White Outdoor 703-1693A

Mounting Bracket

$24.99

$

In Stock, only 4 left!

0

46

731-1031C

Deflector: Discharge Chute

$

$

Not available

47

White Outdoor 726-0106

Speed Nut

$4.49

$

Usually ships in 3-6 days

0
