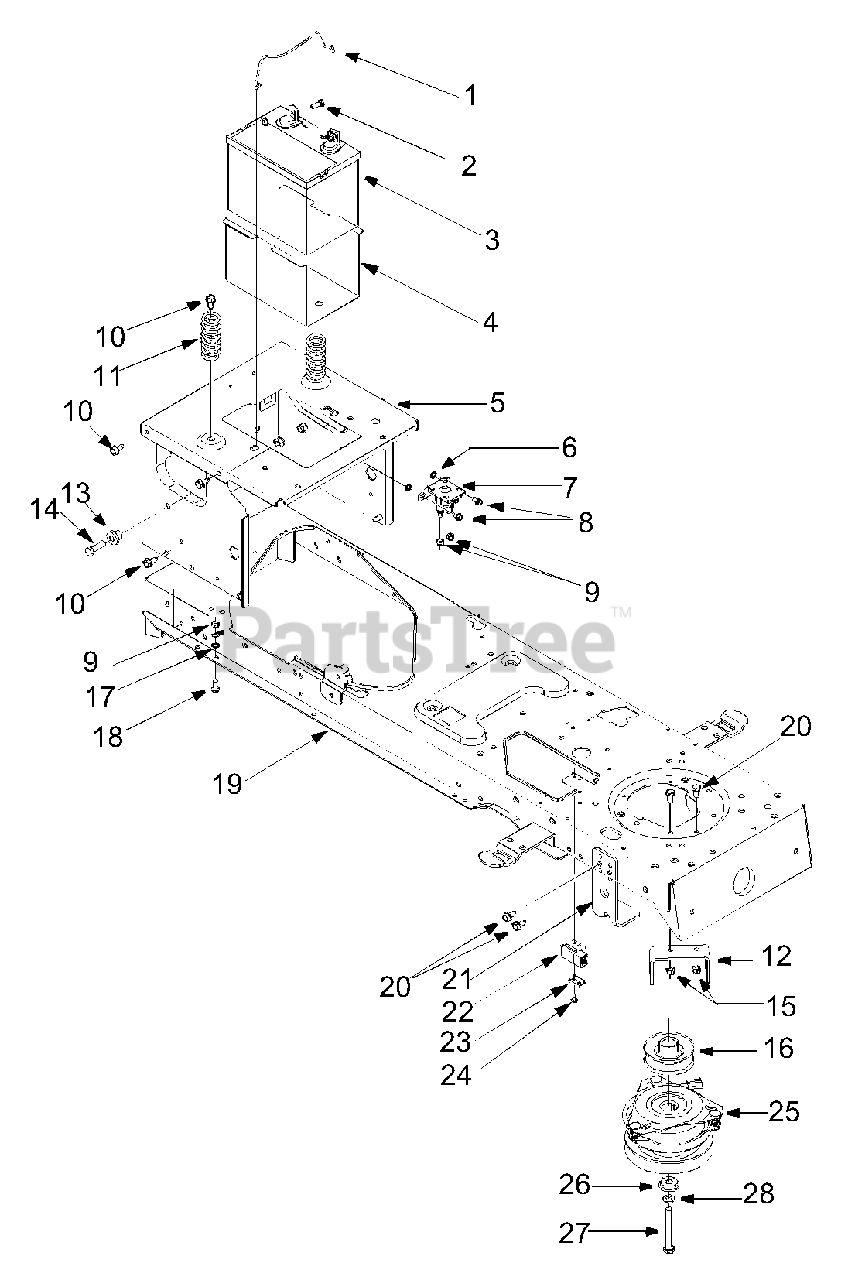

LT-2200 (13A6606H790) - White Outdoor 46" Lawn Tractor (2004) PTO & Battery Parts Diagram

46" Lawn Tractor

PTO & Battery Parts Diagram

  • Title

1

White Outdoor 747-04121A

Battery Hold-Down Rod

$6.99

$

In Stock, Qty 16

0

2

White Outdoor 710-0751

Hex Cap Screw 1/4-20 x 0.62

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 725-1706A

Battery, 270 CCA
(Superseded to 925-1707D)

$

$

Not available

4

White Outdoor 783-0349

Battery Tray

Variations

White Outdoor 783-0349-4008

TRAY-BATTERY 400 S - WINE RED (4008)

$

$

Not available

White Outdoor 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 783-04329

Seat Bracket
(Superseded to 783-04329A)

Variations

White Outdoor 783-04329-0637

BRACKET-FRAME SEAT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-04329-0716

BRACKET-FRAME SEAT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

6

White Outdoor 736-0222

Lock Washer

$6.49

$

In Stock, only 3 left!

0

7

White Outdoor 725-1426

Solenoid 12 v., 100 amp.
(Superseded to 925-1426A)

$28.99

$

In Stock, Qty 20+

0

8

White Outdoor 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, only 4 left!

0

10

White Outdoor 710-0726

AB Screw 5/16-12 x 0.75

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 732-04035

Compression Spring

$10.99

$

In Stock, Qty 13

0

12

White Outdoor 783-1003

Clutch Bracket
(Superseded to 783-1003-0637)

Variations

White Outdoor 783-1003-0637

Clutch Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

13

White Outdoor 738-04058

Spacer

$4.99

$

In Stock, only 2 left!

0

14

White Outdoor 710-3005

Hex Bolt 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 712-0429

Hex Lock Nut

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 756-04078

Pulley: Single Speed
(Superseded to 956-04078)

$48.99

$

Usually ships in 3-6 days

0

17

White Outdoor 738-0143

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 710-0642

TT Screw 1/4-20 x 0.75

$4.99

$

In Stock, Qty 20+

0

19

White Outdoor 683-04099

Lower Frame Assembly

Variations

White Outdoor 683-04099-0637

FRAME ASSY-LOWER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-04099-0650

FRAME ASSY-LOWER - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-04099-0665

FRAME ASSY-LOWER - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 683-04099-0691

FRAME ASSY-LOWER - BLACK JACK (0691)

$

$

Not available

White Outdoor 683-04099-0709

FRAME ASSY-LOWER - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 683-04099-0716

FRAME ASSY-LOWER - CUB YELLOW-99 (0716)

$

$

Not available

$374.99

$

Usually ships in 3-6 days

0

20

White Outdoor 710-3025

Hex Bolt 5/16-18 x 0.625

$4.49

$

In Stock, Qty 7

0

21

White Outdoor 783-04467

Deck Bracket

Variations

White Outdoor 783-04467-0606

BRACKET-DECK:UP STOP - MAJESTIC ORANGE (0606)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04467-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04467-0691

Deck Up-Stop Bracket - BLACK JACK (0691)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04467-0650

BRACKET-DECK:UP STOP - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-04467-0665

BRACKET-DECK:UP STOP - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-04467-0716

BRACKET-DECK:UP STOP - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-04467-4008

BRACKET-DECK:UP STOP - WINE RED (4008)

$

$

Not available

$34.99

$

Usually ships in 3-6 days

0

22

White Outdoor 725-1657A

Switch
(Superseded to 925-1657A)

$25.99

$

In Stock, only 4 left!

0

23

White Outdoor 17962

Switch Plate

$5.49

$

In Stock, Qty 12

0

24

White Outdoor 710-0224

Screw #10-16 x 0.5
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 14

0

25

White Outdoor 717-04080

Clutch: Electric PTO
(Superseded to 917-04080)

$592.99

$

Usually ships in 3-6 days

0

26

White Outdoor 738-0785

Shoulder Spacer
(Superseded to 938-0785)

$27.99

$

In Stock, Qty 5

0

27

White Outdoor 710-3157

Hex Bolt 7/16-20 x 3.25
(Superseded to 710-3157A)

$11.99

$

In Stock, Qty 20+

0

28

White Outdoor 736-0171

Lock Washer

$4.99

$

In Stock, Qty 17

0
