LT 2213 A (960410080-00) - Jonsered Lawn Tractor (2009-01) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

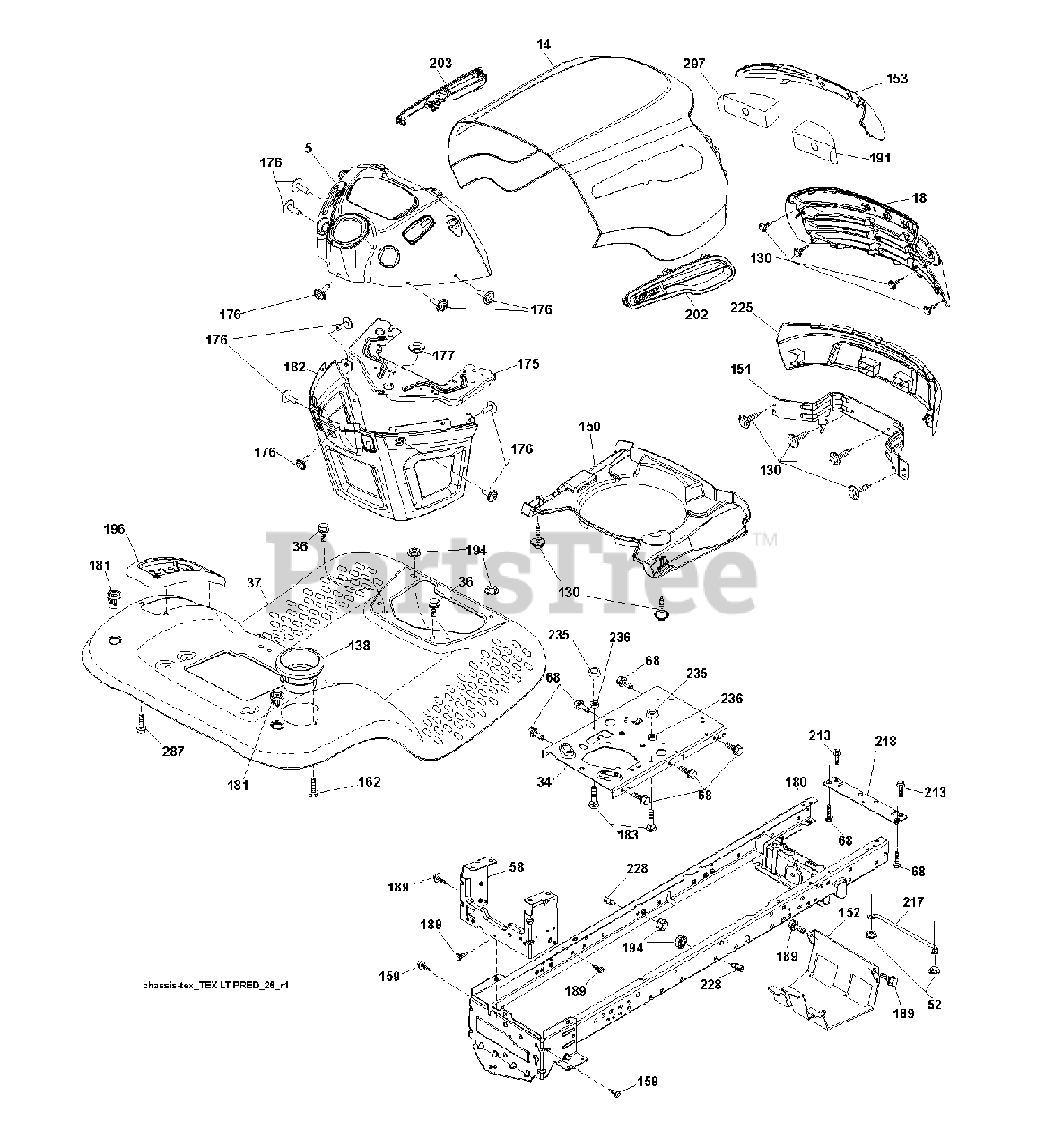

CHASSIS ENCLOSURES Parts Diagram

  • Title

5

Jonsered 532426009

DASH.PRED.LT.CC.ICY.SRVMDR.BLK

$54.99

$

Usually ships in 3-10 days

0

14

Jonsered 532424332

No Description Available
(Superseded to 532441287)

$91.99

$

Usually ships in 3-10 days

0

18

Jonsered 532423229

No Description Available

$

$

Not available

34

Jonsered 532196125

PLATE.ENGINE.WELDED.CHASSIS
(Superseded to 580910801)

$49.99

$

Usually ships in 3-10 days

0

36

Jonsered 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

37

Jonsered 532420797

No Description Available
(Superseded to 532443476)

$182.99

$

Usually ships in 3-10 days

0

52

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

58

Jonsered 532412280

DRAWBAR UPPER 2PC SMALL FENDER

$46.99

$

Usually ships in 3-10 days

0

68

Jonsered 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

130

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 20+

0

138

Jonsered 532409730

CUPHOLDER.TL.TEX.BLACK

$7.49

$

In Stock, only 1 left!

0

150

Jonsered 532400267

No Description Available

$24.99

$

Usually ships in 3-10 days

0

151

Jonsered 532187568

BRACKET.PIVOT.ALPHA.LT

$15.99

$

Usually ships in 3-10 days

0

152

Jonsered 532199535

SHIELD BROWNING

$

$

Not available

153

Jonsered 532409740

No Description Available
(Superseded to 532444264)

$21.99

$

Usually ships in 3-10 days

0

159

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

162

Jonsered 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

175

Jonsered 532199472

CROSSMEMBER

$9.99

$

Usually ships in 3-10 days

0

176

Jonsered 532400776

SCREW.#10-24X5/8.RN.QU

$11.99

$

In Stock, Qty 5

0

177

Jonsered 532195228

BUSHING STEERING

$4.99

$

In Stock, Qty 20+

0

180

Jonsered 532414685

No Description Available
(Superseded to 583351501)

$121.99

$

Usually ships in 3-10 days

0

181

Jonsered 532404796

FEND/FTRST.PCH.CPH.NFW
(Superseded to 532403025)

$

$

Not available

182

Jonsered 532407176

DASH.LWER.PREDATOR/HUSQ.LT

$66.99

$

Usually ships in 3-10 days

0

183

Jonsered 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

189

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

191

Jonsered 532416502

INSERT.REFLECT.PREDATOR.LT.RH

$24.99

$

Usually ships in 3-10 days

0

194

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

196

Jonsered 532414579

CONSOLE.ASM.DECKLFT.BL/RBT.TLT

$37.99

$

In Stock, only 2 left!

0

202

Jonsered 532423317

No Description Available

$

$

Not available

203

Jonsered 532423316

No Description Available

$

$

Not available

213

Jonsered 874760512

BOLT
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

217

Jonsered 532409167

ROD.PIVOT.HOOD

$13.99

$

Usually ships in 3-10 days

0

218

Jonsered 532196395

X-PIECE.HOOD.STOP.NON/

$4.99

$

Usually ships in 3-10 days

0

225

Jonsered 532423228

No Description Available

$

$

Not available

228

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

Jonsered 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Jonsered 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 2 left!

0

287

Jonsered 817600406

SCREW

$6.49

$

In Stock, Qty 5

0

297

Jonsered 532401827

REFLECTOR.INSERT.PRED.LH.LT

$24.99

$

Usually ships in 3-10 days

0

--

Jonsered 532403704

PLUG.MOUNT.CARGO.BLK

Note: NOT SHOWN

$4.99

$

Usually ships in 3-10 days

0
