LT 2213 A (960410154-00) - Jonsered Lawn Tractor (2010-01) ENGINE Parts Diagram

Lawn Tractor

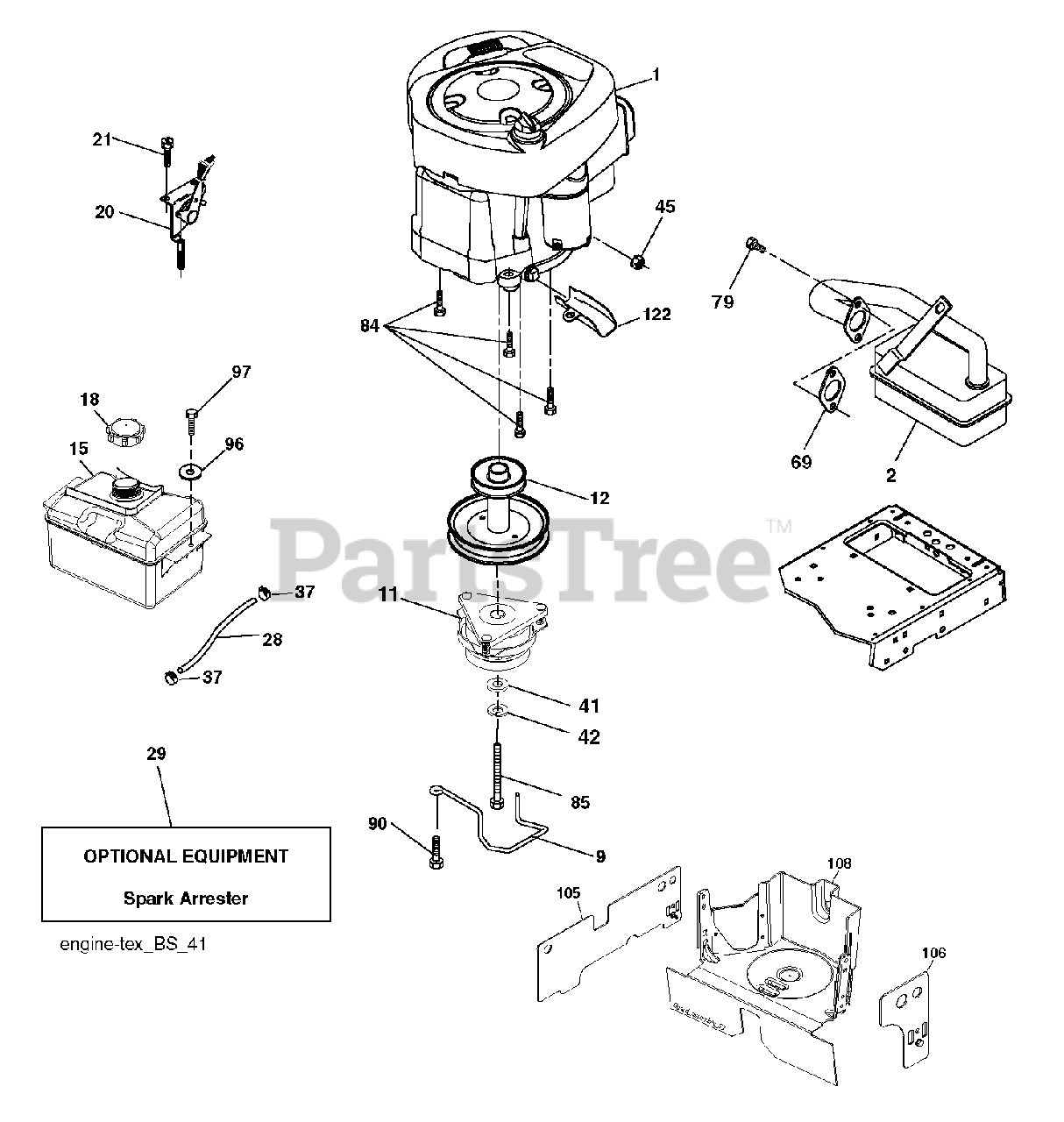

ENGINE Parts Diagram

  • Title

1

Jonsered 000000000

No Description Available

Note: Engine BS Model No 219807-1376-B1

$

$

Not available

2

Jonsered 532179758

MUFFLER

$53.99

$

In Stock, Qty 20+

0

9

Jonsered 532194319

KEEPER.BELT.ENGINE.3.25

$13.99

$

In Stock, Qty 5

0

11

Jonsered 532180505

CLUTCH
(Superseded to 583389701)

$418.99

$

Usually ships in 3-10 days

0

12

Jonsered 532194338

PULLEY.ASM.ENG.OGURA.3

$

$

Not available

15

Jonsered 532407545

TANK FUEL FRT 1.5 GAL
(Superseded to 581289901)

$62.99

$

In Stock, Qty 7

0

18

Jonsered 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$27.99

$

In Stock, Qty 6

0

20

Jonsered 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

$35.99

$

In Stock, Qty 20+

0

21

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 13

0

28

Jonsered 532137040

LINE.FUEL.20
(Superseded to 587044820)

$14.99

$

In Stock, Qty 10

0

29

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$203.99

$

In Stock, only 1 left!

0

37

Jonsered 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 11

0

41

Jonsered 532126197

WASHER

$8.49

$

In Stock, Qty 18

0

42

Jonsered 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

45

Jonsered 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

69

Jonsered 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$14.99

$

Usually ships in 3-10 days

0

79

Jonsered 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

84

Jonsered 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

85

Jonsered 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$3.49

$

In Stock, only 2 left!

0

90

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

96

Jonsered 819091416

WASHER
(Superseded to 596135301)

$3.99

$

In Stock, Qty 6

0

97

Jonsered 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

105

Jonsered 532440674

No Description Available

$

$

Not available

106

Jonsered 532440679

No Description Available

$

$

Not available

108

Jonsered 532431689

No Description Available

$

$

Not available

122

Jonsered 532421922

EXTENSION DRAIN OIL

$31.99

$

In Stock, Qty 6

0
