LT 2213 A (960410154-00) - Jonsered Lawn Tractor (2010-01) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

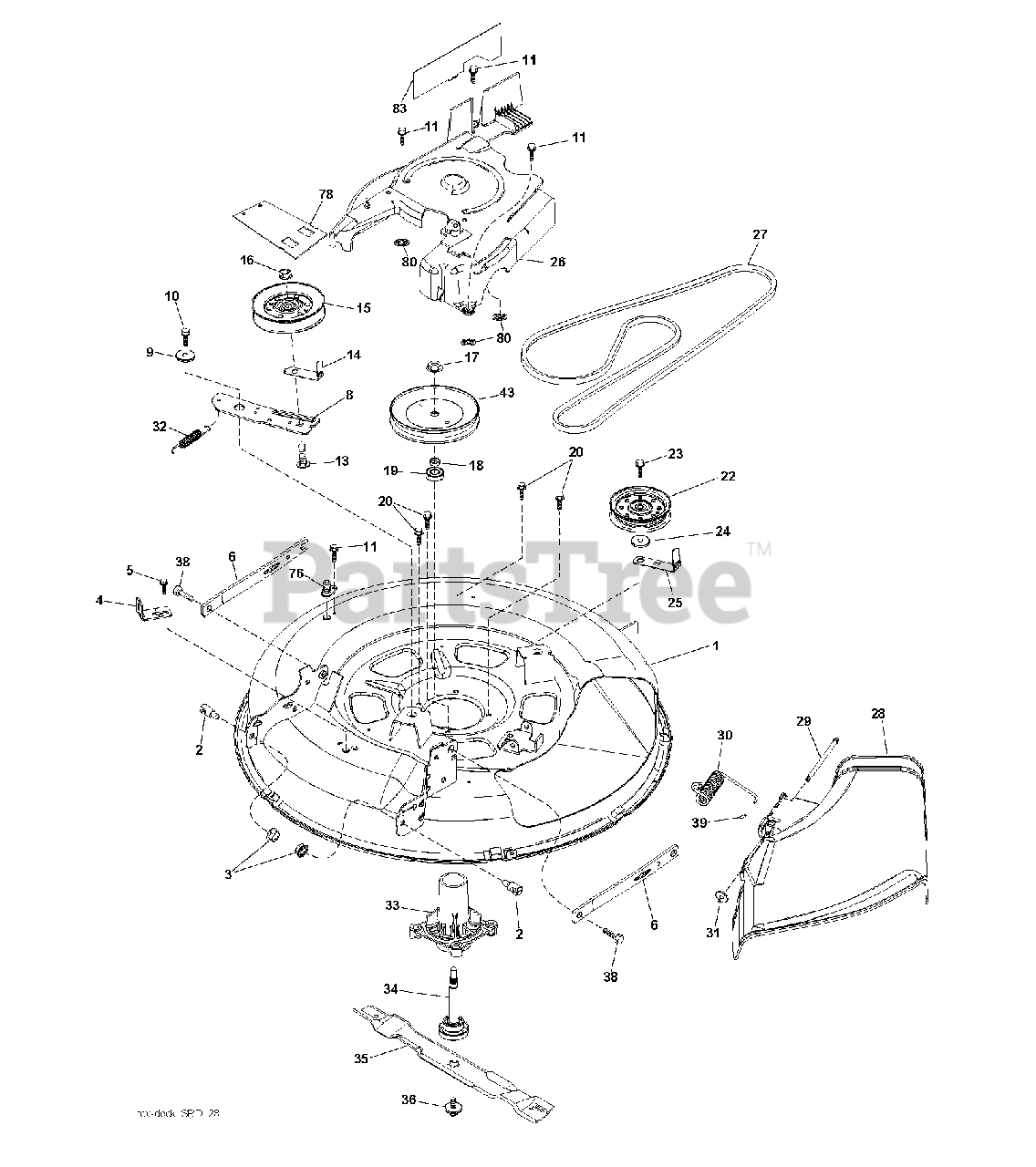

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Jonsered 532419272

No Description Available
(Superseded to 583749801)

$299.99

$

Usually ships in 3-10 days

0

2

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

3

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

4

Jonsered 532417645

No Description Available

$9.99

$

Usually ships in 3-10 days

0

5

Jonsered 817000510

BOLT.5/16HEX.WHS.HD

$5.99

$

In Stock, Qty 19

0

6

Jonsered 532418863

ARMS.SUSP.MOWER.REAR.SRD

$23.99

$

Usually ships in 3-10 days

0

8

Jonsered 532420252

No Description Available
(Superseded to 583379801)

$9.99

$

Usually ships in 3-10 days

0

9

Jonsered 532199092

SPACER.RETAINER

$8.49

$

In Stock, Qty 20+

0

10

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

11

Jonsered 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

13

Jonsered 872110612

BOLT.3/8-16X1.50
(Superseded to 596136101)

$3.99

$

In Stock, Qty 11

0

14

Jonsered 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

15

Jonsered 532146763

PULLEY.IDLER.4.25
(Superseded to 593787801)

$39.99

$

Usually ships in 3-10 days

0

16

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

17

Jonsered 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

18

Jonsered 532187690

WASHER.SPACER.MANDREL

$5.99

$

In Stock, Qty 20+

0

19

Jonsered 532110485

BEARING

$17.99

$

In Stock, Qty 20+

0

20

Jonsered 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.99

$

In Stock, Qty 20+

0

22

Jonsered 532193198

PULLEY.IDLER.FLAT.UNPLATED
(Superseded to 596481402)

$39.99

$

In Stock, only 1 left!

0

23

Jonsered 817490628

SCREW LT
(Superseded to 599972501)

$3.99

$

In Stock, Qty 20+

0

24

Jonsered 819132012

WASHER

$

$

Not available

25

Jonsered 532420253

No Description Available
(Superseded to 529311701)

$5.99

$

Usually ships in 3-10 days

0

26

Jonsered 532432466

No Description Available
(Superseded to 583481101)

$65.99

$

Usually ships in 3-10 days

0

27

Jonsered 532419271

V-BELT.DRIVE.MOWER.30"

$53.99

$

In Stock, Qty 9

0

28

Jonsered 532417344

SHIELD.DEFLECT.MWR.30S.BLACK

$47.99

$

In Stock, only 3 left!

0

29

Jonsered 532420895

No Description Available
(Superseded to 593885101)

$7.49

$

In Stock, only 4 left!

0

30

Jonsered 532197026

SPRING.TORSION.DEFLECT

$11.99

$

In Stock, Qty 20+

0

31

Jonsered 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

32

Jonsered 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$14.99

$

In Stock, Qty 20+

0

33

Jonsered 532187281

HOUSING MANDREL
(Superseded to 587819701)

$71.99

$

In Stock, Qty 20+

0

34

Jonsered 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$71.99

$

In Stock, Qty 20+

0

35

Jonsered 532419274

BLADE.MOWER.BAGGING.30"

$45.99

$

In Stock, Qty 20+

0

36

Jonsered 532193003

BOLT.WASHER.ASM.7/16-2

$9.49

$

In Stock, Qty 20+

0

38

Jonsered 532196539

BOLT.SHOULDER

$1.49

$

In Stock, Qty 20+

0

39

Jonsered 532105304

CAP-SLEEVE LT

$3.99

$

In Stock, Qty 20+

0

43

Jonsered 532416877

PULLEY, MANDREL 6.5 PD
(Superseded to 525568002)

$33.99

$

Usually ships in 3-10 days

0

76

Jonsered 532415598

PORT.WASHOUT

$8.49

$

In Stock, Qty 20+

0

78

Jonsered 532422566

No Description Available

$

$

Not available

80

Jonsered 532423062

PALNUT 1/4

$3.49

$

In Stock, only 2 left!

0

83

Jonsered 532432467

No Description Available

$

$

Not available

--

Jonsered 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: NOT SHOWN

$71.99

$

In Stock, Qty 20+

0

--

Jonsered 532432948

No Description Available

Note: NOT SHOWN

$

$

Not available
