LT 2216 A2 (960410037-00) - Jonsered Lawn Tractor (2007-03) DRIVE Parts Diagram

Lawn Tractor

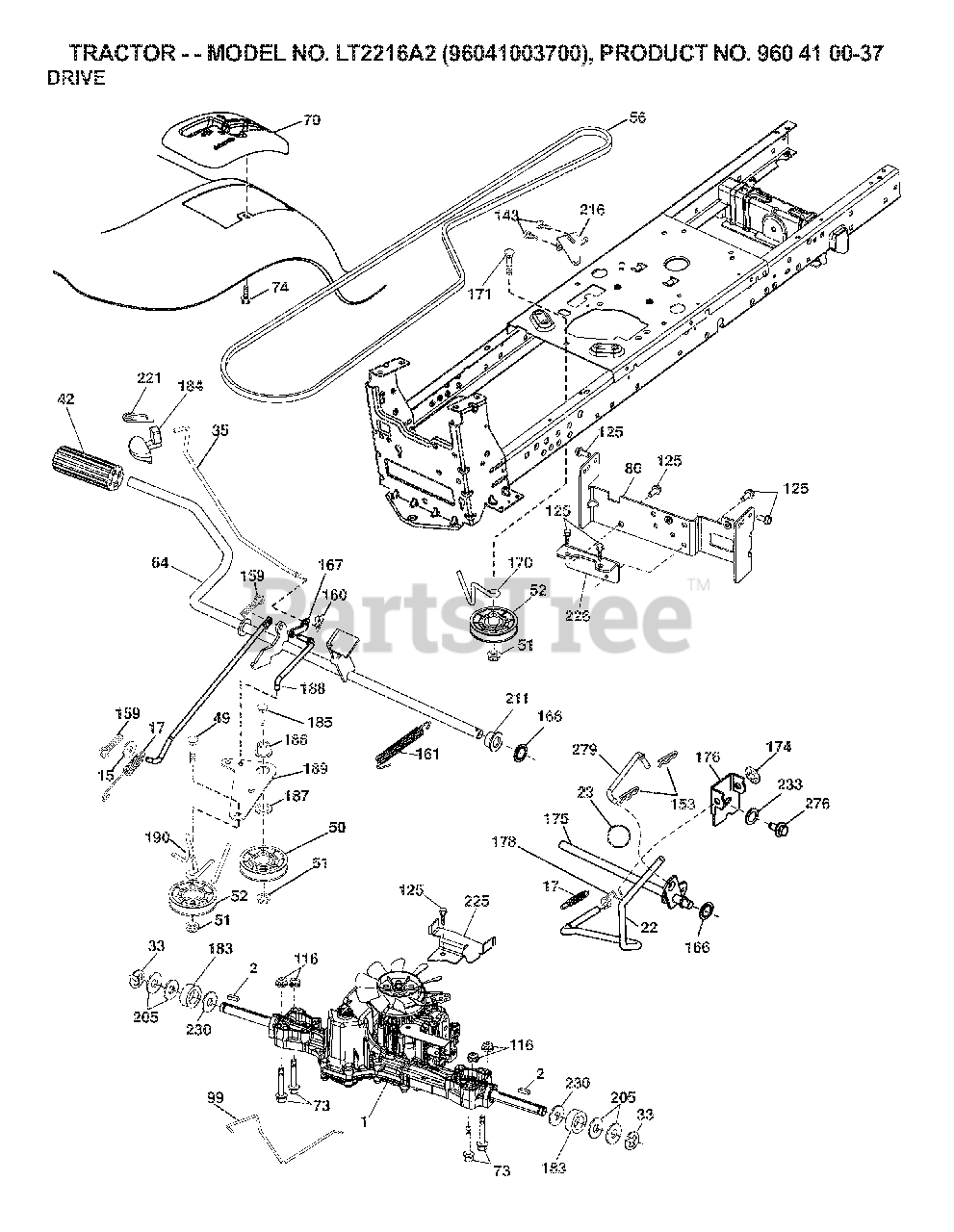

DRIVE Parts Diagram

  • Title

1

Jonsered 532408214

TRANSAXLE.K46A
(Superseded to 532448348)

$

$

Not available

2

Jonsered 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 20+

0

15

Jonsered 819131316

WASHER

$4.99

$

In Stock, only 3 left!

0

17

Jonsered 532413678

SPRING.BRAKE.K46.GREEN

$7.99

$

In Stock, Qty 16

0

22

Jonsered 532197660

ROD.SHIFT.FENDER.TLT.2006

$159.99

$

Usually ships in 3-10 days

0

23

Jonsered 532130564

PISTOL KNOB

$

$

Not available

29

Jonsered 532403806

ROD.BRAKE.K46

$22.99

$

Usually ships in 3-10 days

0

33

Jonsered 812000001

E-RING LT

$3.49

$

In Stock, Qty 18

0

35

Jonsered 532197722

ROD.BRAKE.PARKING.LT.T

$79.99

$

Usually ships in 3-10 days

0

42

Jonsered 532124872

PEDAL COVER T
(Superseded to 510089501)

$6.99

$

In Stock, only 2 left!

0

49

Jonsered 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, Qty 7

0

50

Jonsered 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 20+

0

51

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

52

Jonsered 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

In Stock, Qty 20+

0

56

Jonsered 532130969

V-BELT

$

$

Not available

64

Jonsered 532196200

SHAFT.ASM.PEDAL.BRAKE.

$62.99

$

Usually ships in 3-10 days

0

70

Jonsered 532411329

CONSOLE.SHIFT.STL.HYD.BLACK

$20.99

$

Usually ships in 3-10 days

0

73

Jonsered 874490544

BOLT HEX 5/16-18 GR 5
(Superseded to 595316601)

$4.99

$

Usually ships in 3-10 days

0

74

Jonsered 532142432

SCREW.HI-LO.CONSOLE
(Superseded to 596134101)

$3.49

$

In Stock, Qty 19

0

80

Jonsered 532404483

STRAP.TORQUE.HG3000/K46

$

$

Not available

99

Jonsered 532405903

ROD ASM BYPASS
(Superseded to 532415742)

$9.49

$

In Stock, Qty 6

0

116

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.49

$

In Stock, Qty 13

0

125

Jonsered 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 11

0

143

Jonsered 817490508

SCREW LT
(Superseded to 539990858)

$

$

Not available

153

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$4.99

$

In Stock, only 3 left!

0

159

Jonsered 876020412

COTTER PIN
(Superseded to 596029501)

$3.49

$

In Stock, Qty 5

0

160

Jonsered 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, Qty 9

0

161

Jonsered 532195403

SPRING.RETURN.CLUTCH.2006
(Superseded to 532105709)

$13.99

$

In Stock, Qty 17

0

166

Jonsered 532197290

NUT.PUSH.625.2006
(Superseded to 532429164)

$4.99

$

In Stock, Qty 6

0

167

Jonsered 532405257

LATCH.BRAKE.SPRING
(Superseded to 531152901)

$3.49

$

In Stock, Qty 8

0

170

Jonsered 532194322

KEEPER.V-IDLER.CENTER.

$6.99

$

In Stock, Qty 6

0

171

Jonsered 872110616

BOLT
(Superseded to 596136301)

$3.49

$

In Stock, only 2 left!

0

174

Jonsered 532197289

NUT.PUSH.500.2006

$3.49

$

In Stock, only 1 left!

0

175

Jonsered 532406208

SHAFT ASM SHIFT

$31.99

$

Usually ships in 3-10 days

0

176

Jonsered 532196214

ARM.CLEVIS.ROD.SHIFT

$7.99

$

Usually ships in 3-10 days

0

178

Jonsered 532197456

SPRING.SHIFT.GT2006

$5.99

$

Usually ships in 3-10 days

0

183

Jonsered 532137057

SPACER AXLE

$6.99

$

In Stock, only 1 left!

0

184

Jonsered 532411289

HANDLE.PAKRING.BRAKE.
(Superseded to 532198403)

$

$

Not available

185

Jonsered 872110620

BOLT
(Superseded to 596435101)

$3.49

$

In Stock, only 2 left!

0

186

Jonsered 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 20+

0

187

Jonsered 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 18

0

188

Jonsered 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, only 4 left!

0

189

Jonsered 532194317

BELLCRANK.GROUND.DRIVE.TEX.
(Superseded to 531169001)

$7.99

$

In Stock, only 3 left!

0

190

Jonsered 532194318

KEEPER.BELLCRANK.DRIVE

$6.99

$

In Stock, only 3 left!

0

205

Jonsered 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

211

Jonsered 532196212

BUSHING.SHAFT.BRAKE.HAND

$6.99

$

Usually ships in 3-10 days

0

216

Jonsered 532196131

BRACKET.PULLEY.IDLER.W/TEX

$7.99

$

In Stock, only 2 left!

0

221

Jonsered 532403187

RETAINER.SPRING.CLIP.H

$4.99

$

In Stock, only 2 left!

0

225

Jonsered 532403319

KEEPER.BELT.TRANSAXLE.K46
(Superseded to 531149001)

$6.99

$

In Stock, only 4 left!

0

226

Jonsered 532401564

BRACKET.MOUNT.TORQUE.K46.TLT
(Superseded to 531170501)

$5.99

$

In Stock, only 3 left!

0

230

Jonsered 532188967

WASHER.HARDENED

$2.49

$

In Stock, Qty 20+

0

233

Jonsered 532405296

WASHER SERRATED
(Superseded to 596135201)

$3.49

$

Usually ships in 3-10 days

0

276

Jonsered 874780716

BOLT FIN HEX 7/16-14 X 1
(Superseded to 596238601)

$3.49

$

In Stock, only 2 left!

0

279

Jonsered 532406207

LINK SHIFT

$13.99

$

Usually ships in 3-10 days
