LT 2216 CMA2 (960610245-00) - Jonsered Lawn Tractor (2009-01) ENGINE Parts Diagram

Lawn Tractor

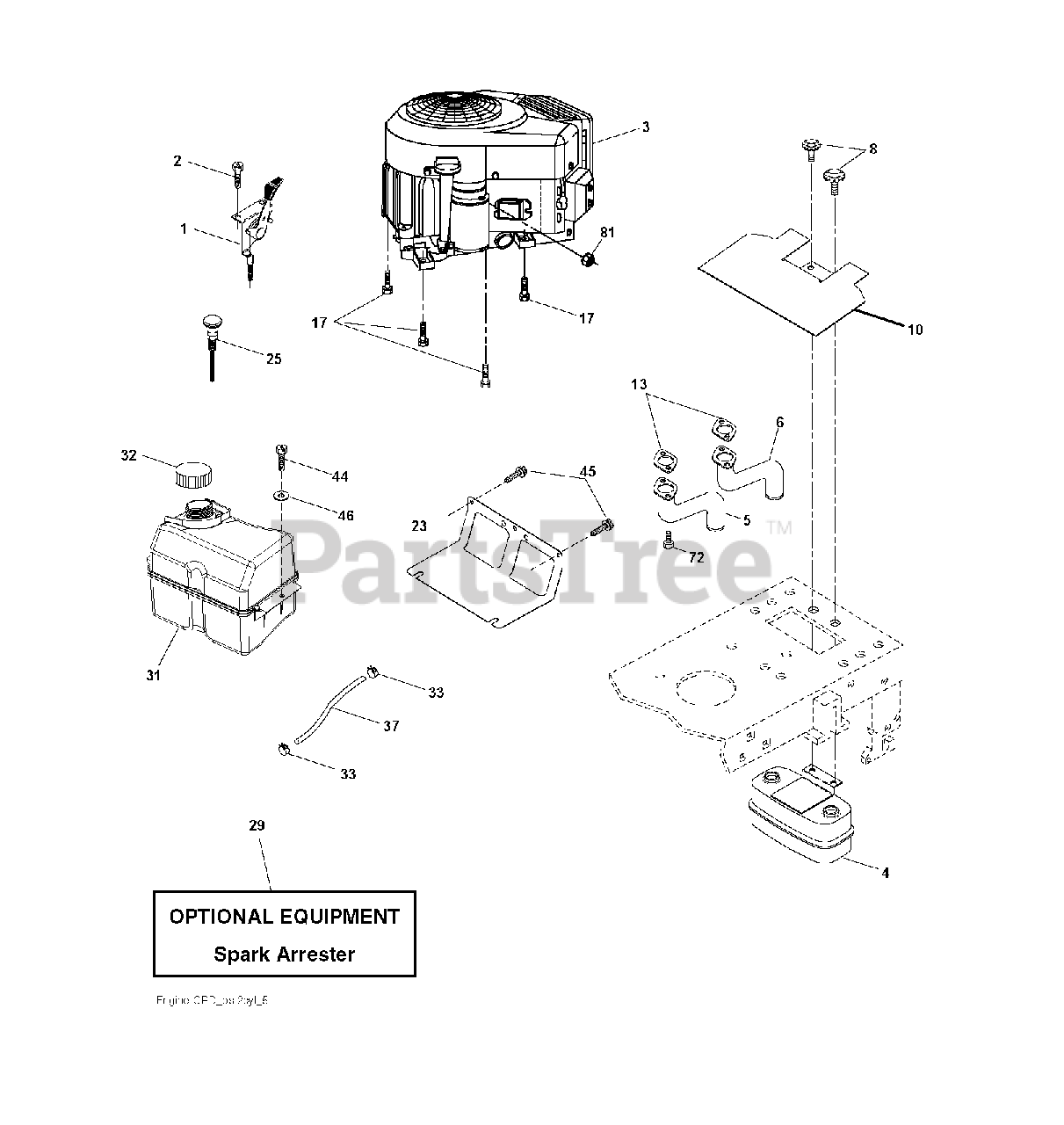

ENGINE Parts Diagram

  • Title

1

Jonsered 532170771

CONTROL, THROTTLE

$

$

Not available

2

Jonsered 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

3

Jonsered TBD

No Description Available

$

$

Not available

4

Jonsered 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

In Stock, Qty 5

0

5

Jonsered 532159955

TUBE MANIFOLD LH
(Superseded to 581881101)

$44.99

$

In Stock, only 4 left!

0

6

Jonsered 532160589

EXHAUST TUBE RH
(Superseded to 581881001)

$31.99

$

In Stock, only 3 left!

0

8

Jonsered 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 5

0

10

Jonsered 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

13

Jonsered 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 14

0

23

Jonsered 532169837

SHEILD.BROWNING.DBR.GUARD

$10.99

$

Usually ships in 3-10 days

0

25

Jonsered 532191812

No Description Available

$

$

Not available

29

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$182.99

$

In Stock, only 1 left!

0

31

Jonsered 532407551

No Description Available

$

$

Not available

32

Jonsered 532197725

FUEL CAP
(Superseded to 581075501)

$26.99

$

In Stock, Qty 5

0

33

Jonsered 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 16

0

37

Jonsered 532137040

LINE.FUEL.20

$6.49

$

Usually ships in 3-10 days

0

44

Jonsered 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

45

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

46

Jonsered 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

72

Jonsered 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

78

Jonsered 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

81

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available
