LT 2217 CMA (960610239-00) - Jonsered Lawn Tractor (2009-01) ENGINE Parts Diagram

Lawn Tractor

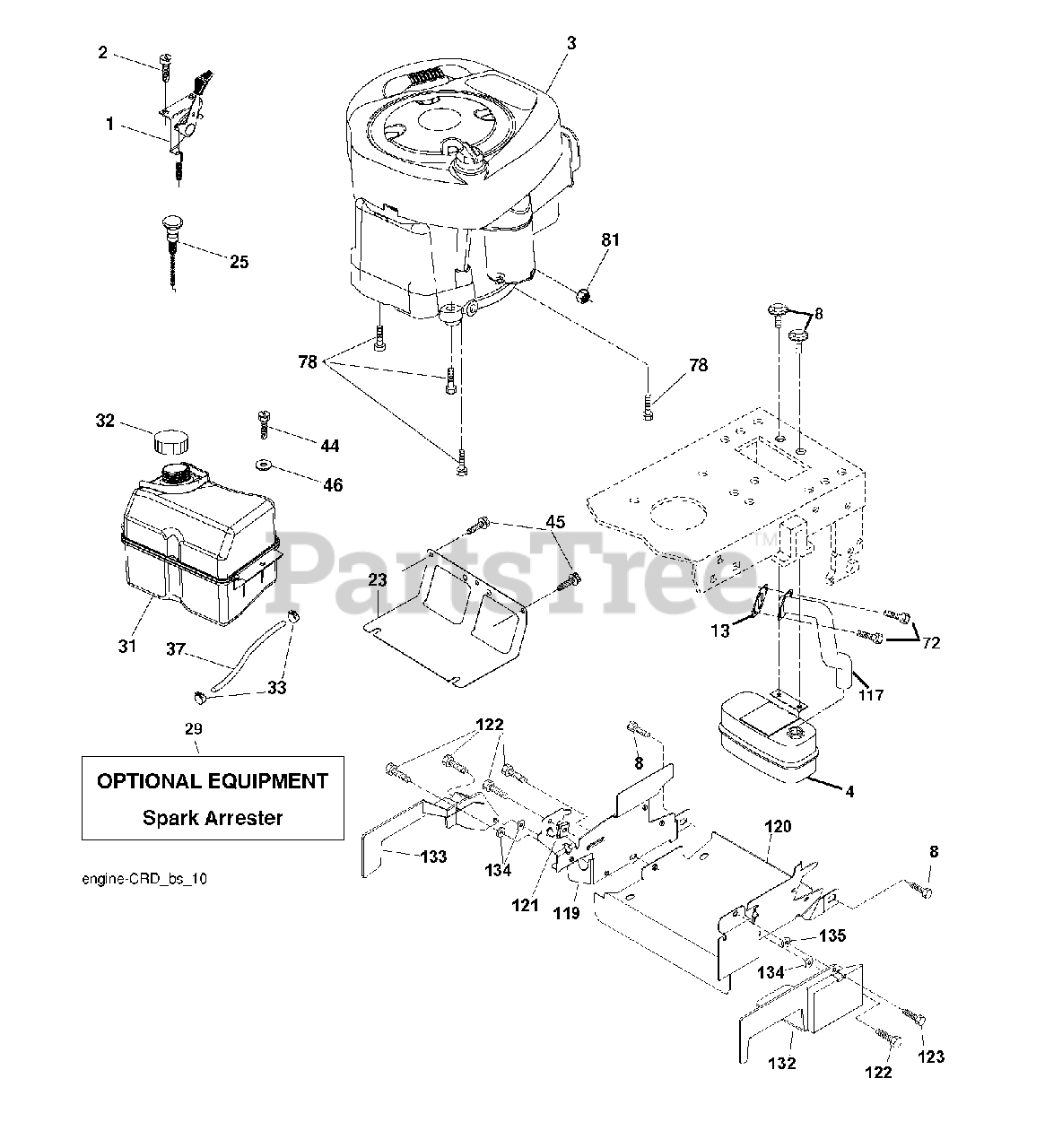

ENGINE Parts Diagram

  • Title

1

Jonsered 532170551

CONTROL TH/CH FLAG

$

$

Not available

2

Jonsered 817720408

SCREW
(Superseded to 596437001)

$3.49

$

In Stock, Qty 9

0

3

Jonsered TBD

No Description Available

$

$

Not available

4

Jonsered 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$51.99

$

In Stock, Qty 8

0

8

Jonsered 532171877

BOLT, 5/16-18 X 1 3/4

$5.99

$

In Stock, only 2 left!

0

13

Jonsered 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$13.99

$

Usually ships in 3-10 days

0

23

Jonsered 532169837

SHEILD.BROWNING.DBR.GUARD
(Superseded to 531150701)

$26.99

$

In Stock, Qty 7

0

25

Jonsered 532190695

No Description Available

$

$

Not available

29

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$193.99

$

In Stock, only 1 left!

0

31

Jonsered 532407551

No Description Available

$

$

Not available

32

Jonsered 532197725

FUEL CAP
(Superseded to 581075501)

$26.99

$

In Stock, Qty 7

0

33

Jonsered 532123487

HOSE CLAMP

$3.99

$

In Stock, only 4 left!

0

37

Jonsered 532137040

LINE.FUEL.20
(Superseded to 587044820)

$13.99

$

In Stock, Qty 10

0

44

Jonsered 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

45

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

46

Jonsered 819091416

WASHER
(Superseded to 596135301)

$3.49

$

In Stock, Qty 6

0

72

Jonsered 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.49

$

In Stock, Qty 20+

0

78

Jonsered 817060620

SCREW.3/8-16

$6.99

$

In Stock, Qty 9

0

81

Jonsered 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

117

Jonsered 532405450

EXHAUST.TUBE.B&S.
(Superseded to 581880901)

$26.99

$

In Stock, only 2 left!

0

119

Jonsered 532199768

No Description Available
(Superseded to 583254301)

$

$

Not available

120

Jonsered 532199767

No Description Available
(Superseded to 583254201)

$

$

Not available

121

Jonsered 532196688

CLIPS

$3.49

$

In Stock, only 3 left!

0

122

Jonsered 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

123

Jonsered 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0

132

Jonsered 532420757

No Description Available

$

$

Not available

133

Jonsered 532420756

No Description Available

$

$

Not available

134

Jonsered 532423062

PALNUT 1/4

$3.49

$

Usually ships in 3-10 days

0

135

Jonsered 532423063

No Description Available
(Superseded to 583400601)

$3.49

$

Usually ships in 3-10 days

0
