LT 2218 A (960410036-01) - Jonsered Lawn Tractor (2007-10) ENGINE Parts Diagram

Lawn Tractor

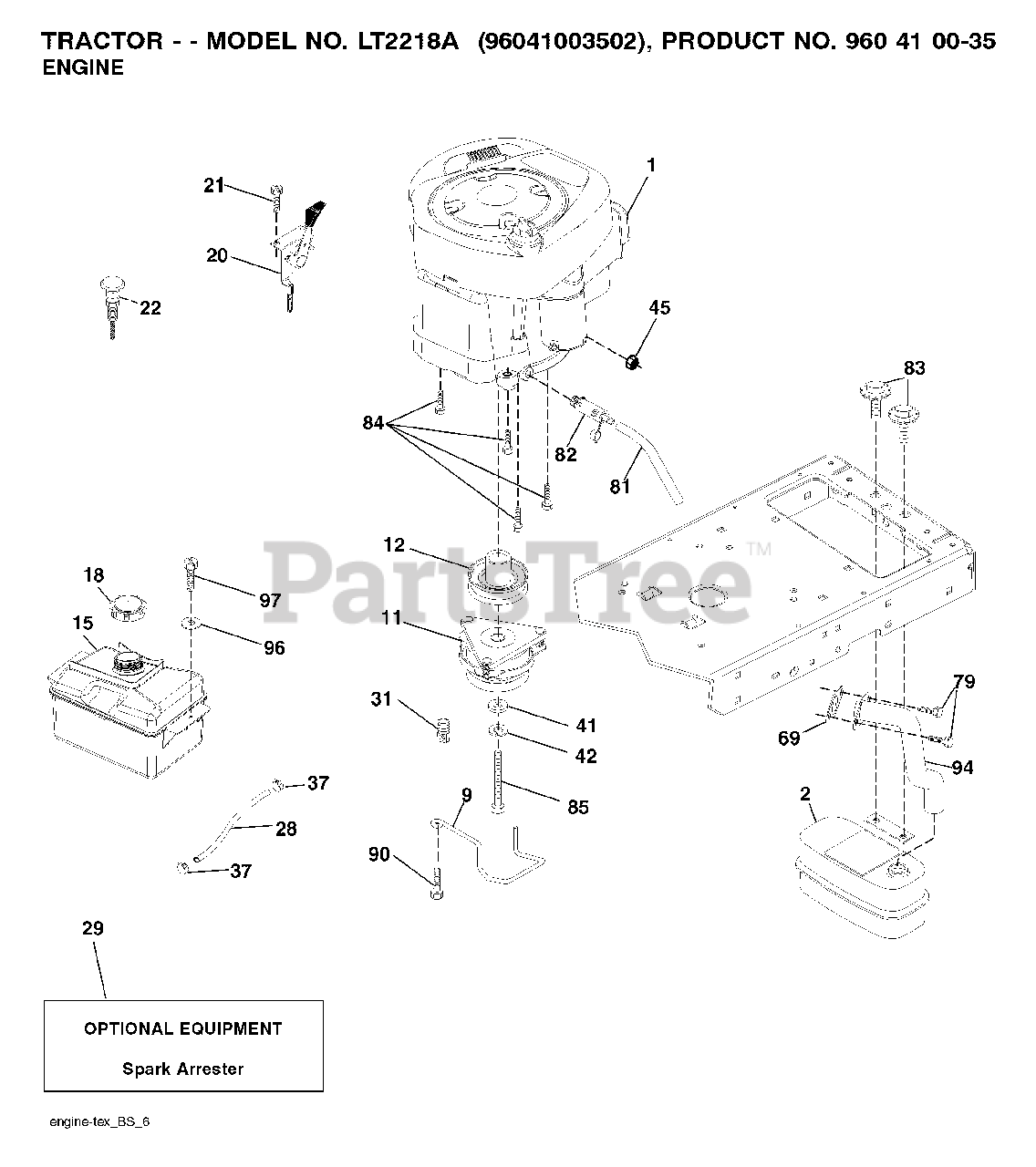

ENGINE Parts Diagram

  • Title

2

Jonsered 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$51.99

$

In Stock, Qty 8

0

9

Jonsered 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 596501502)

$13.99

$

In Stock, only 3 left!

0

11

Jonsered 532180505

CLUTCH
(Superseded to 583389701)

$398.99

$

Usually ships in 3-10 days

0

12

Jonsered 532405097

PULLEY.ENGINE.TUFFTORQ

$62.99

$

In Stock, only 2 left!

0

15

Jonsered 532407552

FUEL TANK FRT 2 GAL.
(Superseded to 532430825)

$62.99

$

Usually ships in 3-10 days

0

18

Jonsered 532197725

FUEL CAP
(Superseded to 581075501)

$26.99

$

In Stock, Qty 7

0

20

Jonsered 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

$34.99

$

Usually ships in 3-10 days

0

21

Jonsered 532191611

SCREW
(Superseded to 532416358)

$3.49

$

In Stock, Qty 15

0

22

Jonsered 532194981

No Description Available
(Superseded to 532194977)

$

$

Not available

28

Jonsered 532137040

LINE.FUEL.20
(Superseded to 587044820)

$13.99

$

In Stock, Qty 10

0

29

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$193.99

$

In Stock, only 1 left!

0

31

Jonsered 532145006

PUSH CLIP

$3.49

$

In Stock, Qty 11

0

37

Jonsered 532123487

HOSE CLAMP

$3.99

$

In Stock, only 4 left!

0

41

Jonsered 532126197

WASHER

$7.99

$

In Stock, only 3 left!

0

42

Jonsered 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, Qty 17

0

45

Jonsered 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

69

Jonsered 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$13.99

$

Usually ships in 3-10 days

0

79

Jonsered 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.49

$

In Stock, Qty 20+

0

81

Jonsered 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 10

0

82

Jonsered 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$20.99

$

In Stock, Qty 7

0

83

Jonsered 532171877

BOLT, 5/16-18 X 1 3/4

$5.99

$

In Stock, only 2 left!

0

84

Jonsered 817060620

SCREW.3/8-16

$6.99

$

In Stock, Qty 9

0

85

Jonsered 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$3.49

$

In Stock, Qty 14

0

90

Jonsered 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 11

0

94

Jonsered 532405450

EXHAUST.TUBE.B&S.
(Superseded to 581880901)

$26.99

$

In Stock, only 2 left!

0

96

Jonsered 819091416

WASHER
(Superseded to 596135301)

$3.49

$

In Stock, Qty 6

0

97

Jonsered 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

102

Jonsered 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 11

0

105

Jonsered 532410528

No Description Available

$

$

Not available

106

Jonsered 532410529

No Description Available

$

$

Not available

107

Jonsered 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

108

Jonsered 532410532

No Description Available

$

$

Not available
