LT 2223 A2 (960410110-00) - Jonsered Lawn Tractor (2009-01) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

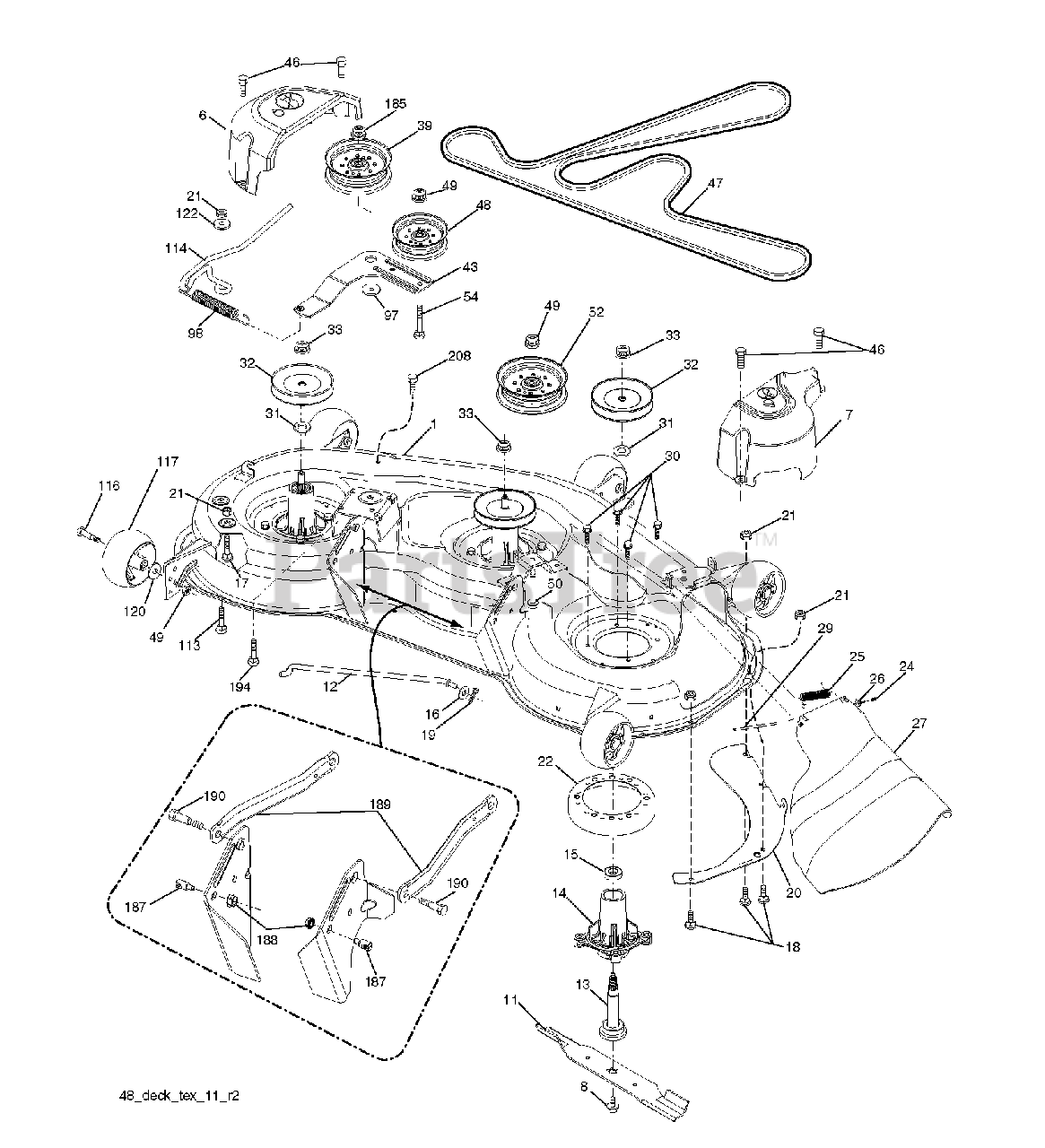

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Jonsered 532197216

DECK.WELDMENT.48"2006
(Superseded to 532401239)

$605.99

$

Usually ships in 3-10 days

0

6

Jonsered 532197248

COVER.MANDREL.LH.48"

$34.99

$

Usually ships in 3-10 days

0

7

Jonsered 532199102

COVER.MANDREL.RH.48"
(Superseded to 587452401)

$9.99

$

In Stock, only 2 left!

0

8

Jonsered 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

In Stock, Qty 20+

0

11

Jonsered 532180054

48" HI-LIFT BLADE

$15.99

$

In Stock, Qty 20+

0

12

Jonsered 532404851

ROD.ANTI.SWAY.48/54"K4

$26.99

$

In Stock, Qty 20+

0

13

Jonsered 532187291

SHAFT ASM MANDREL
(Superseded to 597023501)

$25.99

$

In Stock, Qty 20+

0

14

Jonsered 532187281

HOUSING MANDREL
(Superseded to 587819701)

$47.99

$

In Stock, Qty 20+

0

15

Jonsered 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

16

Jonsered 819131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

17

Jonsered 872110505

BOLT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

18

Jonsered 872140505

BOLT
(Superseded to 596136401)

$3.99

$

Usually ships in 3-10 days

0

19

Jonsered 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

In Stock, Qty 20+

0

20

Jonsered 532174378

BAFFLE, VORTEX MWR

$14.99

$

In Stock, Qty 18

0

21

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Jonsered 532174493

STRIPPER, MWR ROUND

$7.49

$

Usually ships in 3-10 days

0

24

Jonsered 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Jonsered 532178102

SPRING, TORSION
(Superseded to 539107609)

$4.99

$

In Stock, Qty 20+

0

26

Jonsered 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

27

Jonsered 532181707

DEFLECTOR SUBS TO 532 180655
(Superseded to 532180655)

$42.99

$

In Stock, Qty 20+

0

29

Jonsered 532131491

ROD.HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

30

Jonsered 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

31

Jonsered 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

32

Jonsered 532153532

PULLEY MANDREL
(Superseded to 532173435)

$10.99

$

In Stock, Qty 20+

0

33

Jonsered 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

39

Jonsered 532197380

PULLEY.IDLER.4.50/HUB SPECIAL
(Superseded to 532196104)

$34.99

$

In Stock, Qty 20+

0

43

Jonsered 532196065

ARM.IDLER

$15.99

$

Usually ships in 3-10 days

0

46

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

47

Jonsered 532197242

BELT.DRIVE.DECK
(Superseded to 593773401)

$54.99

$

In Stock, Qty 20+

0

48

Jonsered 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$24.99

$

In Stock, Qty 20+

0

49

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

50

Jonsered 817490636

SCREW TT 3/8-16X2-1/4 UNC

$

$

Currently unavailable

52

Jonsered 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$24.99

$

In Stock, Qty 20+

0

54

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

97

Jonsered 532178515

WASHER

$6.49

$

In Stock, Qty 20+

0

98

Jonsered 532196105

SPRING, DECK DRIVE

$7.49

$

In Stock, Qty 20+

0

113

Jonsered 872110508

BOLT CRT

$4.99

$

Usually ships in 3-10 days

0

114

Jonsered 532197451

ROD.TENSION.RELIEF.TEX

$18.99

$

In Stock, only 1 left!

0

116

Jonsered 532193406

BOLT.SHOULDER.3/8-16X3-5/8
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

117

Jonsered 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$4.99

$

In Stock, Qty 20+

0

120

Jonsered 819132012

WASHER

$1.99

$

Usually ships in 3-10 days

0

122

Jonsered 532187557

BUSHING.RELIEF.TENSION

$6.49

$

In Stock, only 1 left!

0

185

Jonsered 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 20+

0

187

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

188

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

189

Jonsered 532195185

ARM.SUSPENSION.MOWER

$18.99

$

Usually ships in 3-10 days

0

190

Jonsered 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

194

Jonsered 872140716

BOLT.CARR.SQNK.7/16
(Superseded to 874490736)

$13.99

$

In Stock, Qty 13

0

208

Jonsered 817670608

SCREW 3/8-16X1/2

$6.49

$

In Stock, only 2 left!

0

--

Jonsered 532187292

MANDREL ASM. SERVICE
(Superseded to 587820301)

$44.99

$

In Stock, Qty 20+

0

--

Jonsered 532199859

No Description Available
(Superseded to 583255101)

$1030.99

$

Usually ships in 3-10 days

0
