LT 2223 A2 (960410110-03) - Jonsered Lawn Tractor (2010-08) ENGINE Parts Diagram

Lawn Tractor

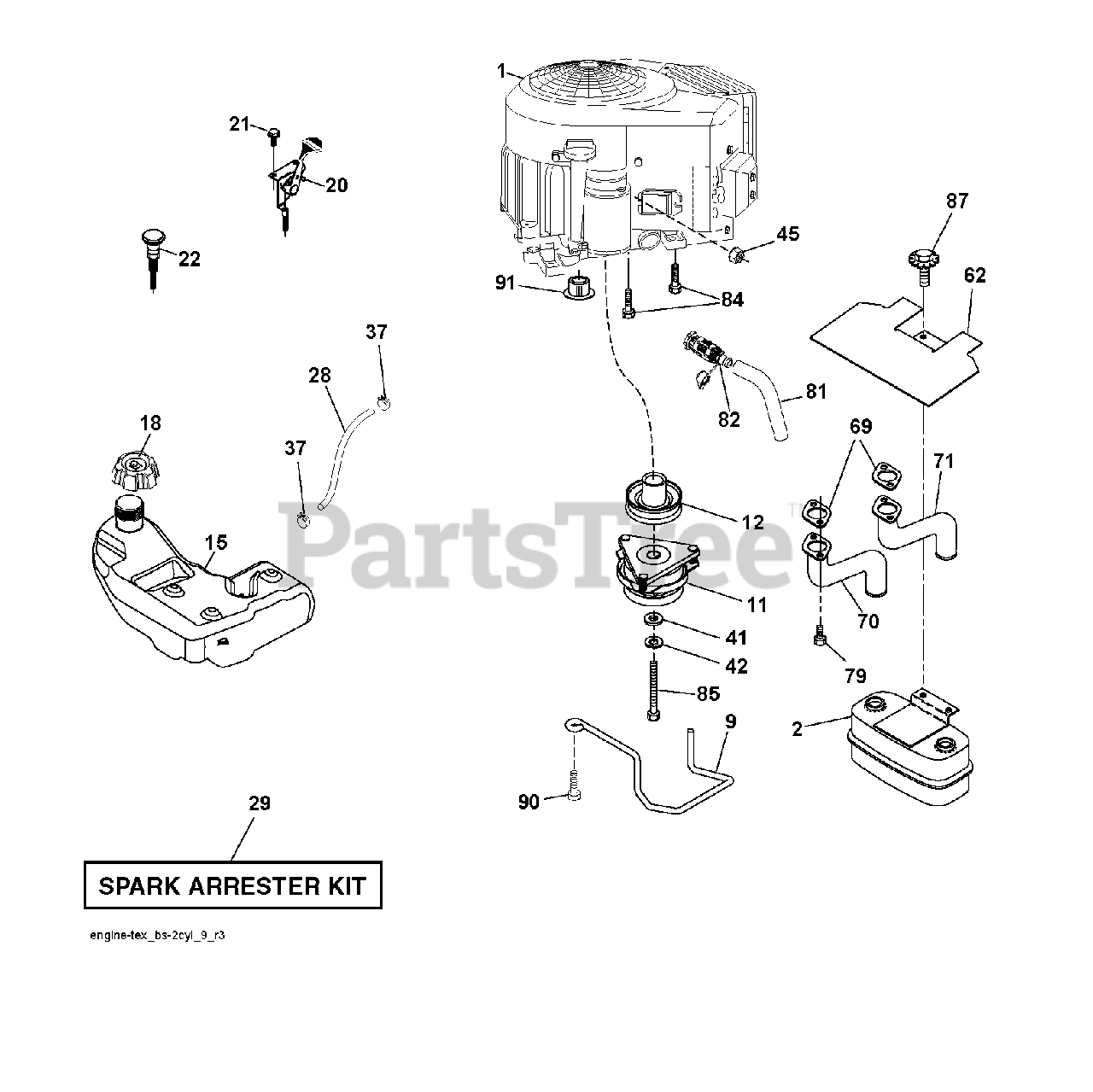

ENGINE Parts Diagram

  • Title

1

Jonsered 000000000

No Description Available

Note: BRIGGS 445577-1318-B1

$

$

Not available

2

Jonsered 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

In Stock, Qty 5

0

9

Jonsered 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 596501502)

$7.49

$

In Stock, Qty 9

0

11

Jonsered 532179335

CLUTCH ELECTRIC
(Superseded to 532414737)

$338.99

$

In Stock, Qty 20+

0

12

Jonsered 532194343

PULLEY ENGINE

$74.99

$

In Stock, only 2 left!

0

15

Jonsered 532193499

TANK.FUEL.4GAL

$145.99

$

Usually ships in 3-10 days

0

18

Jonsered 532430218

CAP.ASM.FUEL.TANK.3"BLACK
(Superseded to 584248701)

$12.99

$

Usually ships in 3-10 days

0

20

Jonsered 532178385

THROTTLE CABLE
(Superseded to 532175437)

$44.99

$

In Stock, only 3 left!

0

21

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 20+

0

22

Jonsered 532191596

CONTROL CHOKE

$40.99

$

In Stock, only 4 left!

0

28

Jonsered 532137040

LINE.FUEL.20

$6.49

$

Usually ships in 3-10 days

0

29

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$182.99

$

In Stock, only 1 left!

0

37

Jonsered 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 16

0

41

Jonsered 532126197

WASHER

$8.99

$

In Stock, Qty 20+

0

42

Jonsered 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

45

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

62

Jonsered 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Jonsered 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 16

0

70

Jonsered 532159955

TUBE MANIFOLD LH
(Superseded to 581881101)

$44.99

$

In Stock, only 4 left!

0

71

Jonsered 532160589

EXHAUST TUBE RH
(Superseded to 581881001)

$31.99

$

In Stock, only 3 left!

0

79

Jonsered 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

81

Jonsered 532148456

TUBE, DRAIN OIL ASM.

$4.99

$

In Stock, Qty 18

0

82

Jonsered 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, Qty 14

0

84

Jonsered 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

85

Jonsered 532179953

BOLT HEX 7/16-20 X 3.75 GR. 5

$7.49

$

Usually ships in 3-10 days

0

87

Jonsered 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 5

0

90

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 8

0

91

Jonsered 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 2 left!

0
