LT 2227 A2 (960410071-00) - Jonsered Lawn Tractor (2008-02) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

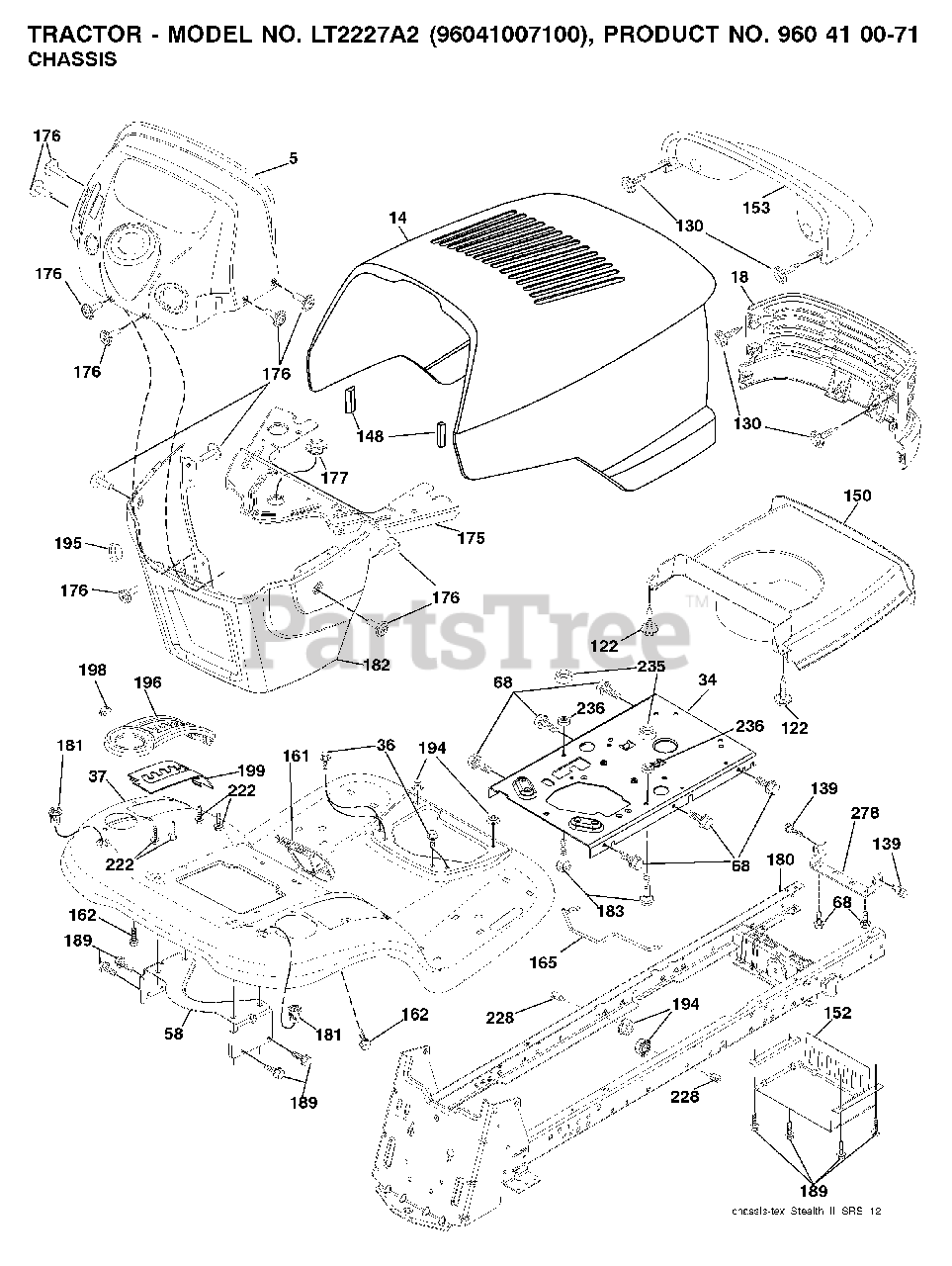

CHASSIS ENCLOSURES Parts Diagram

  • Title

5

Jonsered 532411410

No Description Available

$3.99

$

Usually ships in 3-10 days

0

14

Jonsered 532181351

No Description Available
(Superseded to 532181273)

$30.99

$

Usually ships in 3-10 days

0

18

Jonsered 532181352

No Description Available

$

$

Not available

34

Jonsered 532196125

PLATE.ENGINE.WELDED.CHASSIS
(Superseded to 580910801)

$49.99

$

Usually ships in 3-10 days

0

36

Jonsered 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

37

Jonsered 532411877

No Description Available

$

$

Not available

58

Jonsered 532194314

BRKT.SUPPORT.FNDR/TANK

$27.99

$

Usually ships in 3-10 days

0

68

Jonsered 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

122

Jonsered 532192512

SCREW.WSHD.HEX10-32X5/8

$4.99

$

Usually ships in 3-10 days

0

130

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 20+

0

139

Jonsered 532171873

BOLT, SHOULDER 5/16-18
(Superseded to 532179032)

$6.99

$

Usually ships in 3-10 days

0

148

Jonsered 532164655

EXTRUSION BUMPER

$8.99

$

Usually ships in 3-10 days

0

150

Jonsered 532175351

DUCT HOOD

$40.99

$

Usually ships in 3-10 days

0

152

Jonsered 532199535

SHIELD BROWNING

$

$

Not available

153

Jonsered 532179761

No Description Available

$

$

Not available

161

Jonsered 532411879

CONSOLE.FUEL.WINDOW.STGT.BLACK

$8.99

$

Usually ships in 3-10 days

0

162

Jonsered 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

165

Jonsered 532196826

SUPPORT.TANK.REAR.W/TE

$24.99

$

Usually ships in 3-10 days

0

175

Jonsered 532193236

CROSSMEMBER.

$34.99

$

Usually ships in 3-10 days

0

176

Jonsered 532400776

SCREW.#10-24X5/8.RN.QU

$11.99

$

In Stock, Qty 5

0

177

Jonsered 532195227

BUSHING,STEERING

$6.49

$

In Stock, Qty 20+

0

180

Jonsered 532195477

CHASSIS.GT.SLOPED.DRAWBAR.
(Superseded to 582033001)

$265.99

$

Usually ships in 3-10 days

0

181

Jonsered 532404796

FEND/FTRST.PCH.CPH.NFW
(Superseded to 532403025)

$

$

Not available

182

Jonsered 532192551

DASH.LOWER.

$60.99

$

Usually ships in 3-10 days

0

183

Jonsered 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

189

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

194

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

195

Jonsered 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$6.49

$

Usually ships in 3-10 days

0

196

Jonsered 532411880

No Description Available

$

$

Not available

198

Jonsered 532411881

INDICATOR DECK LIFT
(Superseded to 532441552)

$15.99

$

Usually ships in 3-10 days

0

199

Jonsered 532196377

PLATE DECK LIFT

$24.99

$

Usually ships in 3-10 days

0

222

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

228

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

Jonsered 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Jonsered 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 2 left!

0

278

Jonsered 532196394

BRKT.HOOD/MUFF.STEALTH

$9.99

$

Usually ships in 3-10 days

0
