LT 2227 A2 (960410071-00) - Jonsered Lawn Tractor (2008-02) DRIVE Parts Diagram

Lawn Tractor

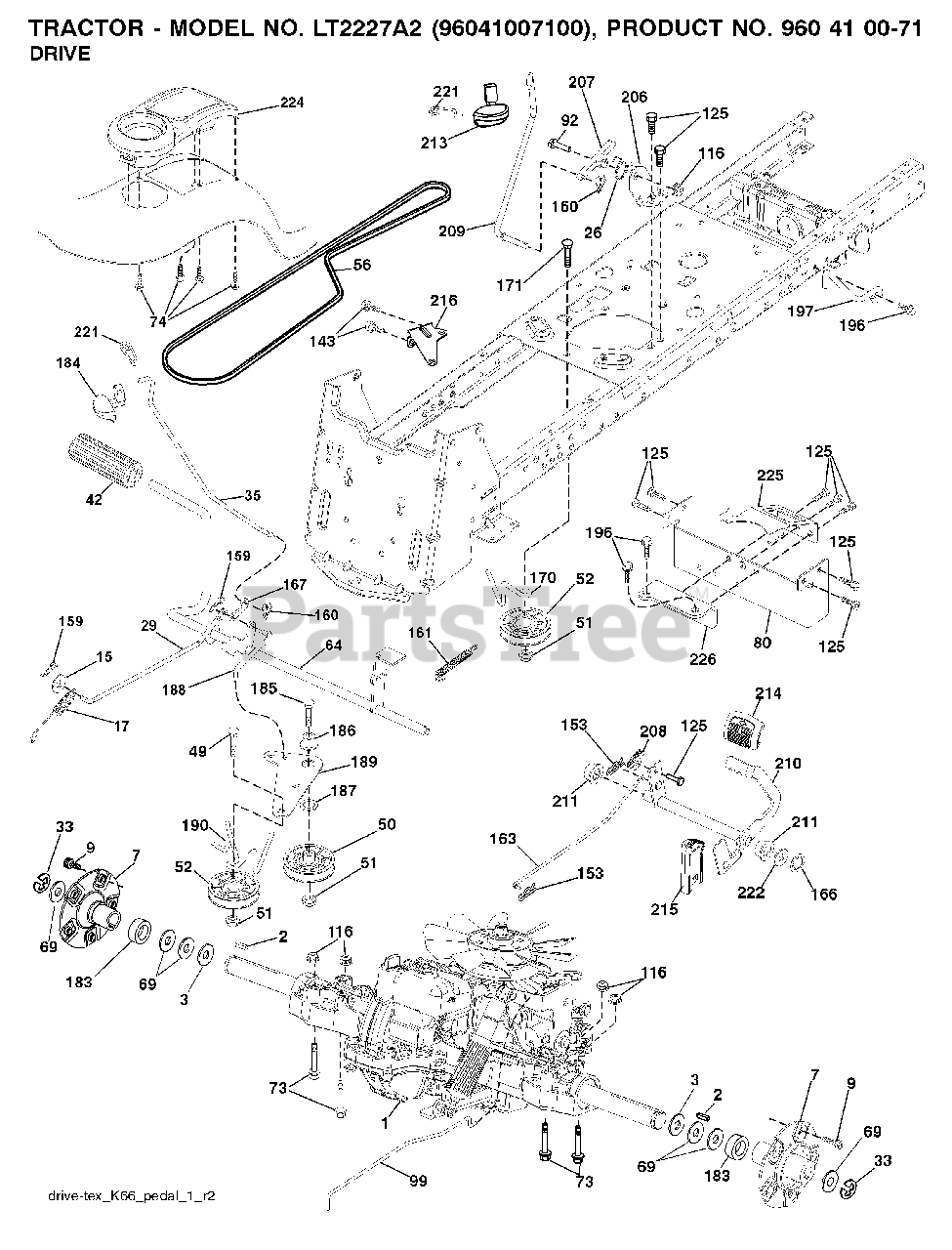

DRIVE Parts Diagram

  • Title

2

Jonsered 532007070

KEY

$

$

Not available

3

Jonsered 532007563

WASHER T

$8.99

$

In Stock, only 3 left!

0

7

Jonsered 532199837

HUB.ASM.WHEEL.REAR.23"TEX

$78.99

$

In Stock, Qty 8

0

9

Jonsered 532140080

HUB BOLT

$3.99

$

Usually ships in 3-10 days

0

15

Jonsered 819131316

WASHER

$4.99

$

In Stock, Qty 9

0

17

Jonsered 532401072

SPRING.BRAKE.K46

$8.99

$

In Stock, Qty 11

0

26

Jonsered 532199679

SPRING.RETURN.CRUISE

$6.49

$

Usually ships in 3-10 days

0

29

Jonsered 532407245

ROD.BRAKE.K66

$30.99

$

In Stock, only 1 left!

0

33

Jonsered 812000053

E RING HYT

$7.49

$

In Stock, only 3 left!

0

35

Jonsered 532197275

ROD.BRKAE.PARKING.STEALTH

$21.99

$

Usually ships in 3-10 days

0

42

Jonsered 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, only 4 left!

0

49

Jonsered 872110614

BOLT
(Superseded to 596136201)

$3.99

$

In Stock, Qty 10

0

50

Jonsered 532194327

IDLER.FLAT.910.OFFSET

$13.99

$

In Stock, Qty 20+

0

51

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Jonsered 532194326

IDLER.V-GROOVE.910.OFFSET

$12.99

$

In Stock, Qty 20+

0

56

Jonsered 532125907

BELT

$36.99

$

In Stock, Qty 20+

0

64

Jonsered 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

69

Jonsered 532123800

WASHER

$7.49

$

In Stock, only 1 left!

0

73

Jonsered 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

74

Jonsered 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

80

Jonsered 532407182

STRAP.TORQUE.K66
(Superseded to 589333402)

$10.99

$

Usually ships in 3-10 days

0

92

Jonsered 874760520

BOLT
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

99

Jonsered 532415744

ROD.SPRING.BYPASS.K66.GT.Z

$9.99

$

Usually ships in 3-10 days

0

116

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

125

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

143

Jonsered 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

153

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

159

Jonsered 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

160

Jonsered 532169484

RETAINER CLIP
(Superseded to 596029401)

$3.99

$

In Stock, Qty 14

0

161

Jonsered 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

163

Jonsered 532407246

ROD.PEDAL.CONTROL

$72.99

$

Usually ships in 3-10 days

0

166

Jonsered 532197290

NUT.PUSH.625.2006
(Superseded to 532429164)

$6.49

$

In Stock, Qty 6

0

167

Jonsered 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

170

Jonsered 532194322

KEEPER.V-IDLER.CENTER.

$7.49

$

In Stock, Qty 11

0

171

Jonsered 872110616

BOLT
(Superseded to 596136301)

$3.99

$

In Stock, Qty 20+

0

183

Jonsered 532197357

SPACER.AXLE.HG.TEX

$7.49

$

In Stock, only 1 left!

0

184

Jonsered 532411716

HANDLE.PRKG.BRAKE.STLTH.TX.RED

$

$

Not available

185

Jonsered 872110620

BOLT

$4.99

$

Usually ships in 3-10 days

0

186

Jonsered 532194321

SPACER.RETAINER

$7.49

$

Usually ships in 3-10 days

0

187

Jonsered 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$3.99

$

In Stock, Qty 19

0

188

Jonsered 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$4.99

$

In Stock, Qty 13

0

189

Jonsered 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

190

Jonsered 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, Qty 19

0

196

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 7

0

197

Jonsered 532199769

BRKT.ANIT-ROTATION.CLU

$8.99

$

In Stock, Qty 11

0

206

Jonsered 532197867

BRKT.MOUNT.LATCH.CRUIS
(Superseded to 532448596)

$4.99

$

In Stock, only 1 left!

0

207

Jonsered 532197868

LATCH.CONTROL.CRUISE
(Superseded to 587031401)

$

$

Not available

208

Jonsered 532197869

GEAR.SECTOR.CONTROL.CR

$6.49

$

Usually ships in 3-10 days

0

209

Jonsered 532199466

ROD.CONTROL.CRUISE.STEALTH.TEX

$21.99

$

Usually ships in 3-10 days

0

210

Jonsered 532197860

ROCKER.ASM.PEDAL.CONTR

$30.99

$

In Stock, only 1 left!

0

211

Jonsered 532120183

BEARING.NYLON

$6.49

$

In Stock, Qty 8

0

213

Jonsered 532412324

KNOB.CONTROL.CRUISE

$7.99

$

Usually ships in 3-10 days

0

214

Jonsered 532401722

PEDAL.FORWARD.TEX.GT.4
(Superseded to 532421263)

$8.99

$

In Stock, Qty 5

0

215

Jonsered 532401723

PEDAL.REVERSE.TEX.GT.4

$7.49

$

Usually ships in 3-10 days

0

216

Jonsered 532196131

BRACKET.PULLEY.IDLER.W/TEX

$7.49

$

In Stock, only 2 left!

0

221

Jonsered 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, Qty 10

0

222

Jonsered 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 4 left!

0

224

Jonsered 532412298

CONSOLE.TOOLBOX.PCH.ERGO.BLACK

$15.99

$

Usually ships in 3-10 days

0

225

Jonsered 532407311

KEEPER.BELT.TRANSAXLE.K66

$6.49

$

Usually ships in 3-10 days

0

226

Jonsered 532407109

BRACKET.MOUNT.TORQUE.K66.TG

$8.99

$

Usually ships in 3-10 days

0
