LT 2227 A2 (960410146-02) - Husqvarna Lawn Tractor (2012-08) DRIVE Parts Diagram

Lawn Tractor

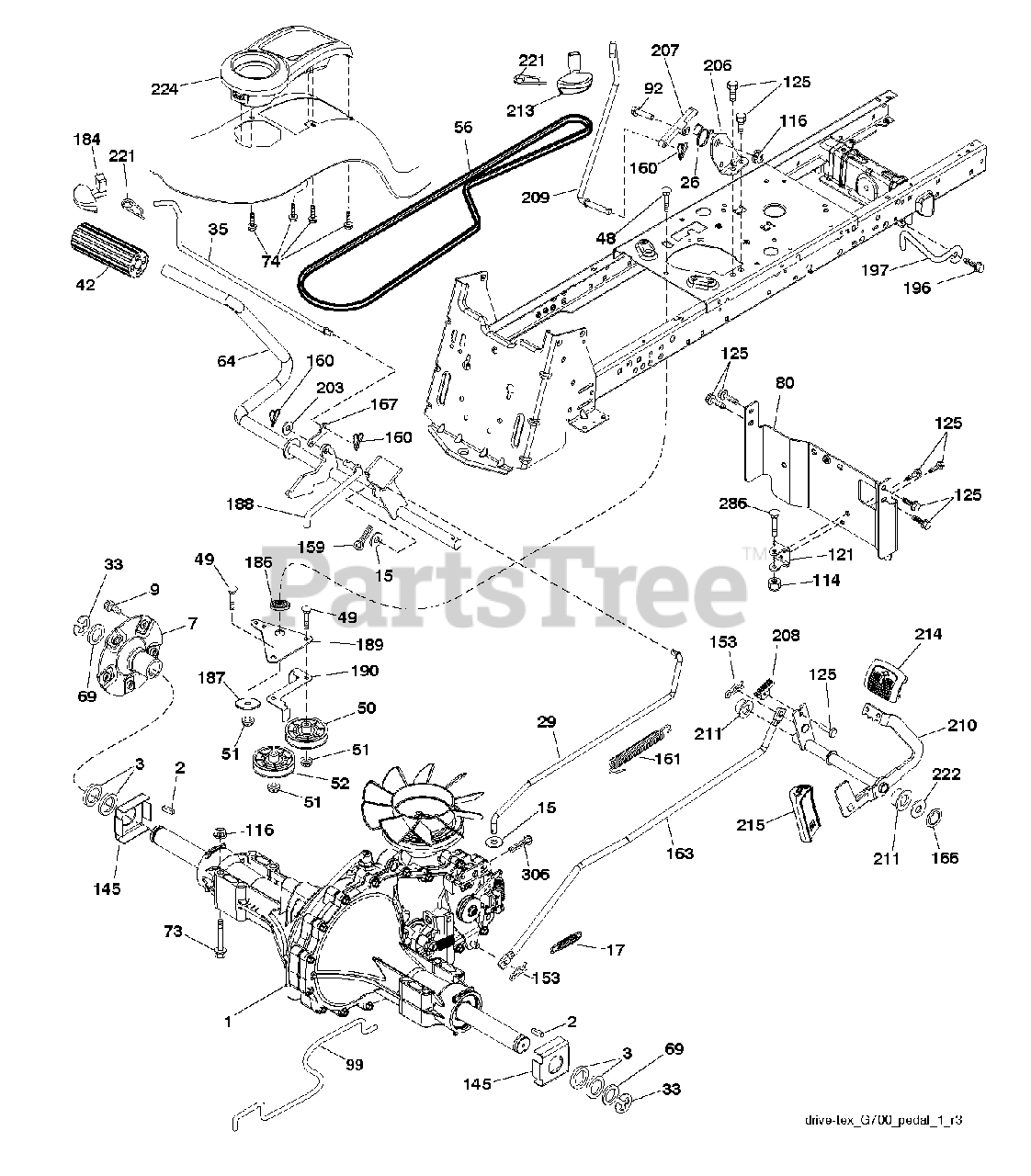

DRIVE Parts Diagram

  • Title

1

Electrolux/AYP 000000000

NO LONGER AVAILABLE

Note: TRANSAXLE HYDRO GEAR G7BCBB-1XDC-IECX (418183)

$

$

Not available

2

Electrolux/AYP 532007070

KEY

$

$

Not available

3

Electrolux/AYP 532007563

WASHER T

$8.99

$

In Stock, only 3 left!

0

7

Electrolux/AYP 532199837

HUB.ASM.WHEEL.REAR.23"TEX

$78.99

$

In Stock, Qty 8

0

9

Electrolux/AYP 532140080

HUB BOLT

$3.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 819131316

WASHER

$4.99

$

In Stock, Qty 9

0

17

Electrolux/AYP 532197296

SPRING.BRAKE.HG3000/3500

$6.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 532199679

SPRING.RETURN.CRUISE

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532418186

ROD BRAKE

$30.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 812000053

E RING HYT

$7.49

$

In Stock, only 3 left!

0

35

Electrolux/AYP 532435486

ROD.BRAKE.PARTK.HUSQ.TEX
(Superseded to 583864501)

$7.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, only 4 left!

0

48

Electrolux/AYP 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 872110614

BOLT
(Superseded to 596136201)

$3.99

$

In Stock, Qty 8

0

50

Electrolux/AYP 532194327

IDLER.FLAT.910.OFFSET

$13.99

$

In Stock, Qty 20+

0

51

Electrolux/AYP 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Electrolux/AYP 532194326

IDLER.V-GROOVE.910.OFFSET

$12.99

$

In Stock, Qty 20+

0

56

Electrolux/AYP 532140294

DRIVE BELT, LTH & YTH TRACTORS

$36.99

$

In Stock, Qty 20+

0

64

Electrolux/AYP 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

69

Electrolux/AYP 532123800

WASHER

$7.49

$

In Stock, only 1 left!

0

73

Electrolux/AYP 874490548

Flghd Hex Bolt, 5/16-18 X 3 Gr 5

$6.49

$

In Stock, only 2 left!

0

74

Electrolux/AYP 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

80

Electrolux/AYP 532418184

STRAP.TORQUE.YT.G700

$34.99

$

Usually ships in 3-10 days

0

92

Electrolux/AYP 874760520

BOLT
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

99

Electrolux/AYP 532418188

SPRING.BYPASS.YT.G700

$14.99

$

Usually ships in 3-10 days

0

114

Electrolux/AYP 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

116

Electrolux/AYP 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

121

Electrolux/AYP 532175611

BRACKET STRAP TORQUE

$4.99

$

Usually ships in 3-10 days

0

125

Electrolux/AYP 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

145

Electrolux/AYP 532163168

Flange Axle Washer, Hg-3000

$15.99

$

In Stock, only 3 left!

0

153

Electrolux/AYP 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

159

Electrolux/AYP 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

160

Electrolux/AYP 532169484

RETAINER CLIP
(Superseded to 596029401)

$3.99

$

In Stock, Qty 14

0

161

Electrolux/AYP 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

163

Electrolux/AYP 532418185

ROD PEDAL CONTROL

$34.99

$

In Stock, only 1 left!

0

166

Electrolux/AYP 532429164

NUT.PUSH.625

$6.49

$

In Stock, Qty 6

0

167

Electrolux/AYP 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

184

Electrolux/AYP 532441455

HANDLE.PARKG.BRK.HUSQ/PRED.667
(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

186

Electrolux/AYP 532194321

SPACER.RETAINER

$7.49

$

Usually ships in 3-10 days

0

187

Electrolux/AYP 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$3.99

$

In Stock, Qty 19

0

188

Electrolux/AYP 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$4.99

$

In Stock, Qty 13

0

189

Electrolux/AYP 532407504

BELLCRANK.GROUND.DRIVE.TRAPPED

$15.99

$

Usually ships in 3-10 days

0

190

Electrolux/AYP 532407505

KEEPER BELLCRANK ROUND DRIVE

$10.99

$

In Stock, only 1 left!

0

196

Electrolux/AYP 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 7

0

197

Electrolux/AYP 532199769

BRKT.ANIT-ROTATION.CLU

$8.99

$

In Stock, Qty 11

0

203

Electrolux/AYP 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

206

Electrolux/AYP 532197867

BRKT.MOUNT.LATCH.CRUIS
(Superseded to 532448596)

$4.99

$

In Stock, only 1 left!

0

207

Electrolux/AYP 532197868

LATCH.CONTROL.CRUISE
(Superseded to 587031401)

$

$

Not available

208

Electrolux/AYP 532197869

GEAR.SECTOR.CONTROL.CR

$6.49

$

Usually ships in 3-10 days

0

209

Electrolux/AYP 532199592

ROD.CONTROL.CRUISE.GT.

$10.99

$

Usually ships in 3-10 days

0

210

Electrolux/AYP 532197860

ROCKER.ASM.PEDAL.CONTR

$30.99

$

In Stock, only 1 left!

0

211

Electrolux/AYP 532120183

BEARING.NYLON

$6.49

$

In Stock, Qty 7

0

213

Electrolux/AYP 532403119

KNOB.CONTROL.CRUSIE.HU

$12.99

$

Usually ships in 3-10 days

0

214

Electrolux/AYP 532421263

PAD PEDAL FORWARD

$8.99

$

In Stock, Qty 5

0

215

Electrolux/AYP 532401723

PEDAL.REVERSE.TEX.GT.4

$7.49

$

Usually ships in 3-10 days

0

221

Electrolux/AYP 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, Qty 10

0

222

Electrolux/AYP 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 4 left!

0

224

Electrolux/AYP 532412298

CONSOLE.TOOLBOX.PCH.ERGO.BLACK

$15.99

$

Usually ships in 3-10 days

0

225

Electrolux/AYP 532418187

KEEPER.TA.YT.G700
(Superseded to 583369301)

$7.99

$

Usually ships in 3-10 days

0

226

Electrolux/AYP 532407109

BRACKET.MOUNT.TORQUE.K66.TG

$8.99

$

Usually ships in 3-10 days

0

286

Electrolux/AYP 872010520

BOLT.5/16-18X2.5

$6.49

$

Usually ships in 3-10 days

0

306

Electrolux/AYP 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0
