LT 2246 (2691145-00) - Snapper 46" Lawn Tractor, 22hp Wheels & Tires Group Parts Diagram

46" Lawn Tractor, 22hp

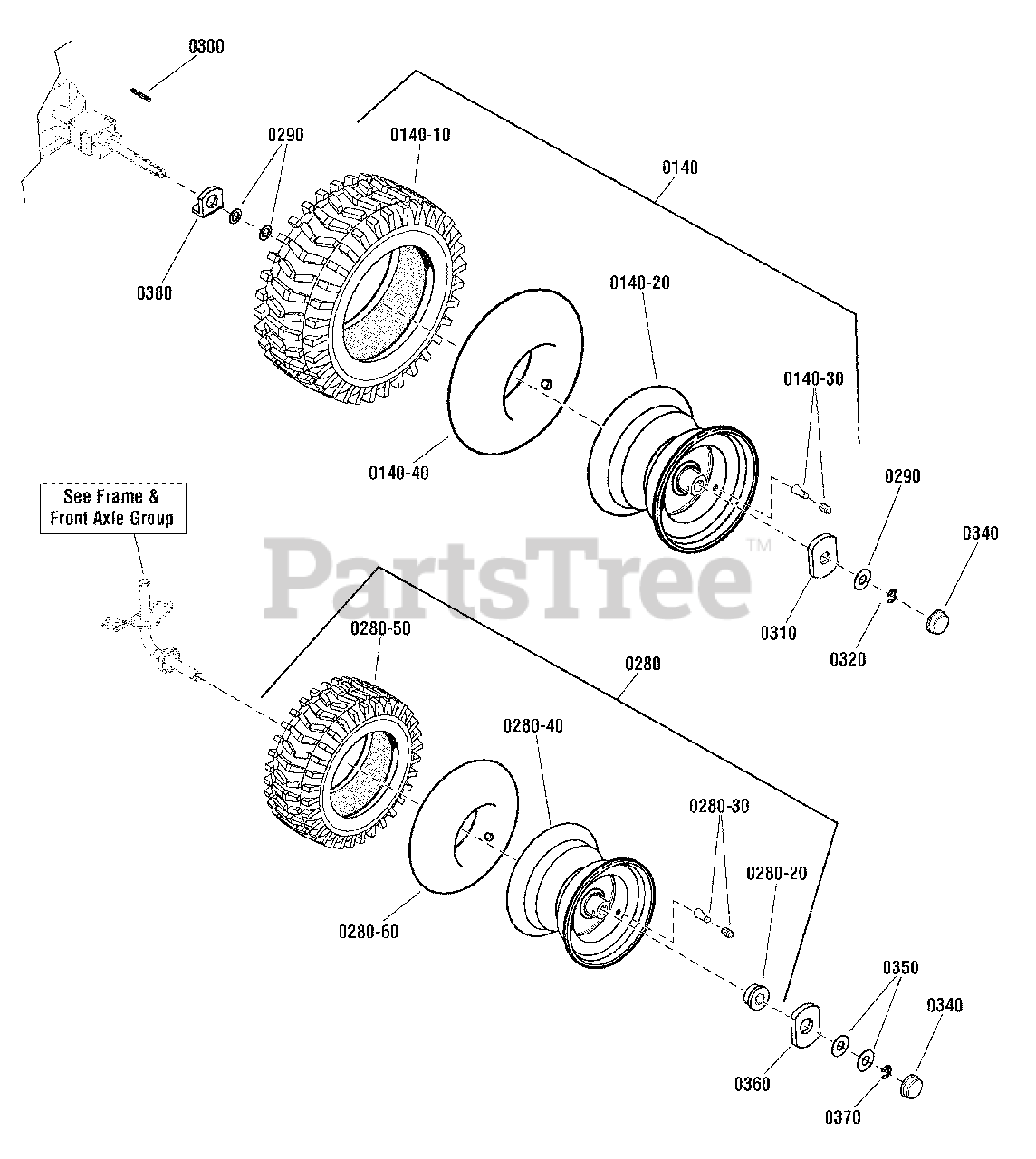

Wheels & Tires Group Parts Diagram

  • Title

0140

Snapper 1726491SM

WHEEL & TIRE ASSEMBLY
(Superseded to 1755553YP)

Note: (Incl. Ref. Nos. 0140-10, 0140-20, 0140-30, 0140-40 & 0280-30)

$396.99

$

In Stock, only 2 left!

0

0140-10

Snapper 1727136SM

TIRE, 22 x 10, 10 Super Turf

Note: (Included with Ref. No. 0140)

$179.99

$

Usually ships in 2-12 days

0

0140-20

Snapper 1726492SM

WHEEL, 7 x 9.97, W/ 3/4 OD Shaft

Note: (Included with Ref. No. 0140)

$

$

Not available

0140-30

Snapper 2172353SM

VALVE STEM & CAP ASSEMBLY
(Superseded to 024373MA)

Note: (Included with Ref. No. 0140)

$

$

Not available

0140-40

Snapper 2173477SM

TUBE, Tire, 20 x 8, Rear

Note: (Included with Ref. No. 0140)

$85.99

$

Usually ships in 2-12 days

0

0280

Snapper 1732202SM

WHEEL & TIRE ASSEMBLY, Front

Note: (Incl. Ref. Nos. 0280-20, 0280-30, 0280-40, 0280-50, 0280-60)

$213.99

$

In Stock, only 3 left!

0

0280-20

Snapper 1717056SM

BEARING, Ball

Note: (Included with Ref. No. 0280)

$33.99

$

Usually ships in 2-12 days

0

0280-30

Snapper 2172353SM

VALVE STEM & CAP ASSEMBLY
(Superseded to 024373MA)

Note: (Included with Ref. No. 0280)

$

$

Not available

0280-40

Snapper 1722837SM

WHEEL, 4-1/2" x 6"

Note: (Included with Ref. No. 0280)

$

$

Not available

0280-50

Snapper 1723882SM

TIRE, 15 x 6, Super Turf

Note: (Included with Ref. No. 0280)

$

$

Not available

0280-60

Snapper 1664090SM

TUBE, Tire, Front, 4.10/3.50

Note: (Included with Ref. No. 0280)

$26.99

$

Usually ships in 2-12 days

0

0290

Snapper 2860202SM

WASHER, 3/4

$4.49

$

In Stock, Qty 10

0

0300

Snapper 5048409SM

KEY, Parallel, 3/16 x 3/16 x 2-1/2

$3.49

$

Usually ships in 2-12 days

0

0310

Snapper 1722717SM

WASHER, Special

$7.99

$

In Stock, only 1 left!

0

0320

Snapper 2827794SM

RING, "E" External

$3.49

$

In Stock, Qty 20+

0

0340

Snapper 1722676SM

CAP, Hub, Gray

$5.49

$

In Stock, Qty 13

0

0350

Snapper 1919394SM

WASHER, 1, (As Required for All Front)
(Superseded to 703149)

$3.49

$

In Stock, only 1 left!

0

0360

Snapper 1722726SM

WASHER, Flat 1 (Double D)

$5.49

$

In Stock, only 2 left!

0

0370

Snapper 2832577SM

RING, Retainer

$4.49

$

In Stock, Qty 16

0

0380

Snapper 1737049AYP

WASHER, Axle Seal

$14.99

$

In Stock, only 1 left!

0
