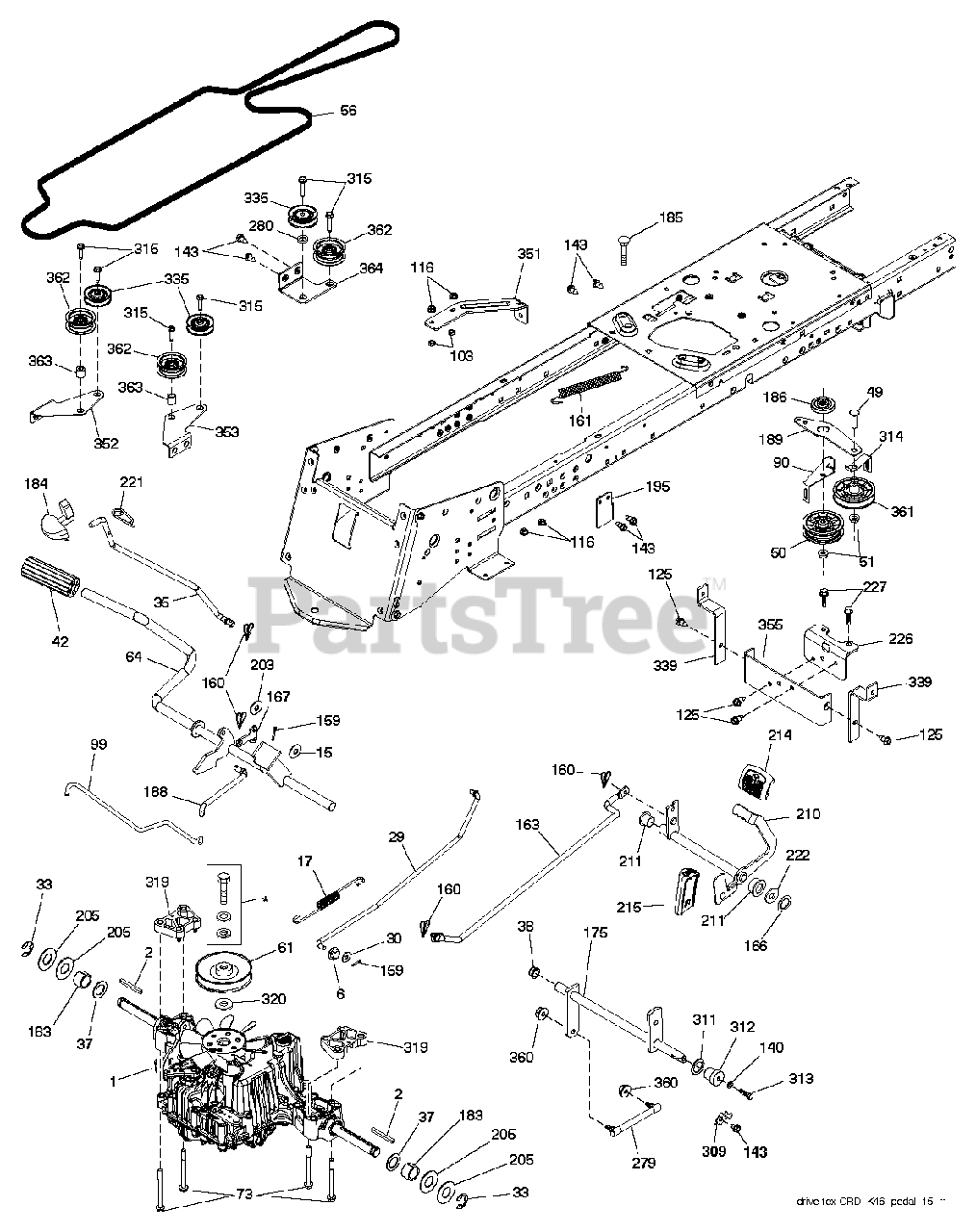

LT 2316 CMA2 (960510006-00) - Jonsered Lawn Tractor (2011-03) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

1

Jonsered 000000000

No Description Available

Note: Transaxle Tufftorq K46DF (436814)

$

$

Not available

2

Jonsered 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 8

0

6

Jonsered 532124028

GROMMET T

$6.99

$

In Stock, only 3 left!

0

15

Jonsered 819131616

No Description Available
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

17

Jonsered 532436227

No Description Available
(Superseded to 583508701)

$7.49

$

Usually ships in 3-10 days

0

29

Jonsered 532435881

No Description Available
(Superseded to 583507601)

$34.99

$

Usually ships in 3-10 days

0

30

Jonsered 819131616

No Description Available
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

33

Jonsered 812000001

E-RING LT

$4.99

$

In Stock, Qty 20+

0

35

Jonsered 532197722

ROD.BRAKE.PARKING.LT.T

$12.99

$

Usually ships in 3-10 days

0

37

Jonsered 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

38

Jonsered 532169613

NYLINER SNAP 5/8" ID

$7.49

$

In Stock, Qty 6

0

42

Jonsered 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, only 4 left!

0

49

Jonsered 872110614

BOLT
(Superseded to 596136201)

$3.99

$

In Stock, Qty 8

0

50

Jonsered 532194327

IDLER.FLAT.910.OFFSET

$13.99

$

In Stock, Qty 20+

0

51

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

56

Jonsered 532441834

No Description Available
(Superseded to 583560601)

$121.99

$

Usually ships in 3-10 days

0

61

Jonsered 532437788

No Description Available
(Superseded to 583522801)

$42.99

$

Usually ships in 3-10 days

0

64

Jonsered 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

73

Jonsered 874490556

No Description Available
(Superseded to 583613201)

$

$

Not available

90

Jonsered 532443605

No Description Available
(Superseded to 583570001)

$4.99

$

Usually ships in 3-10 days

0

99

Jonsered 532443947

No Description Available

$

$

Not available

103

Jonsered 873350500

JAM NUT TI

$8.99

$

Usually ships in 3-10 days

0

116

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

125

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

140

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

143

Jonsered 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

159

Jonsered 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

160

Jonsered 532169484

RETAINER CLIP
(Superseded to 596029401)

$3.99

$

In Stock, Qty 14

0

161

Jonsered 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

163

Jonsered 532436632

No Description Available
(Superseded to 583510001)

$33.99

$

Usually ships in 3-10 days

0

166

Jonsered 532429164

NUT.PUSH.625

$6.49

$

In Stock, Qty 6

0

167

Jonsered 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

175

Jonsered 532429359

No Description Available
(Superseded to 583450901)

$21.99

$

Usually ships in 3-10 days

0

183

Jonsered 532137057

SPACER AXLE

$7.49

$

In Stock, Qty 10

0

184

Jonsered 532441504

HANDLE.PARKING.BRAKE.LTTEX.667

$7.99

$

Usually ships in 3-10 days

0

185

Jonsered 872110622

BOLT

$3.99

$

In Stock, only 3 left!

0

186

Jonsered 532194321

SPACER.RETAINER

$7.49

$

Usually ships in 3-10 days

0

188

Jonsered 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$4.99

$

In Stock, Qty 13

0

189

Jonsered 532433611

No Description Available
(Superseded to 583492701)

$7.49

$

Usually ships in 3-10 days

0

195

Jonsered 532435865

No Description Available

$

$

Not available

203

Jonsered 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

205

Jonsered 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

210

Jonsered 532400980

ROCKER.ASM.PEDAL.CONTR

$34.99

$

In Stock, only 1 left!

0

211

Jonsered 532120183

BEARING.NYLON

$6.49

$

In Stock, Qty 8

0

214

Jonsered 532421263

PAD PEDAL FORWARD

$8.99

$

In Stock, Qty 5

0

215

Jonsered 532419482

No Description Available
(Superseded to 583376501)

$9.99

$

Usually ships in 3-10 days

0

221

Jonsered 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, Qty 10

0

222

Jonsered 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 4 left!

0

226

Jonsered 532401564

BRACKET.MOUNT.TORQUE.K46.TLT

$18.99

$

Usually ships in 3-10 days

0

227

Jonsered 817490512

SCREW
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

279

Jonsered 532444283

No Description Available

$

$

Not available

280

Jonsered 819111012

WASHER T

$6.49

$

Usually ships in 3-10 days

0

309

Jonsered 532165580

PLATE.FASTENING.CROSS.SHAFT

$4.99

$

Usually ships in 3-10 days

0

311

Jonsered 532169845

WASHER NYL

$4.99

$

Usually ships in 3-10 days

0

312

Jonsered 532165614

HUB

$6.49

$

Usually ships in 3-10 days

0

313

Jonsered 874780416

BOLT

$6.49

$

Usually ships in 3-10 days

0

314

Jonsered 532444713

No Description Available
(Superseded to 583575801)

$4.99

$

Usually ships in 3-10 days

0

315

Jonsered 817580520

BOLT.5/16-18X1.25

$5.99

$

In Stock, only 3 left!

0

319

Jonsered 532436794

No Description Available

$

$

Not available

320

Jonsered 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

335

Jonsered 532199534

PULLEY.V-IDLER.

$37.99

$

Usually ships in 3-10 days

0

339

Jonsered 532436867

No Description Available
(Superseded to 583512601)

$3.99

$

Usually ships in 3-10 days

0

351

Jonsered 532436998

No Description Available
(Superseded to 583515101)

$9.99

$

Usually ships in 3-10 days

0

352

Jonsered 532435819

No Description Available
(Superseded to 583507301)

$6.49

$

Usually ships in 3-10 days

0

353

Jonsered 532436577

No Description Available
(Superseded to 583509501)

$7.49

$

Usually ships in 3-10 days

0

355

Jonsered 532435669

No Description Available
(Superseded to 583506501)

$8.99

$

Usually ships in 3-10 days

0

360

Jonsered 532444714

No Description Available
(Superseded to 583575901)

$3.99

$

Usually ships in 3-10 days

0

361

Jonsered 532194326

IDLER.V-GROOVE.910.OFFSET

$12.99

$

In Stock, Qty 20+

0

362

Jonsered 532436812

No Description Available
(Superseded to 583512101)

$31.99

$

Usually ships in 3-10 days

0

364

Jonsered 532443032

No Description Available
(Superseded to 583567401)

$7.49

$

Usually ships in 3-10 days

0

363

Jonsered 532442780

No Description Available
(Superseded to 583566301)

$4.99

$

Usually ships in 3-10 days

0
