LT 2317 CMA2 (960510080-01) - Jonsered Lawn Tractor (2013-01) ENGINE Parts Diagram

Lawn Tractor

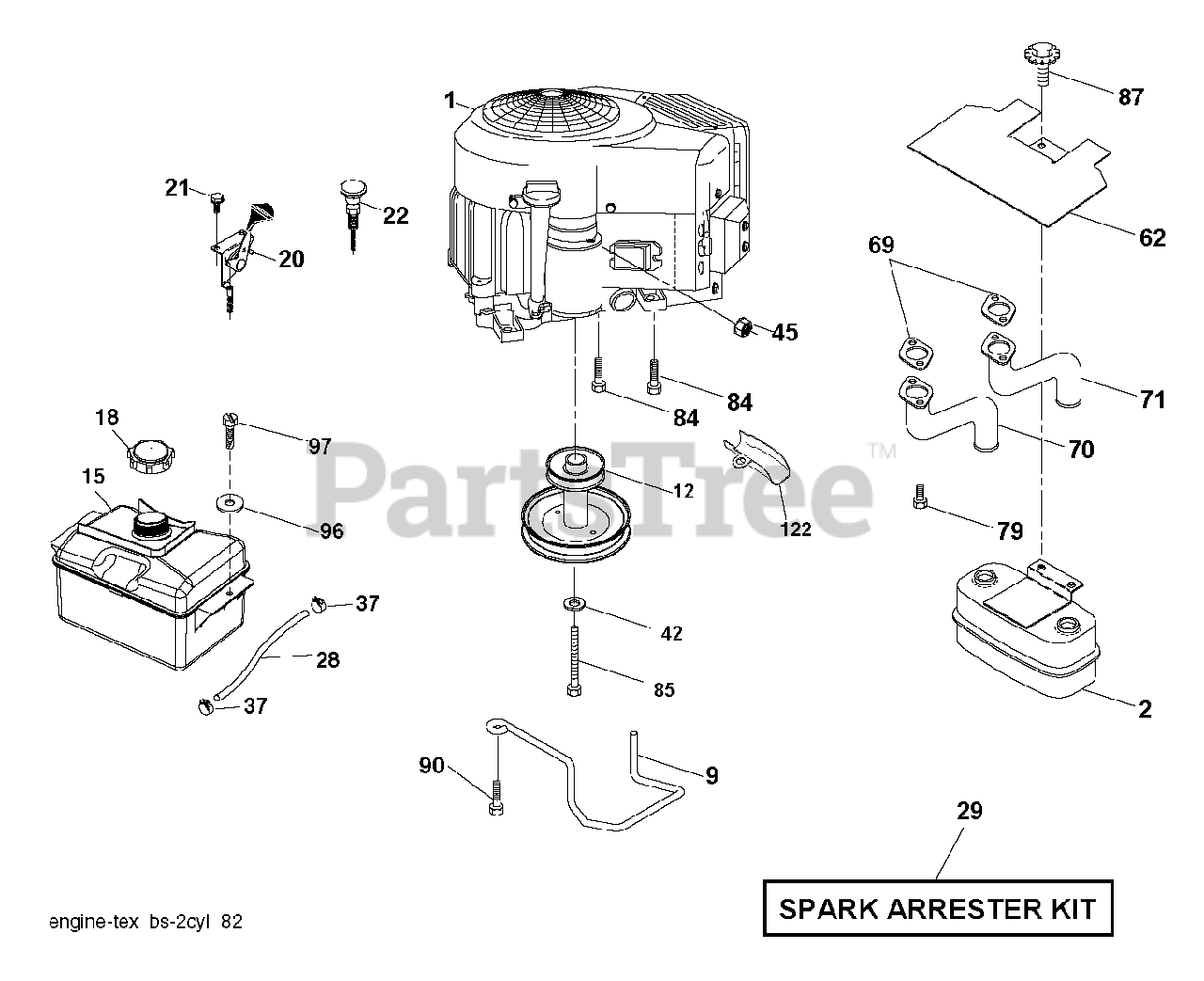

ENGINE Parts Diagram

  • Title

1

Jonsered 000000000

No Description Available

Note: ENGINE B S MODEL NO 405577-2220-B1 (438697)

$

$

Not available

2

Jonsered 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$51.99

$

Usually ships in 3-10 days

0

9

Jonsered 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 596501502)

$13.99

$

In Stock, only 3 left!

0

12

Jonsered 532405471

PULLY ENGINE
(Superseded to 586478501)

$34.99

$

Usually ships in 3-10 days

0

15

Jonsered 581289901

No Description Available

$62.99

$

Usually ships in 3-10 days

0

18

Jonsered 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

In Stock, Qty 7

0

20

Jonsered 532178385

THROTTLE CABLE
(Superseded to 532175437)

$31.99

$

In Stock, only 1 left!

0

21

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.49

$

In Stock, Qty 15

0

22

Jonsered 532191596

CONTROL CHOKE

$39.99

$

In Stock, Qty 6

0

28

Jonsered 532137040

LINE.FUEL.20
(Superseded to 587044820)

$13.99

$

In Stock, Qty 10

0

29

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$193.99

$

In Stock, only 1 left!

0

37

Jonsered 532123487

HOSE CLAMP

$3.99

$

In Stock, only 2 left!

0

42

Jonsered 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, Qty 15

0

45

Jonsered 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

62

Jonsered 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$13.99

$

In Stock, only 2 left!

0

69

Jonsered 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

70

Jonsered 532159955

TUBE MANIFOLD LH
(Superseded to 581881101)

$34.99

$

In Stock, Qty 5

0

71

Jonsered 532160589

EXHAUST TUBE RH
(Superseded to 581881001)

$28.99

$

In Stock, only 3 left!

0

79

Jonsered 532183906

SCREW.SOCKET.HEAD.5/16-18
(Superseded to 596134202)

$3.49

$

In Stock, Qty 19

0

84

Jonsered 817060620

SCREW.3/8-16

$6.99

$

In Stock, Qty 8

0

85

Jonsered 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$3.49

$

In Stock, Qty 11

0

87

Jonsered 532171877

BOLT, 5/16-18 X 1 3/4

$5.99

$

In Stock, only 2 left!

0

90

Jonsered 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 9

0

96

Jonsered 819091416

WASHER
(Superseded to 596135301)

$3.49

$

In Stock, Qty 6

0

97

Jonsered 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

122

Jonsered 532421922

EXTENSION DRAIN OIL

$31.99

$

In Stock, Qty 7

0
