LT 2320 A2 (960410321-01) - Jonsered Lawn Tractor (2014-04) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

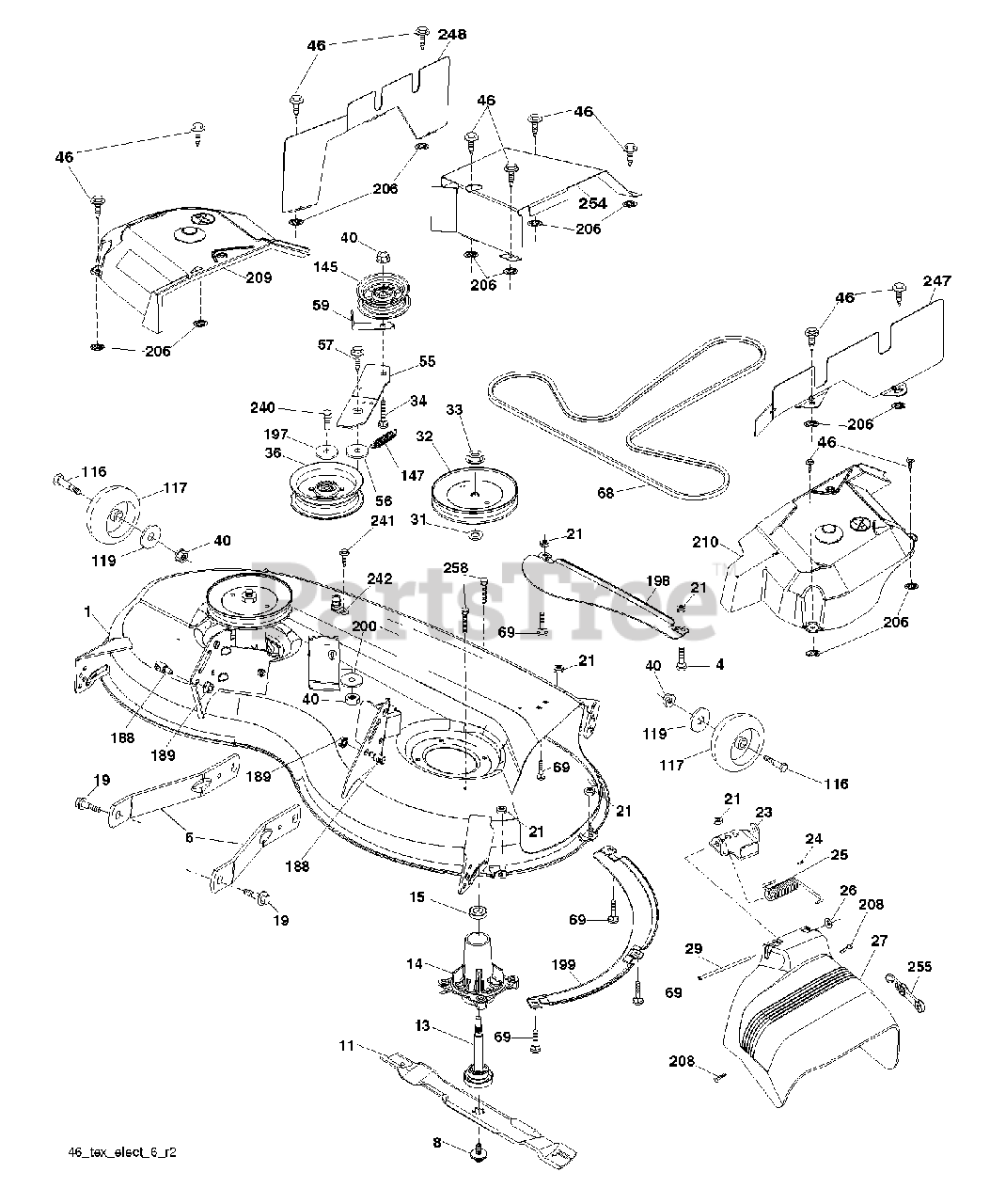

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Jonsered 532448126

(Superseded to 532409781)

$460.99

$

Usually ships in 3-10 days

0

4

Jonsered 874760512

BOLT
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

6

Jonsered 532195186

ARM.SUSPENSION.MOWER.R

$9.49

$

Usually ships in 3-10 days

0

8

Jonsered 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

In Stock, Qty 20+

0

11

Jonsered 532405380

BLADE 46" HI LIFT

$20.99

$

Usually ships in 3-10 days

0

13

Jonsered 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$47.99

$

In Stock, Qty 20+

0

14

Jonsered 532187281

HOUSING MANDREL
(Superseded to 587819701)

$47.99

$

In Stock, Qty 20+

0

15

Jonsered 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

19

Jonsered 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

21

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Jonsered 532192557

BRKT.DEFLECTOR.38"2005+

$7.49

$

In Stock, Qty 20+

0

24

Jonsered 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Jonsered 532197026

SPRING.TORSION.DEFLECT

$9.99

$

In Stock, Qty 20+

0

26

Jonsered 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

27

Jonsered 532442895

No Description Available

$

$

Not available

29

Jonsered 532131491

ROD.HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

31

Jonsered 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

32

Jonsered 532197473

PULLEY.MANDREL.5.438.PD
(Superseded to 532195945)

$10.99

$

In Stock, Qty 20+

0

33

Jonsered 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

34

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

36

Jonsered 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$24.99

$

In Stock, Qty 20+

0

40

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

46

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

55

Jonsered 532197249

IDLER.ARM

$4.99

$

Usually ships in 3-10 days

0

56

Jonsered 532199092

SPACER.RETAINER

$6.49

$

In Stock, Qty 19

0

57

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 5

0

59

Jonsered 532141043

GUARD, BELT

$

$

Not available

68

Jonsered 532405143

V BELT
(Superseded to 584453101)

$42.99

$

In Stock, Qty 20+

0

69

Jonsered 872140505

BOLT
(Superseded to 596136401)

$3.99

$

Usually ships in 3-10 days

0

116

Jonsered 532193406

BOLT.SHOULDER.3/8-16X3-5/8
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

117

Jonsered 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$4.99

$

In Stock, Qty 20+

0

119

Jonsered 819132012

WASHER

$1.99

$

Usually ships in 3-10 days

0

145

Jonsered 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$24.99

$

In Stock, Qty 20+

0

147

Jonsered 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$9.99

$

In Stock, Qty 7

0

188

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

189

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

197

Jonsered 819131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

198

Jonsered 532403149

BAFFLE CENTER FRONT

$14.99

$

Usually ships in 3-10 days

0

199

Jonsered 532403150

BAFFLE FRONT RH

$11.99

$

Usually ships in 3-10 days

0

200

Jonsered 532413524

WASHER.13/32 X 1 X 1/2.11GUARD
(Superseded to 596135501)

$3.99

$

In Stock, Qty 17

0

206

Jonsered 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0

208

Jonsered 817670608

SCREW 3/8-16X1/2

$6.49

$

In Stock, only 2 left!

0

209

Jonsered 532432395

No Description Available

$

$

Not available

210

Jonsered 532432396

No Description Available
(Superseded to 583480001)

$27.99

$

Usually ships in 3-10 days

0

240

Jonsered 874520636

BOLT-HEX EAK
(Superseded to 596564404)

$3.99

$

In Stock, Qty 20+

0

241

Jonsered 532152927

SCREW

$7.49

$

In Stock, Qty 17

0

242

Jonsered 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 20+

0

247

Jonsered 532432398

No Description Available
(Superseded to 583480201)

$36.99

$

Usually ships in 3-10 days

0

248

Jonsered 532432397

No Description Available
(Superseded to 583480101)

$28.99

$

Usually ships in 3-10 days

0

254

Jonsered 532430264

(Superseded to 583457901)

$47.99

$

Usually ships in 3-10 days

0

255

Jonsered 532436087

No Description Available
(Superseded to 583508201)

$14.99

$

Usually ships in 3-10 days

0

258

Jonsered 584953901

Hex Washer Head Bolt, .313-18 X 1.19

$3.49

$

In Stock, Qty 20+

0

--

Jonsered 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: MANDREL ASSEMBLY (Includes housing (key 14) shaft assembly (key 13) bearing (key 15) and nut (key 33) only- pulley /washer and blade bolt /washers not included)

$47.99

$

In Stock, Qty 20+

0

--

Jonsered 532428012

No Description Available

$

$

Not available
