LT 2320 CMA2 (960510084-02) - Jonsered Lawn Tractor (2015-12) MOWER LIFT / DECK LIFT Parts Diagram

Lawn Tractor

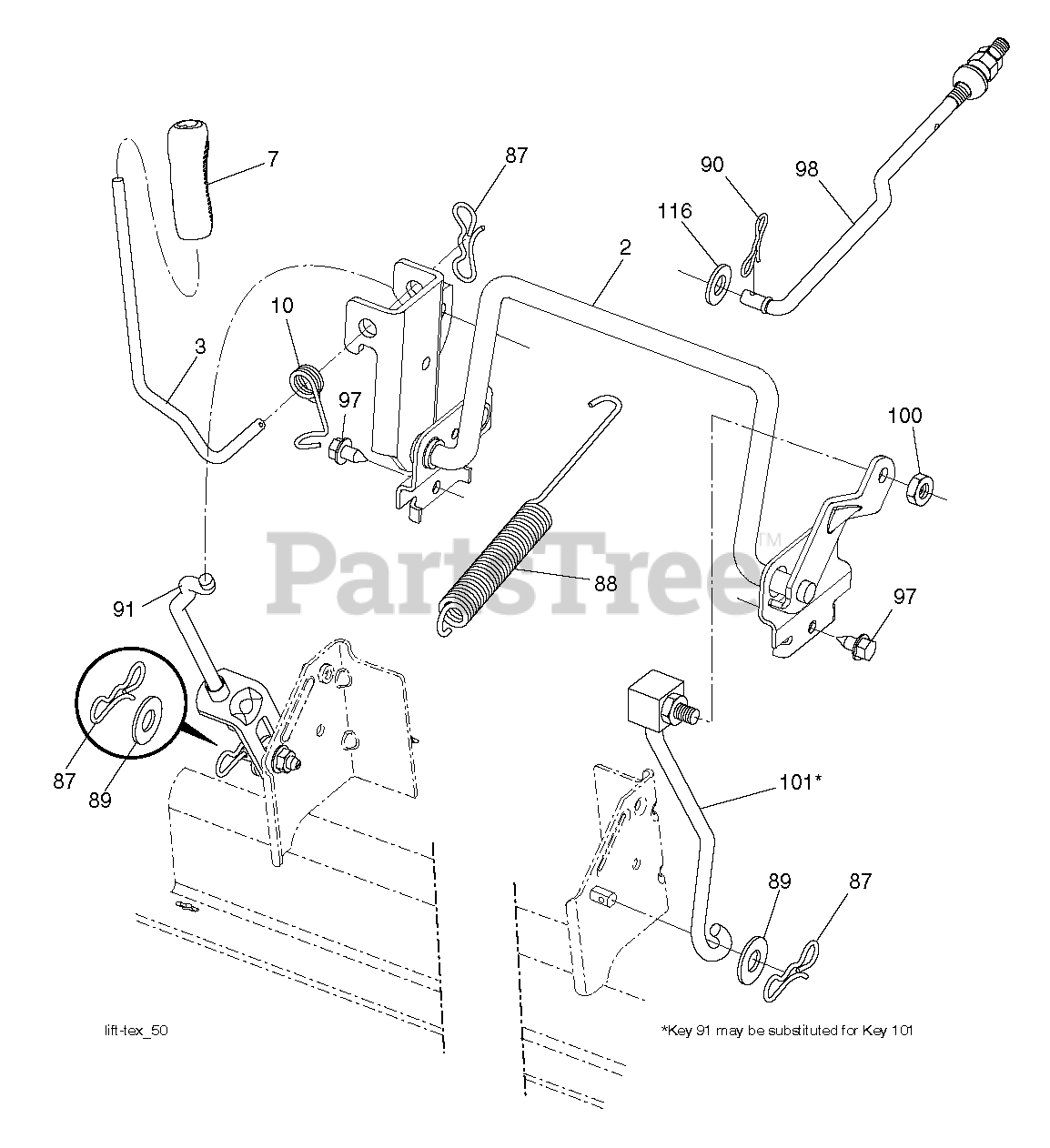

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

2

Jonsered 532436996

No Description Available
(Superseded to 583515001)

$36.99

$

Usually ships in 3-10 days

0

3

Jonsered 532195231

LEVER.LIFT.HANDLE.LT
(Superseded to 594018001)

$17.99

$

Usually ships in 3-10 days

0

7

Jonsered 580962301

No Description Available
(Superseded to 532411555)

$6.49

$

In Stock, Qty 7

0

10

Jonsered 532196314

SPRING.TORSION.LIFT.HANDLE

$6.49

$

In Stock, Qty 5

0

87

Jonsered 532194209

PIN.COTTER.7/16.BOW TI

$3.99

$

In Stock, Qty 20+

0

88

Jonsered 532445496

No Description Available
(Superseded to 583580001)

$10.99

$

Usually ships in 3-10 days

0

89

Jonsered 819191912

WASHER.CLEAR.ZINC

$6.49

$

In Stock, Qty 20+

0

90

Jonsered 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

In Stock, Qty 20+

0

91

Jonsered 532195181

LINK.ASM.LIFT.REAR
(Superseded to 589464807)

$18.99

$

In Stock, Qty 8

0

97

Jonsered 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

98

Jonsered 532195270

LINK.ASM.SUSP.FRONT.MW
(Superseded to 581506903)

$9.99

$

In Stock, Qty 20+

0

100

Jonsered 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

101

Jonsered 532407003

LINK.ASM.LIFT.FIXE.38/42/46"

$18.99

$

In Stock, Qty 7

0

116

Jonsered 819151516

WASHER
(Superseded to 734117801)

$

$

Not available
