LT 2323 CM A2 (960510047-00) - Husqvarna Lawn Tractor (2012-02) ENGINE Parts Diagram

Lawn Tractor

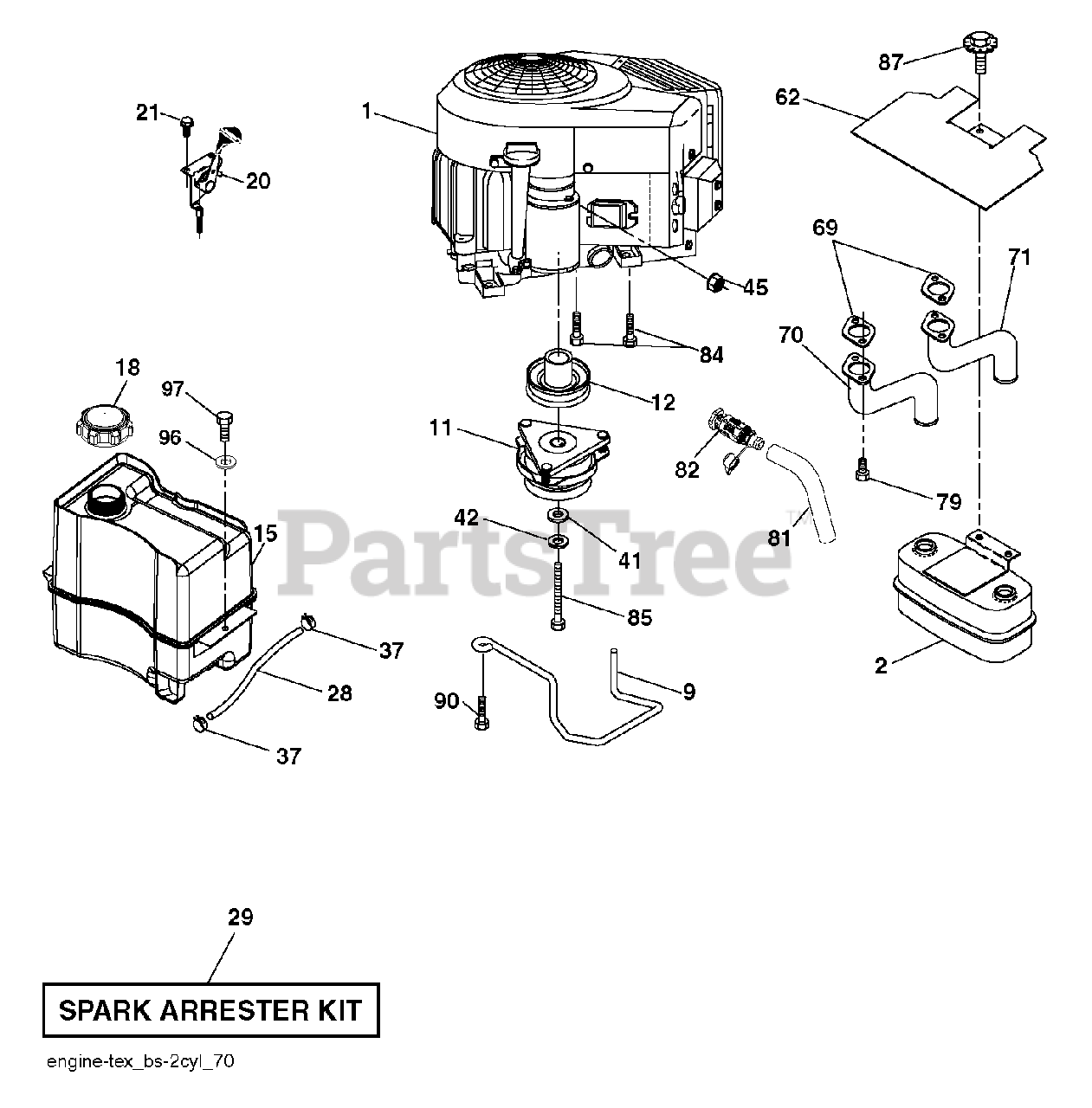

ENGINE Parts Diagram

  • Title

1

Electrolux/AYP 000000000

NO LONGER AVAILABLE

Note: ENGINE B S MODEL NO 445577-2221-B1 (438698)

$

$

Not available

2

Electrolux/AYP 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

In Stock, Qty 5

0

9

Electrolux/AYP 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 596501502)

$7.49

$

In Stock, Qty 9

0

11

Electrolux/AYP 532400008

CLUTCH.ELECTRIC.LT.48"*
(Superseded to 532414336)

$399.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 532405097

PULLEY.ENGINE.TUFFTORQ

$100.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 532407545

TANK FUEL FRT 1.5 GAL
(Superseded to 581289901)

$87.99

$

In Stock, Qty 9

0

18

Electrolux/AYP 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

In Stock, Qty 6

0

20

Electrolux/AYP 532423502

CONTROL.TH/CK.COBRA.B&S.TWN.

$31.99

$

In Stock, Qty 20+

0

21

Electrolux/AYP 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 20+

0

28

Electrolux/AYP 532137040

LINE.FUEL.20

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532137180

ARRESTER SPARK (OPTIONAL)
(Superseded to 532121851)

$

$

Not available

37

Electrolux/AYP 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 16

0

41

Electrolux/AYP 532126197

WASHER

$8.99

$

In Stock, Qty 20+

0

42

Electrolux/AYP 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

45

Electrolux/AYP 873510400

NUT
(Superseded to 873640400)

$

$

Not available

62

Electrolux/AYP 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 16

0

70

Electrolux/AYP 532159955

EXHAUST TUBE LH *SUBS/2*
(Superseded to 581881101)

$44.99

$

In Stock, only 4 left!

0

71

Electrolux/AYP 532160589

EXHAUST TUBE RH
(Superseded to 581881001)

$31.99

$

In Stock, only 3 left!

0

79

Electrolux/AYP 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 532148456

TUBE, DRAIN OIL ASM.

$4.99

$

In Stock, Qty 19

0

82

Electrolux/AYP 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, Qty 15

0

84

Electrolux/AYP 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

85

Electrolux/AYP 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, Qty 11

0

87

Electrolux/AYP 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 5

0

90

Electrolux/AYP 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 8

0

96

Electrolux/AYP 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

97

Electrolux/AYP 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0
