LT 2323 CM A2 (960510047-00) - Husqvarna Lawn Tractor (2012-02) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

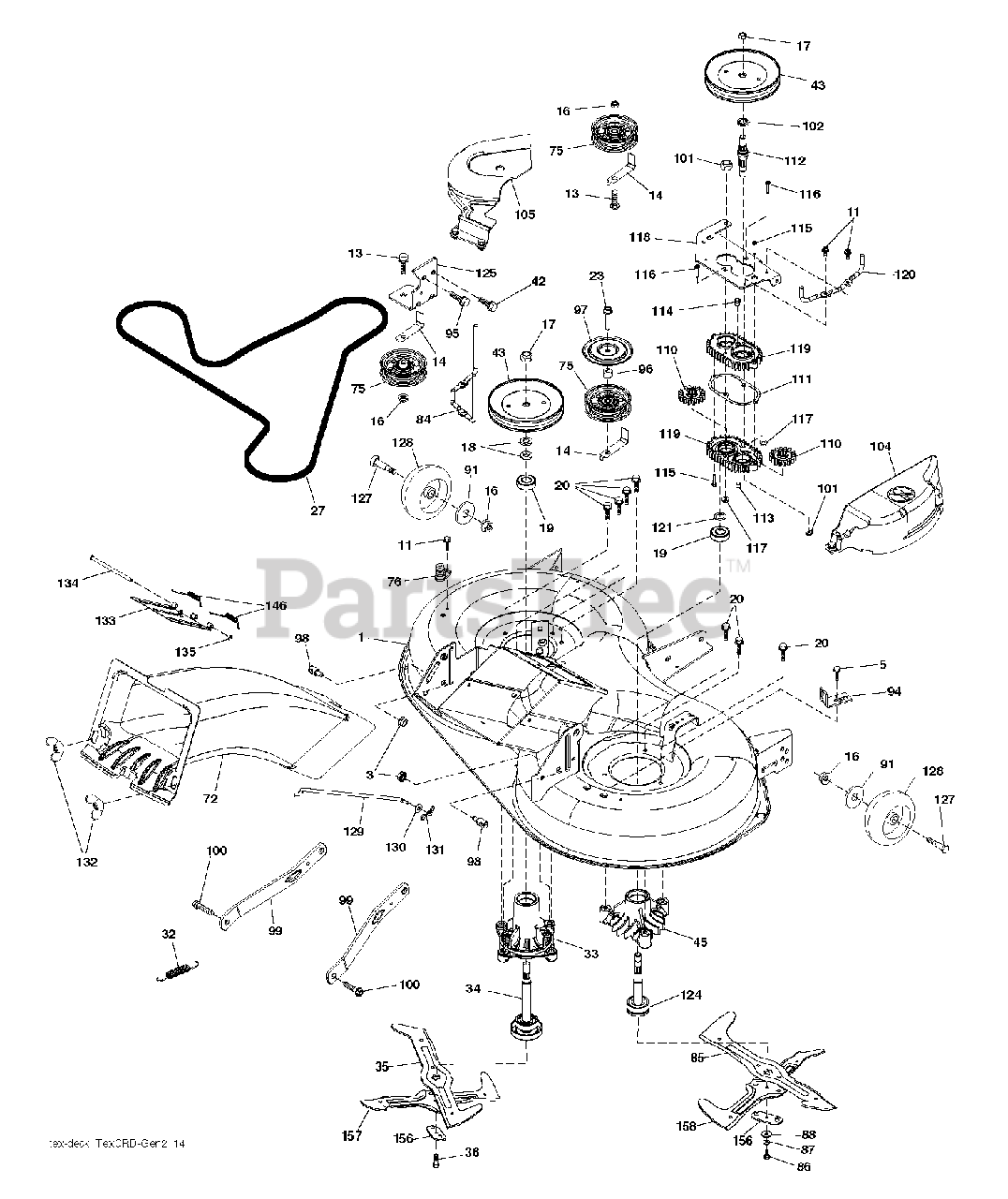

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Electrolux/AYP 532447738

No Description Available

$

$

Not available

3

Electrolux/AYP 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

Note: RH

$3.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

11

Electrolux/AYP 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

16

Electrolux/AYP 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

18

Electrolux/AYP 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

19

Electrolux/AYP 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

20

Electrolux/AYP 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

23

Electrolux/AYP 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 532445886

BELT BELT. ELECTRIC M
(Superseded to 583581901)

$103.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 532446205

SPRING 107CM 97CM ELE
(Superseded to 583584001)

$8.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 532187281

HOUSING MANDREL
(Superseded to 587819701)

$47.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$47.99

$

In Stock, Qty 20+

0

35

Electrolux/AYP 532180583

BLADE.3N1.LH.CRD

$36.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

In Stock, Qty 20+

0

42

Electrolux/AYP 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

43

Electrolux/AYP 532443239

PULLEY PULLEY MANDREL
(Superseded to 583568201)

$53.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 532137152

HOUSING.MANDREL

$40.99

$

In Stock, only 4 left!

0

72

Electrolux/AYP 532443903

97/107.TEX.CRD.UPPER CHUTE(22)
(Superseded to 581454103)

$84.99

$

Usually ships in 3-10 days

0

75

Electrolux/AYP 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 20+

0

76

Electrolux/AYP 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 20+

0

84

Electrolux/AYP 532443235

KEEPER KEEPER. LH MAN
(Superseded to 583567901)

$10.99

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 532180584

BLADE.3N1.RH.CRD

$72.99

$

In Stock, only 1 left!

0

86

Electrolux/AYP 532181713

BOLT.3/8-24X1.25GR8. LHTHRD
(Superseded to 583117001)

$4.99

$

In Stock, Qty 11

0

87

Electrolux/AYP 810030600

LOCKWASHER
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 532140296

WASHER.BLADE

$6.49

$

In Stock, Qty 6

0

91

Electrolux/AYP 819132012

WASHER

$1.99

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 532197250

BRKT.CLUTCH.CABLE

$6.49

$

In Stock, Qty 15

0

95

Electrolux/AYP 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

96

Electrolux/AYP 532400271

NO LONGER AVAILABLE
(Superseded to 583261101)

$6.49

$

Usually ships in 3-10 days

0

97

Electrolux/AYP 532182061

NO LONGER AVAILABLE
(Superseded to 583119101)

$6.49

$

Usually ships in 3-10 days

0

98

Electrolux/AYP 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

99

Electrolux/AYP 532195186

ARM.SUSPENSION.MOWER.R

$9.49

$

Usually ships in 3-10 days

0

100

Electrolux/AYP 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

101

Electrolux/AYP 873680900

NUT.CROWNLOCK.9/16 -18.UNC
(Superseded to 583612301)

$4.99

$

Usually ships in 3-10 days

0

102

Electrolux/AYP 532402511

SPACER BEARING

$4.99

$

In Stock, only 1 left!

0

104

532446925

$

$

Not available

105

532446926

$

$

Not available

110

Electrolux/AYP 532415356

RP.CRD.GEAR.OUTPUT
(Superseded to 583354601)

$11.99

$

Usually ships in 3-10 days

0

111

Electrolux/AYP 532436979

GASKET GASKET GEARCAS
(Superseded to 583514001)

$6.49

$

Usually ships in 3-10 days

0

112

Electrolux/AYP 532443852

No Description Available
(Superseded to 583571601)

$17.99

$

In Stock, only 1 left!

0

113

Electrolux/AYP 532438533

PLUG PLUG OIL
(Superseded to 583533001)

$

$

Not available

114

Electrolux/AYP 532438534

VALVE VALVE RELIEF
(Superseded to 583533101)

$12.99

$

Usually ships in 3-10 days

0

115

Electrolux/AYP 818031016

Screw
(Superseded to 583608901)

$4.99

$

Usually ships in 3-10 days

0

116

Electrolux/AYP 872110414

BOLT.CARIGE.SS.1/4-20X1.75GR5
(Superseded to 583611101)

$

$

Not available

117

Electrolux/AYP 873900400

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

118

Electrolux/AYP 532443232

ARM ARM. CLUTCHING 10
(Superseded to 583567701)

$15.99

$

Usually ships in 3-10 days

0

119

Electrolux/AYP 532438166

GEARCASE GEARCASE SUB
(Superseded to 583527601)

$74.99

$

Usually ships in 3-10 days

0

120

Electrolux/AYP 532443236

KEEPER KEEPER. RH MAN
(Superseded to 583568001)

$15.99

$

Usually ships in 3-10 days

0

121

Electrolux/AYP 532436985

Washer, .687ID X 1OD X 062 THK
(Superseded to 583514101)

$4.99

$

Usually ships in 3-10 days

0

124

Electrolux/AYP 532436986

Mandrel Shaft, Non/Greaseable
(Superseded to 583514201)

$40.99

$

In Stock, only 4 left!

0

125

Electrolux/AYP 532440420

Bracket
(Superseded to 583548001)

$40.99

$

Usually ships in 3-10 days

0

127

Electrolux/AYP 532193406

BOLT.SHOULDER.3/8-16X3-5/8
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

128

Electrolux/AYP 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$4.99

$

In Stock, Qty 20+

0

129

Electrolux/AYP 532443237

ROD ROD. SWAY CRD GEN
(Superseded to 583568101)

$26.99

$

Usually ships in 3-10 days

0

130

Electrolux/AYP 819131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

131

Electrolux/AYP 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

In Stock, Qty 20+

0

132

Electrolux/AYP 532178899

KNOB.HANDLE.3/8.TRI-POINT.BLAC

$8.99

$

In Stock, Qty 6

0

133

Electrolux/AYP 532438197

COVER DOOR.107 CM CRD
(Superseded to 583527801)

$7.99

$

Usually ships in 3-10 days

0

134

Electrolux/AYP 532435861

Hinge Pin
(Superseded to 583507401)

$8.99

$

Usually ships in 3-10 days

0

135

Electrolux/AYP 532437988

E-RING.5/16"

$4.99

$

Usually ships in 3-10 days

0

146

Electrolux/AYP 532445896

SPRING SPRING EZ MULC
(Superseded to 583582001)

$2.99

$

Usually ships in 3-10 days

0

156

Electrolux/AYP 532446995

ADAPTER ADAPTER.CROSS
(Superseded to 583588901)

$3.99

$

Usually ships in 3-10 days

0

157

Electrolux/AYP 532446993

No Description Available

$

$

Not available

158

Electrolux/AYP 532180425

NO LONGER AVAILABLE
(Superseded to 583101701)

$66.99

$

Usually ships in 3-10 days

0

--

Electrolux/AYP 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: NOT SHOWN

$47.99

$

In Stock, Qty 20+

0

--

Electrolux/AYP 532447316

No Description Available

Note: Includes housing shaft assembly and bearing only- pulley /nut /washer and blade bolt /washers not included

$

$

Not available
