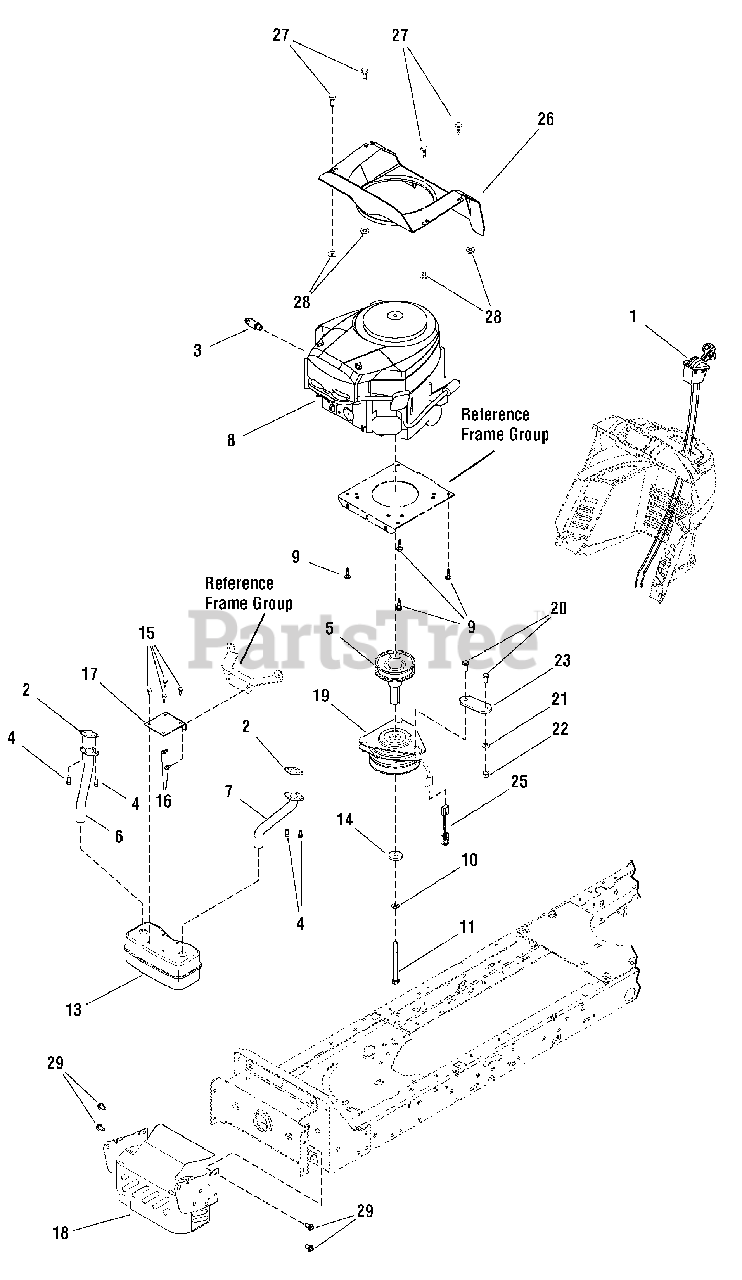

LT 23460 AWS (7800478) - Snapper LT130 Series 46" Lawn Tractor, 23hp Engine Group - 23HP Briggs & Stratton Parts Diagram

LT130 Series 46" Lawn Tractor, 23hp

Engine Group - 23HP Briggs & Stratton Parts Diagram

  • Title

1

Snapper 1727817

CONTROL, Throttle Double
(Superseded to 1727817SM)

$115.99

$

Usually ships in 2-12 days

0

1

Snapper 1736868

CONTROL, Throttle, Choke-A-Matic
(Superseded to 1736868YP)

Note: (Used on 2690858 only)

$65.99

$

Usually ships in 2-12 days

0

2

Snapper 1731214

GASKET, Exhaust
(Superseded to 1731214SM)

$4.99

$

Usually ships in 2-12 days

0

3

Snapper 7027972

OIL VALVE
(Superseded to 7027972SM)

$24.99

$

In Stock, only 1 left!

0

4

Snapper 7091738

CAPSCREW, 5/16-18 x 3/4
(Superseded to 7091738SM)

$4.99

$

In Stock, Qty 16

0

5

Snapper 7101543

PULLEY, Adapter
(Superseded to 7101543YP)

$128.99

$

Usually ships in 2-12 days

0

6

Snapper 7102402

TUBE, Exhaust, Right
(Superseded to 7102402YP)

$23.99

$

Usually ships in 2-12 days

0

7

Snapper 7102403

TUBE, Exhaust, Left
(Superseded to 7102403YP)

$23.99

$

Usually ships in 2-12 days

0

8

Snapper 44L777-0125-B1

* ENGINE, 23HP Briggs & Stratton

Note: (Used before Serial No. 2013555692)

$

$

Not available

8

Snapper 44L777-0131-B1

* ENGINE, 23HP Briggs & Stratton

Note: (Used after Serial No. 2013555692)

$

$

Not available

8

Snapper 44L777-0129-B1

* ENGINE, 23HP Briggs & Stratton

Note: (Used on Export Only)

$

$

Currently unavailable

8

Snapper 445577-0134-B1

* ENGINE, 23HP Briggs & Stratton

Note: (Used on 2690858 only)

$

$

Currently unavailable

9

Snapper 720045

SCREW, Self Tap, 3/8-16 x 1-1/4
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

10

Snapper 7091301

WASHER, Lock, 3/4
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0

11

Snapper 7102075

CAPSCREW, Hex Head, 7/16-20 x 5
(Superseded to 7102075YP)

$7.99

$

In Stock, only 1 left!

0

13

Snapper 721180

MUFFLER, Twin
(Superseded to 093259MA)

$96.99

$

Usually ships in 2-12 days

0

14

Snapper 7091807

WASHER, Flat, 1-1/4
(Superseded to 7091807SM)

$2.99

$

Usually ships in 2-12 days

0

15

Snapper 722851

SCREW, 1/4-14 X 3/8
(Superseded to 26X229MA)

$4.49

$

In Stock, only 1 left!

0

16

Snapper 722866

SCREW, Hex, 1/4-20 x 5/8
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

17

Snapper 7300760BM

BRACKET, Muffler
(Superseded to 7300760BMYP)

$18.99

$

Usually ships in 2-12 days

0

18

Snapper 7500533BM

HEAT SHIELD ASSEMBLY
(Superseded to 7500533BMYP)

$90.99

$

Usually ships in 2-12 days

0

19

Snapper 1736105

CLUTCH, Electric, Ogura Adjustable (5.4" Pulley)
(Superseded to 1736105SM)

$387.99

$

Usually ships in 2-12 days

0

20

Snapper 1921332

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

21

Snapper 7090188

WASHER, Flat, 3/4
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 7091298

NUT, Hex Flange, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0

23

Snapper 7101706

PAD, Anchor Clutch
(Superseded to 7101706YP)

$17.99

$

In Stock, only 1 left!

0

25

Snapper 1736106

HARNESS, Jumper (to Ogura Clutch)
(Superseded to 1736106SM)

$11.99

$

Usually ships in 2-12 days

0

26

Snapper 7102326

AIR DUCT, Plenum
(Superseded to 7102326YP)

$131.99

$

In Stock, only 1 left!

0

27

Snapper 1960295

SCREW, Hex Flange, 1/4-20 x 5/8
(Superseded to 1960295SM)

$4.49

$

In Stock, only 3 left!

0

28

Snapper 1930641

NUT, Hex Flange, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

29

Snapper 720664

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 06X104MA)

$4.49

$

Usually ships in 2-12 days

0
