LT 3812 (13AC77KF897) - Columbia 38" Lawn Tractor (2013) B&S Model 21 Parts Diagram

38" Lawn Tractor

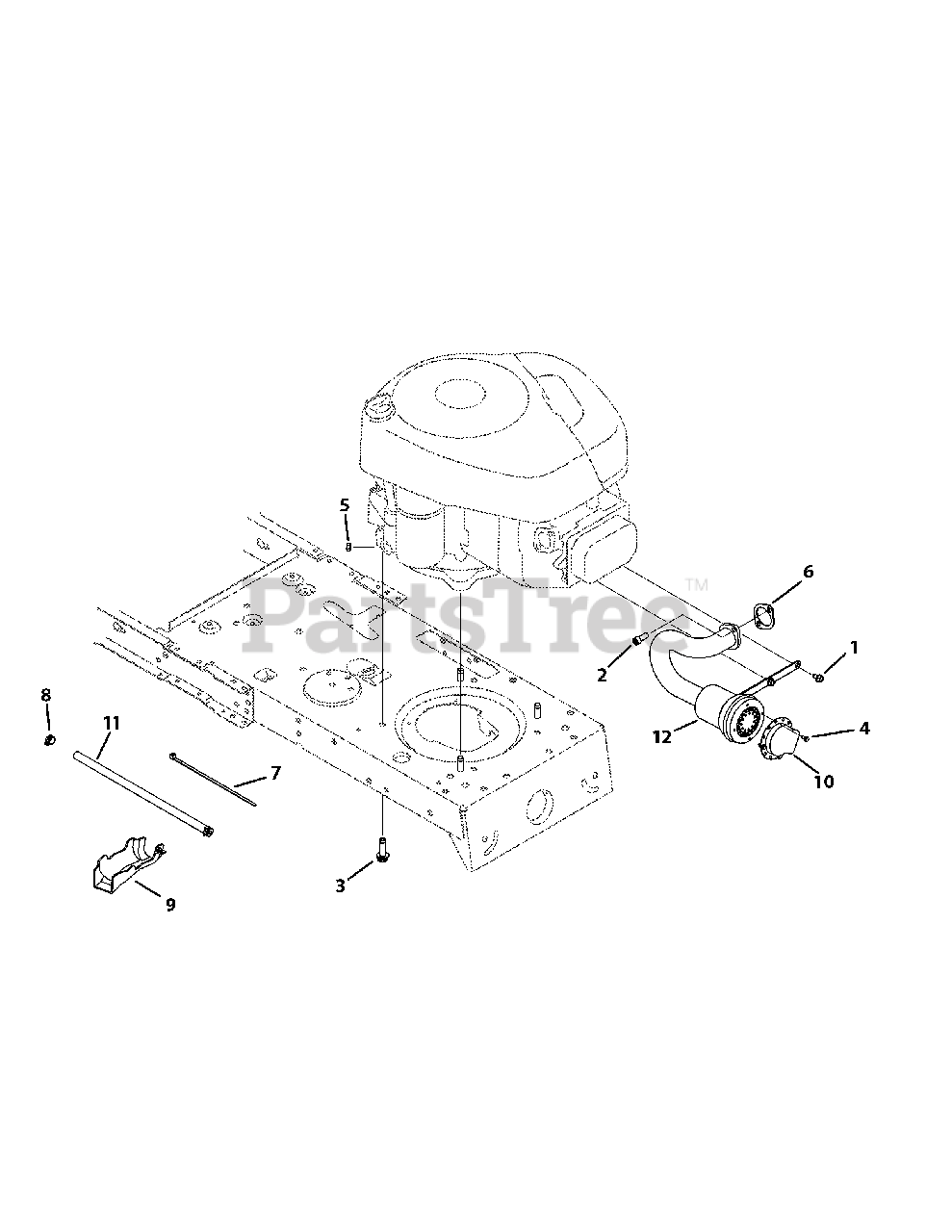

B&S Model 21 Parts Diagram

  • Title

1

MTD 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-1314A

Socket HD Cap Scr. 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04683A

Hex Wash S-Tapp Scr 3/8-16 x 1.0
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 19

0

4

MTD 710-0227

Hex Wash HD AB S-Tapp Scr #8-.50

$3.99

$

In Stock, Qty 20+

0

5

MTD 712-0271

Sems Nut 1/4-20

$4.49

$

In Stock, Qty 19

0

6

MTD BS-692236

Exhaust Gasket

$5.49

$

In Stock, Qty 20+

0

7

MTD 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

8

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

9

MTD 731-05628

Oil Drain Sleeve

$7.99

$

In Stock, only 3 left!

0

10

MTD 751B222261

Muffler Deflector

$9.99

$

In Stock, only 1 left!

0

11

MTD 751-10349-28

Fuel Line

$39.99

$

In Stock, only 1 left!

0

12

MTD 751-9986A

Muffler, Bug
(Superseded to 951-9986A)

$91.99

$

Usually ships in 3-6 days

0
