LT 4140 G (E4014-030) - Husqvarna Lawn Tractor (1994-01) Drive Parts Diagram

Lawn Tractor

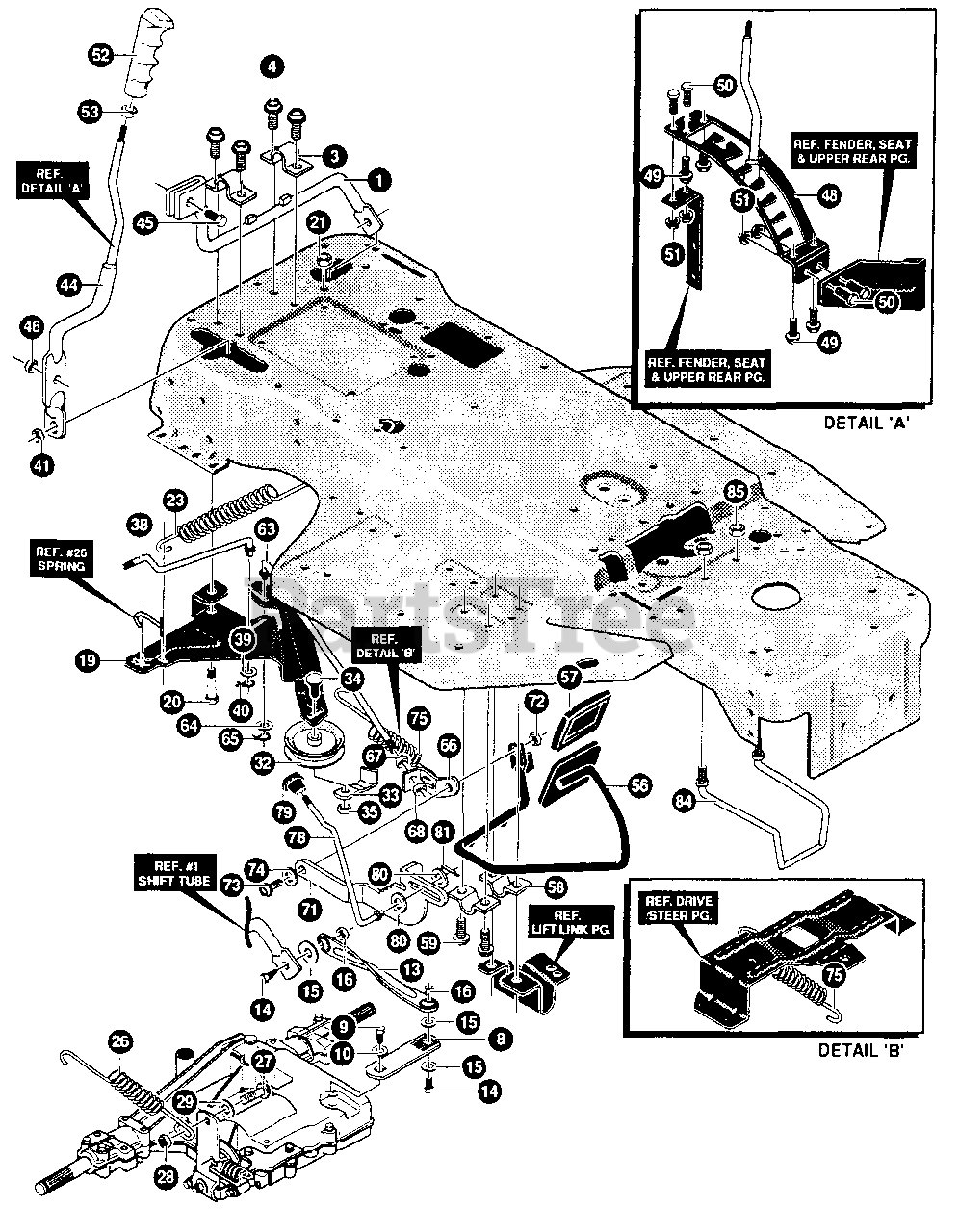

Drive Parts Diagram

  • Title

1

Husqvarna 321421

TUBE ASSY, SHIFT BLACK 173

$

$

Currently unavailable

3

Husqvarna 302538

CLIP, SHIFT LEVER

$

$

Currently unavailable

4

Husqvarna 35497

SCREW, 5/16-18X .50 WAHHTAP

$

$

Currently unavailable

8

Husqvarna 302582

LEVER,TRANS SHIFT

$

$

Currently unavailable

9

Husqvarna 56255

SCREW, 1/4-28X .75 NYLHHC

$

$

Currently unavailable

10

Husqvarna 57157

WASHER, .750X.250 SP-TRANSAXLE

$

$

Currently unavailable

13

Husqvarna 309546

LINK,TIE ROD SHIFT 7 812C/L

$

$

Currently unavailable

14

Husqvarna 180124

SCREW, 3/8-16X1.25

$

$

Not available

15

Husqvarna 120394

WASHER, FLAT .406X .81X.065

$

$

Currently unavailable

16

Husqvarna 1499

NUT, 3/8-16 REGHXCTRLK

$

$

Currently unavailable

19

Husqvarna 304049

ARM IDLER

$

$

Currently unavailable

20

Husqvarna 51189

BOLT,.500X1.280 HHSH 3/8-16

$

$

Currently unavailable

21

Husqvarna 1499

NUT, 3/8-16 REGHXCTRLK

$

$

Currently unavailable

23

Husqvarna 304209

SPRING, CLUTCH

$

$

Currently unavailable

26

Husqvarna 304130

SPRING, BRAKE 1.00ODX3.12X.120

$

$

Currently unavailable

27

Husqvarna 25086

BOLT, .500X .375 HHSH 5/16-18

$

$

Currently unavailable

28

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

29

Husqvarna 308188

WASHER, FLAT .515X1.31X.09

$

$

Currently unavailable

32

Husqvarna 40223

PULLEY. IDLER BFF

$

$

Currently unavailable

33

Husqvarna 304105

BELT RETAINER

$

$

Currently unavailable

34

Husqvarna 57325

BOLT, 3/8-16X2.00 CARRSN

$

$

Currently unavailable

35

Husqvarna 45171

NUT, 3/8-16 HWDFL WHIZ-LOCK ZN

$

$

Currently unavailable

38

Husqvarna 304083

ROD, SHIFT-ON-THE-GO

$

$

Currently unavailable

39

Husqvarna 120394

WASHER, FLAT .406X .81X.065

$

$

Currently unavailable

40

Husqvarna 36368

PIN, HAIR.072 DIAX1.13LG

$

$

Currently unavailable

41

Husqvarna 71046

NUT, 3/8-16 HEXNYL

$

$

Currently unavailable

44

Husqvarna 304025853

TUBE ASSY, SHIFT PIVOT

$

$

Currently unavailable

45

Husqvarna 304086

BOLT .375X.4001/4-20X.47

$

$

Currently unavailable

46

Husqvarna 1502

NUT, 1/4-20 REGHEXCTRLK

$

$

Currently unavailable

48

Husqvarna 305382830

QUADRANT, SHIFT P930-6SP ERO

$

$

Currently unavailable

49

Husqvarna 300302

SCREW, 1110 X .50 HHTAPPST

$

$

Currently unavailable

50

Husqvarna 180020

SCREW, 1/4-20X .75
(Superseded to 583098101)

$141.99

$

Usually ships in 3-10 days

0

51

Husqvarna 51335

NUT, 1/4-20 WDFLWHIZ-LK

$

$

Currently unavailable

52

Husqvarna 304728

HANDLE, 3/8-16 MOLDED

$

$

Currently unavailable

53

Husqvarna 120377

NUT, 3/8-16 REGHX

$

$

Currently unavailable

56

Husqvarna 302319853

WELD ASSY CL/BR ARM

$

$

Currently unavailable

57

Husqvarna 302335

PAD,CLUTCH/BRAKE MOLD W/L

$

$

Currently unavailable

58

Husqvarna 313271

BRACKET CL/BR ARM

$

$

Currently unavailable

59

Husqvarna 35497

SCREW, 5/16-18X .50 WAHHTAP

$

$

Currently unavailable

63

Husqvarna 304212

ROD, CLUTCH

$

$

Currently unavailable

64

Husqvarna 120392

WASHER, FLAT .281X .63X.065

$

$

Currently unavailable

65

Husqvarna 121223

PIN, COTTER .062 DIAX.75LG

$

$

Currently unavailable

66

Husqvarna 304125

BRACKET, BRAKE ROD

$

$

Currently unavailable

67

Husqvarna 271184

NUT, 5/16-18 HEXKEPS

$

$

Currently unavailable

68

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

71

Husqvarna 304208

LEVER, PARK BRAKE

$

$

Currently unavailable

72

Husqvarna 1498

NUT, 5/ 16-18 REGHEXCTRLK

$

$

Currently unavailable

73

Husqvarna 25086

BOLT, .500X .375 HHSH 5/16-18

$

$

Currently unavailable

74

Husqvarna 30289

WASHER, WAVE .50 ID

$

$

Currently unavailable

75

Husqvarna 35410

SPRING .071 X .62 X 4 37

$

$

Currently unavailable

78

Husqvarna 304217

ROD, PARKING BRAKE

$

$

Currently unavailable

79

Husqvarna 304367

KNOB, PARK BRAKE BLK853

$

$

Currently unavailable

80

Husqvarna 120385

WASHER, FLAT .250X .56X.049

$

$

Currently unavailable

81

Husqvarna 121223

PIN, COTTER .062 DIAX.75LG

$

$

Currently unavailable

84

Husqvarna 310162

GUIDE, BELT 820 TRANSAXLE

$

$

Currently unavailable

85

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable
