LT 4140 G (E4014-030) - Husqvarna Lawn Tractor (1994-01) Electrical Parts Diagram

Lawn Tractor

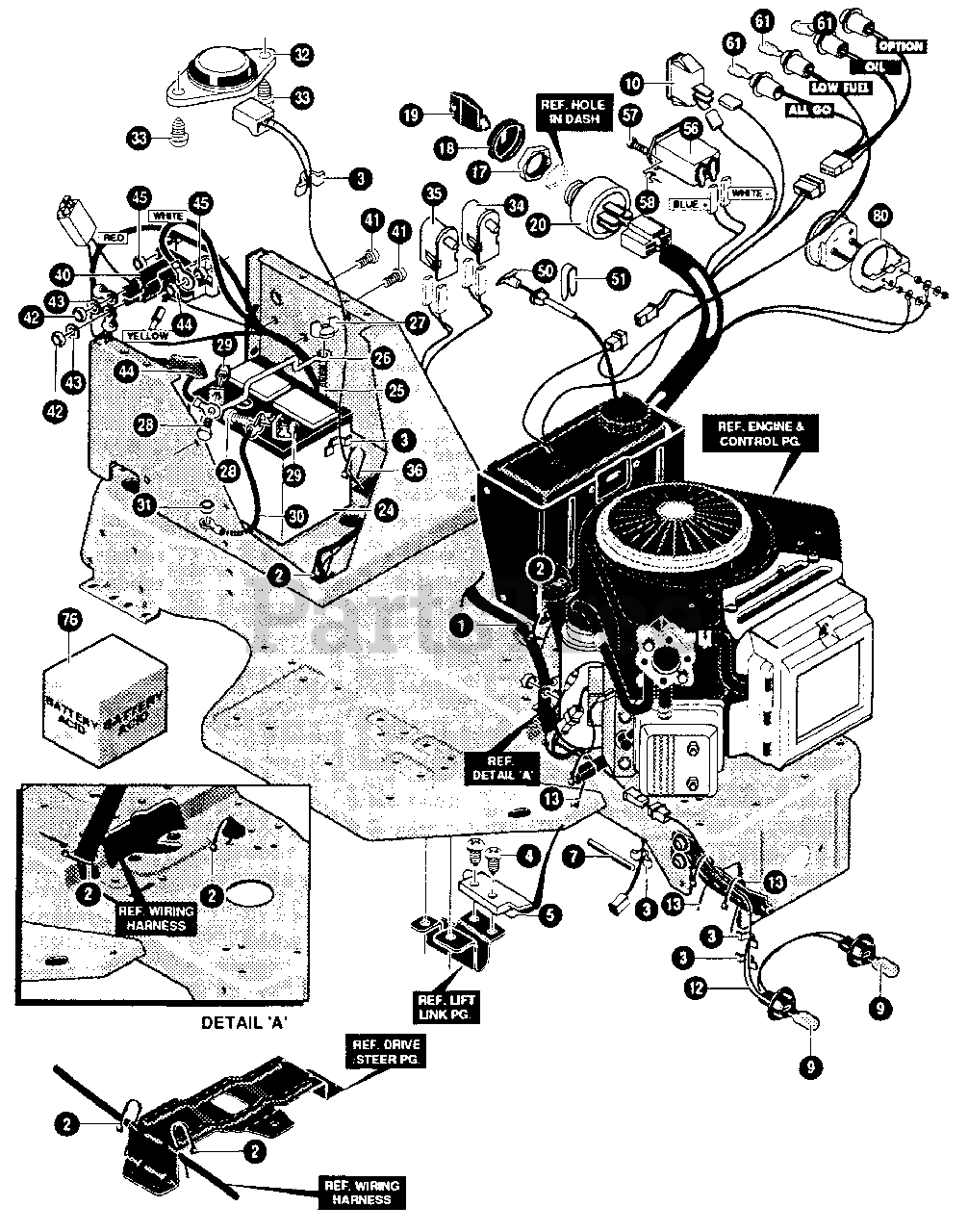

Electrical Parts Diagram

  • Title

1

Husqvarna 331930

HARN,WRNG EURO BS VTWN M/C AMP

$

$

Currently unavailable

2

Husqvarna 57444

TIE, CABLE BLACK NYLON 5.62L

$

$

Currently unavailable

3

Husqvarna 41482

PRESS CLIP, 1.380LG .255ID

$

$

Currently unavailable

4

Husqvarna 57220

SCREW, #12 X .50 PHPNHTAP BLK

$

$

Currently unavailable

5

Husqvarna 57476

SWITCH,SCR MNT DP NC NO BLK

$

$

Currently unavailable

7

UNKNOWN

$

$

Not available

9

Husqvarna 52572

BULB, HEADLAMP

$

$

Currently unavailable

10

Husqvarna 300334

LIGHT SWITCH ON,OFF PANEL MNT

$

$

Currently unavailable

12

Husqvarna 303064

ASSY,LIGHT WIRE-1/4 TURN

$

$

Currently unavailable

13

Husqvarna 57444

TIE. CABLE BLACK NYLON 5.62L

$

$

Currently unavailable

17

Husqvarna 327352

NUT, 5/8-8ACME DELTA FOR BOOT

$

$

Currently unavailable

18

Husqvarna 300194

BOOT, IGN SWITCH

$

$

Currently unavailable

19

Husqvarna 327350

KEY,IGNITION

$

$

Currently unavailable

20

Husqvarna 327355

SWITCH-IGN.(AFTER FIRE) 3 POSN

$

$

Currently unavailable

24

Husqvarna 302257

BATTERY, 12V

$

$

Currently unavailable

25

Husqvarna 57551

ROD, BATTERY

$

$

Currently unavailable

26

Husqvarna 302912

ROD, BATTERY TOP .209DIA

$

$

Currently unavailable

27

Husqvarna 325232

NUT, WING 1/4-20 NYLON

$

$

Currently unavailable

28

Husqvarna 180020

SCREW, 1/4-20X .75 HHC
(Superseded to 583098101)

$141.99

$

Usually ships in 3-10 days

0

29

Husqvarna 271172

NUT, 1/4-20 REGHEXKEPS

$

$

Currently unavailable

30

Husqvarna 55511

WIRE, GROUND, 12.5'

$

$

Currently unavailable

31

Husqvarna 271184

NUT, 5/16-18 HEXKEPS

$

$

Currently unavailable

32

Husqvarna 57547

SWITCH. SEAT

$

$

Currently unavailable

33

Husqvarna 160505

SCREW, 1/4-20X .38PHPNHMA

$

$

Currently unavailable

34

Husqvarna 326654

SWITCH, SNAP MNT NC 140 BLUE

$

$

Currently unavailable

35

Husqvarna 326653

SWITCH,SNAPMNT NO 055/ 116GRY

$

$

Currently unavailable

36

Husqvarna 57444

TIE. CABLE BLACK NYLON 5.62

$

$

Currently unavailable

40

Husqvarna 53716

SOLENOID

$

$

Currently unavailable

41

Husqvarna 187745

SCREW, 1/4-20X .75 HXSEMMA

$

$

Currently unavailable

42

Husqvarna 120368

NUT, 5/16-24 REGHEX

$

$

Currently unavailable

43

Husqvarna 138485

WASHER, EXLK .320X.61X 03

$

$

Currently unavailable

44

Husqvarna 271172

NUT, 1/4-20 REGHEXKEPS

$

$

Currently unavailable

45

Husqvarna 1502

NUT, 1/4-20 REGHEXCTRLK

$

$

Currently unavailable

50

Husqvarna 307113

CHOKE CONT BS TWIN ERO LONG

$

$

Currently unavailable

51

Husqvarna 314522

CLIP,CHOKE CONTROL

$

$

Currently unavailable

56

Husqvarna 304739

MINIATURE HOUR METER 4-40V DC

$

$

Currently unavailable

57

Husqvarna 320554

SCREW, #6-32X 50 PHPNMA CRSS

$

$

Currently unavailable

58

Husqvarna 271482

NUT, #6-32 HEXKEPS

$

$

Currently unavailable

61

Husqvarna 57769

BULB, INDICATOR

$

$

Currently unavailable

76

BATTERY ACID PACK, 80 OZ

$

$

Not available

80

Husqvarna 315902

AMMETER ASSY=>309373,121685

$

$
