LT 4140 G (E4014-030) - Husqvarna Lawn Tractor (1994-01) Engine Parts Diagram

Lawn Tractor

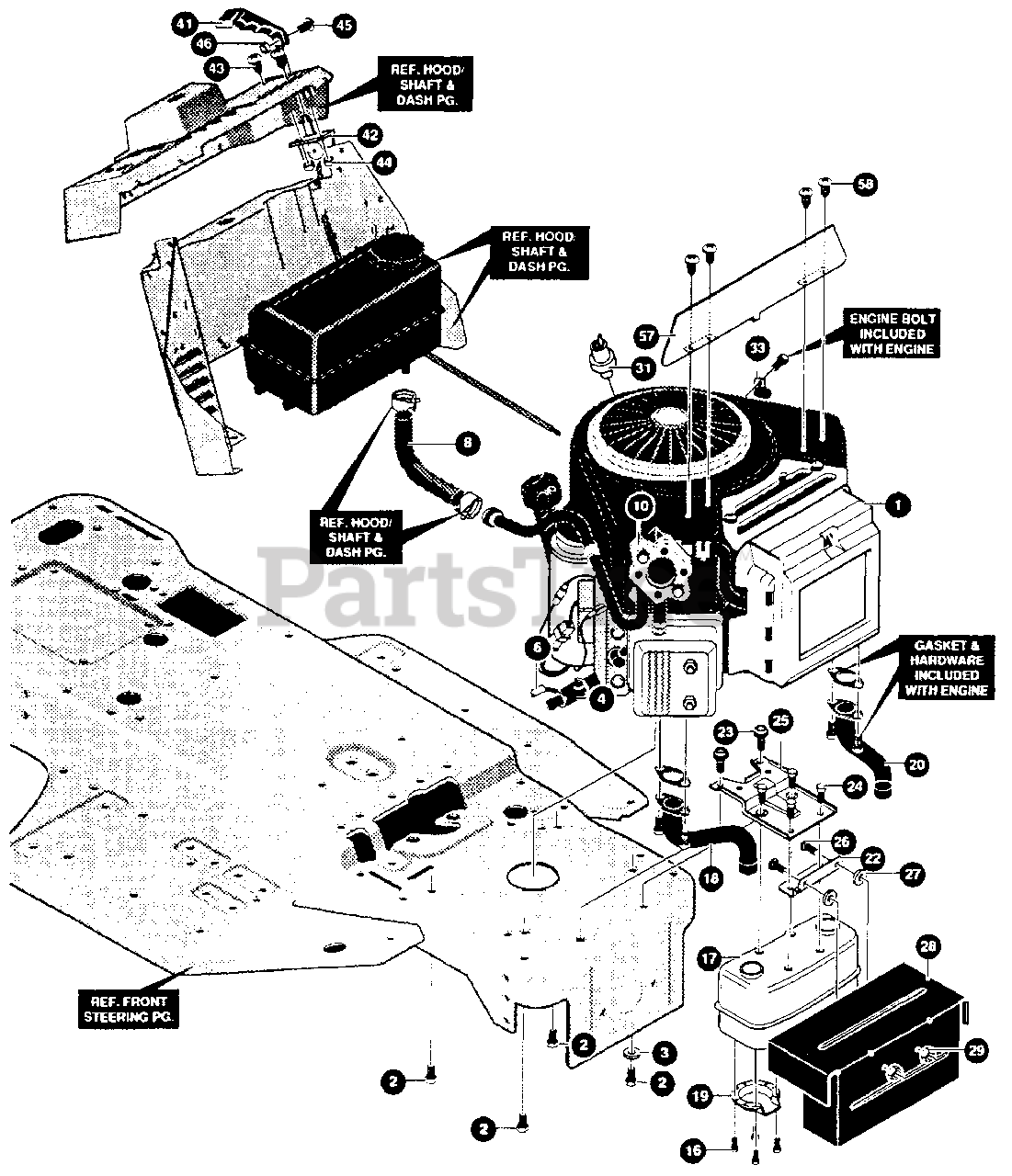

Engine Parts Diagram

  • Title

1

Husqvarna ~ENGINE

14-16HP VANGUARD

Note: (SEE ENGINE MANUAL)

$

$

Currently unavailable

2

Husqvarna 50947

SCREW, 3/8-16X1.25 WAHHTAPBLKP

$

$

Currently unavailable

3

Husqvarna 138489

WASHER, EXLK .384X.69X.04

$

$

Currently unavailable

4

Husqvarna 307174

NIPPLE 3/8-18 NPT X 4"

$

$

Currently unavailable

6

Husqvarna 47828

CAP, PIPE 3/8-18

$

$

Currently unavailable

8

Husqvarna 47452

TUBING,.25X.50X BULK GAS LINE

$

$

Currently unavailable

10

Husqvarna 315599

REGULATOR,VOLTAGE W/O SENSOR

$

$

Currently unavailable

16

Husqvarna 35287

SCREW, #8-32X .38 HHWATAP

$

$

Currently unavailable

17

Husqvarna 305553

MUFFLER 14/18 TWIN NLSN 22785C

$

$

Currently unavailable

18

Husqvarna 305554

EXHAUST TUBE 15HP RH B&S VANG

$

$

Currently unavailable

19

Husqvarna 56472

DEFLECTOR SIDE OUT

Note: (BS222573)

$

$

Currently unavailable

20

Husqvarna 305555

EXHAUST TUBE 15HP LH B&S VANG

$

$

Currently unavailable

22

Husqvarna 9796

BRACKET, TRANSAXLE

$

$

Currently unavailable

23

Husqvarna 35497

SCREW, 5/16-18X .50 WAHHTAP

$

$

Currently unavailable

24

Husqvarna 44811

SCREW, 1/4-20X .75 WAHHTAP

$

$

Currently unavailable

25

Husqvarna 304709853

BRACKET, MUFFLER

$

$

Currently unavailable

26

Husqvarna 57072

BOLT. 5/16-18X 5/16-18X.63 CARR
(Superseded to 532057072)

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 309436

PUSHNUT, 5/16 BOLT RETAINER

$

$

Currently unavailable

28

Husqvarna 320922853

SHIELD, MUFFLER HEAT TWIN

$

$

Currently unavailable

29

Husqvarna 55273

NUT, 5/16-18 HXWDFLLK

$

$

Currently unavailable

31

Husqvarna 314797

OIL SENSOR, B&S TWIN CYL

$

$

Currently unavailable

33

Husqvarna 57569

RETAINER,.31IDX.62X.03 WIRE

$

$

Currently unavailable

41

Husqvarna 304439

KNOB, THROTTLE CONTROL

$

$

Currently unavailable

42

Husqvarna 307362

THROTTLE CONTROL

$

$

Currently unavailable

43

Husqvarna 320553

SCREW, 10-24X.63PHPNMA

$

$

Currently unavailable

44

Husqvarna 308459

NUT, #10-24 HXHDNYLK

$

$

Currently unavailable

45

Husqvarna 159585

SCREW, #8-32X .38 PHPNMA

$

$

Currently unavailable

46

Husqvarna 120622

NUT, #8-32 REGHEX

$

$

Currently unavailable

57

Husqvarna 321306853

HEAT SHIELD V/G

$

$

Currently unavailable

58

Husqvarna 57366

SCREW, 10-16X 50 DRILLTITE

$

$

Currently unavailable
