LT 4140 G (E4014-030) - Husqvarna Lawn Tractor (1994-01) Hood Parts Diagram

Lawn Tractor

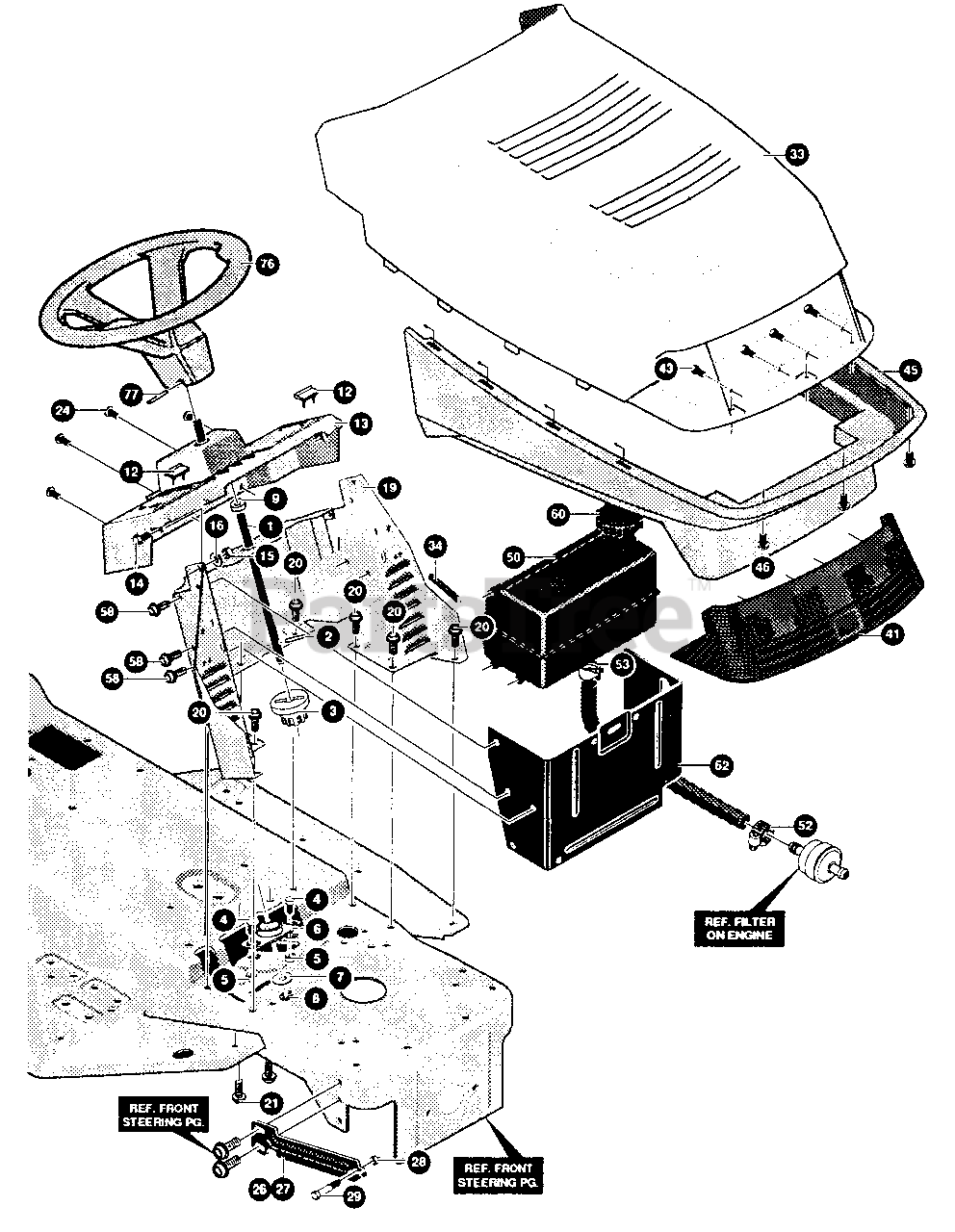

Hood Parts Diagram

  • Title

1

Husqvarna 302307

SHAFT, STEERING EURO LT SHORT

$

$

Currently unavailable

2

Husqvarna 302524

PIN DOWEL STR ERO LT

$

$

Currently unavailable

3

Husqvarna 302314

PINION, STEERING

$

$

Currently unavailable

4

Husqvarna 323731

SCREW, 5/16-24X.75 (TQ 30-35 FT#)

$

$

Currently unavailable

5

Husqvarna 71100

NUT, 5/16-24 HEXWDFLLK

$

$

Currently unavailable

6

Husqvarna 302498

BEARING, SFAL .500IDX.ODX.75

$

$

Currently unavailable

7

Husqvarna 2968

WASHER, FLAT .504X.75X.059

$

$

Not available

8

Husqvarna 20864

RING, RET E.39X.04 TRU5 133-50

$

$

Not available

9

Husqvarna 03228

BUSHING STR SHFT UPPER

$

$

Currently unavailable

12

Husqvarna 321810

BUMPER, HOOD/DASH EURO TOP

$

$

Currently unavailable

13

Husqvarna 331379

DASH,TALL

$

$

Currently unavailable

14

Husqvarna 180020

SCREW, 1/4-20X .75 HHC
(Superseded to 583098101)

$141.99

$

Usually ships in 3-10 days

0

15

Husqvarna 1502

NUT, 1/4-20 REGHEXCTRLK

$

$

Currently unavailable

16

Husqvarna 120392

WASHER. FLAT .281X .63X.065

$

$

Currently unavailable

19

Husqvarna 302331830

DASH, LOWER

$

$

Currently unavailable

20

Husqvarna 35497

SCREW, 5/16-18X .50 WAHHTAP

$

$

Currently unavailable

21

Husqvarna 45263

SCREW, 5/16-18X .37 WAHHTAP

$

$

Currently unavailable

23

Husqvarna 995346

SCREW, 1/4-20X .50 WAHHTAP

$

$

Currently unavailable

24

Husqvarna 305850

SCREW, 1/4-20X.50PHPNTAP

$

$

Currently unavailable

26

Husqvarna 308898853

BRACKET, HOOD RH

$

$

Currently unavailable

27

Husqvarna 308897853

BRACKET, HOOD LH

$

$

Currently unavailable

28

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

29

Husqvarna 25086

BOLT, .500X.375 HHSH 5/16-18

$

$

Currently unavailable

33

Husqvarna 332133

HOOD, UPPER

$

$

Currently unavailable

34

Husqvarna 52151

EDGING, WIDE BLK

$

$

Currently unavailable

41

Husqvarna 306858

LENS, SMOKED GREY

$

$

Currently unavailable

43

Husqvarna 300302

SCREW. #10 X 50 HHTAPPST

$

$

Currently unavailable

45

Husqvarna 331184

GRILLE

$

$

Currently unavailable

46

Husqvarna 318304

SCREW, 1/4-14X.75PHPNHDTAP

$

$

Currently unavailable

50

Husqvarna 305820

ASSY GAS TANK 1.5 GAL

$

$

Currently unavailable

52

Husqvarna 47345

CLAMP, FUEL LINE

$

$

Currently unavailable

53

Husqvarna 47345

CLAMP,HOSE SCREW TYPE

$

$

Currently unavailable

58

Husqvarna 300303

SCREW, .25X.75X.51 HHWAPLASTITE

$

$

Currently unavailable

60

Husqvarna 12501

CAP FUEL 2.5" THROAT

$

$

Currently unavailable

62

Husqvarna 324795853

HEAT SHIELD ERO 1.5 & 3 GAL

$

$

Currently unavailable

76

Husqvarna 330847

STEERING WHEEL

$

$

Currently unavailable

77

Husqvarna 456378

PIN SPRING.250DIAX2.00LG HVPL

$

$

Currently unavailable
