LT 4140 G (E4014-030) - Husqvarna Lawn Tractor (1994-01) Rear End/Rear Steering Parts Diagram

Lawn Tractor

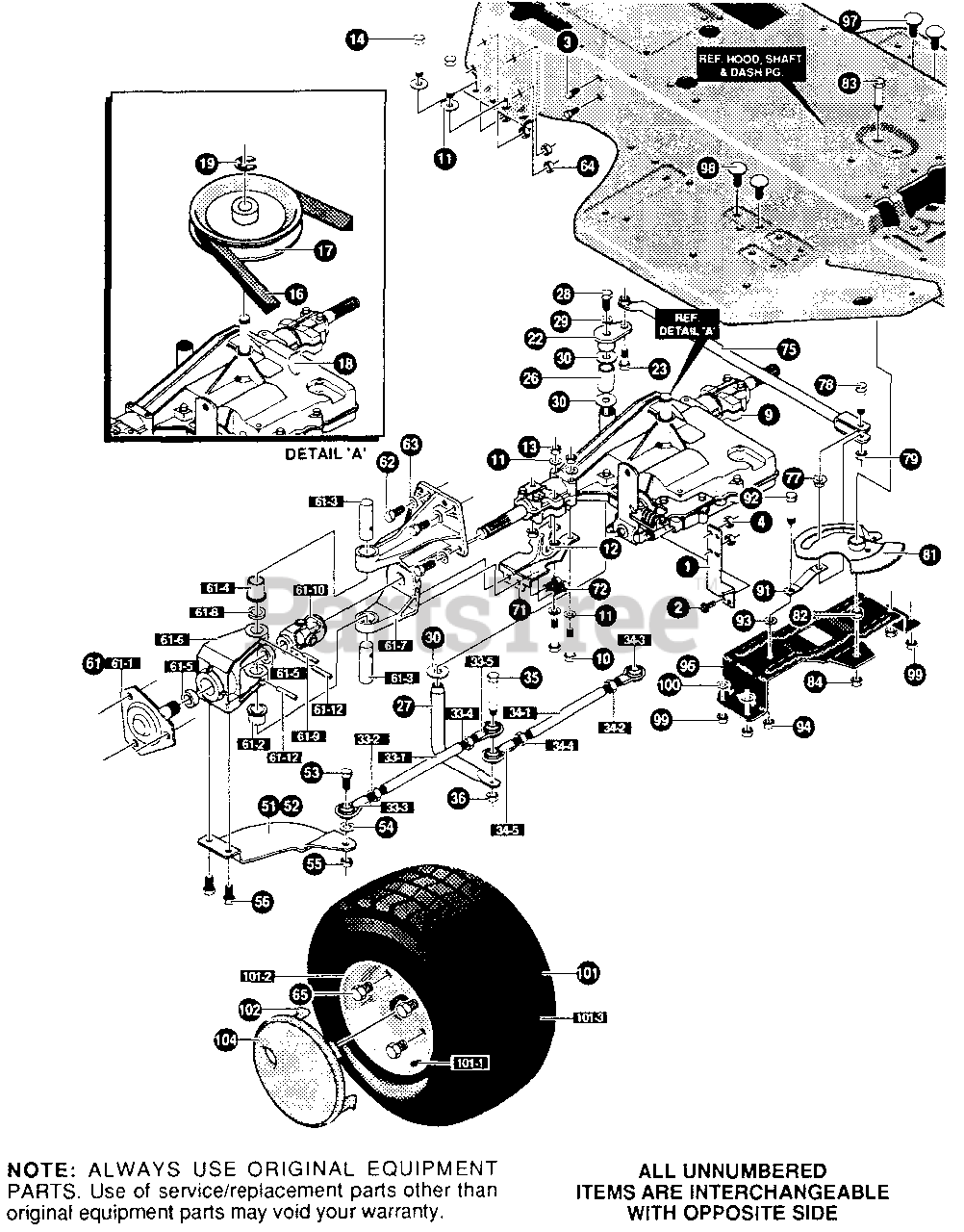

Rear End/Rear Steering Parts Diagram

  • Title

1

Husqvarna 321382934

BRACKET, STABILIZER EURO

$

$

Currently unavailable

2

Husqvarna 35498

SCREW, 5/16-18X .75 WAHHTAP

$

$

Currently unavailable

3

Husqvarna 180077

SCREW. 5/16-18X .75 HHC

$

$

Currently unavailable

4

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

9

TRANSAXLE, 6SP4WSP930-036

Note: CONTACT YOUR NEAREST TRANSAXLE DEALER FOR PARTS AND SERVICE.

$

$

Not available

10

Husqvarna 180091

SCREW, 5/16-18X2.50 HHC
(Superseded to 532180091)

$2.99

$

Usually ships in 3-10 days

0

11

Husqvarna 120393

WASHER, FLAT .344X .69X.065

$

$

Currently unavailable

12

Husqvarna 44108

NUT, 5/16-18 HWDFLCTRLK

$

$

Currently unavailable

13

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

14

Husqvarna 180091

SCREW, 5/16-18X2.50 HHC
(Superseded to 532180091)

$2.99

$

Usually ships in 3-10 days

0

16

Husqvarna 303241

BELT, V 4L 90.00 LG

$

$

Currently unavailable

17

Husqvarna 303109

PULLEY, 6.6 OD V4L T/A

$

$

Currently unavailable

18

Husqvarna 50795

KEY, HI-PRO 606 .75DIAX.187WD

$

$

Currently unavailable

19

Husqvarna 22053

RING, RETEX.58X.035TRU5100-62

$

$

Currently unavailable

22

Husqvarna 308719

PIVOT, STEERING

$

$

Currently unavailable

23

Husqvarna 12319

BOLT, .562X.340 HHSH 3/8-24

$

$

Currently unavailable

26

Husqvarna 304115

SPACER, STEERING SHAFT

$

$

Currently unavailable

27

Husqvarna 308720

SHAFT, STEERING PIVOT (ZN)

$

$

Currently unavailable

28

Husqvarna 421051

SCREW, 5/16-24X 1.00 HHC
(Superseded to 583384901)

$61.99

$

Usually ships in 3-10 days

0

29

Husqvarna 45602

WASHER, FLAT .333X .87X.119

$

$

Currently unavailable

30

Husqvarna 25177

WASHER, FLAT .765X1.19X.048

$

$

Currently unavailable

33

Husqvarna 323634

TIE ROD, ASSYRH EURO 4WS &LF STD

$

$

Currently unavailable

33-1

Husqvarna 308447

ROD, TIE 1/2"D X 8.12LG

$

$

Currently unavailable

33-2

Husqvarna 308399

NUT, 3/8-24 LH THD REGHJAM

$

$

Currently unavailable

33-3

Husqvarna 308384

BALL JOINT LH 3/8-24

$

$

Currently unavailable

33-4

Husqvarna 124925

NUT, 3/8-24 REGHEXJAM

$

$

Currently unavailable

33-5

Husqvarna 304260

BALL JOINT,RH 3/8-24

$

$

Currently unavailable

34

Husqvarna 323635

TIE ROD, ASSYLH EURO 4WS & LF STD

$

$

Currently unavailable

34-1

Husqvarna 308446

ROD, TIE 1/2"D X 9.75LG

$

$

Currently unavailable

34-2

Husqvarna 308399

NUT, 3/8-24 LH THD REGHJAM

$

$

Currently unavailable

34-3

Husqvarna 308384

BALL JOINT LH 3/8-24

$

$

Currently unavailable

34-4

Husqvarna 124925

NUT, 3/8-24 REGHEXJAM

$

$

Currently unavailable

34-5

Husqvarna 304260

BALL JOINT,RH 3/8-24

$

$

Currently unavailable

35

Husqvarna 181646

SCREW, 3/8-24X1.75 HHC

$

$

Currently unavailable

36

Husqvarna 412349

NUT, 3/8-24 HXCTRLK

$

$

Not available

51

Husqvarna 304120853

ARM REAR WHL STR (FER) R.H. 1

$

$

Currently unavailable

52

Husqvarna 304121853

ARM, REAR WHEEL STEER L.H

$

$

Currently unavailable

53

Husqvarna 181639

SCREW, 3/8-24X1.25 HHC

$

$

Currently unavailable

54

Husqvarna 120382

WASHER. REGSPTLK.393X.68X.10

$

$

Currently unavailable

55

Husqvarna 412349

NUT, 3/8-24 HXCTRLK

$

$

Not available

56

Husqvarna 47792

SCREW, 3/8-16X1.00 WAHHTAP

$

$

Not available

61

Husqvarna 323743

U-JOINT, ASS'Y 4-WS LT DUTY

$

$

Currently unavailable

61-1

Husqvarna 12280830

HUB ASSEMBLY

$

$

Currently unavailable

61-2

Husqvarna 324578

BEARING, FLSH .752IDX .937ODX.75

$

$

Currently unavailable

61-3

Husqvarna 12289

PIN, STEERING HINGE

$

$

Currently unavailable

61-4

Husqvarna 324578

BEARING. FLSH IDX ODX

$

$

Currently unavailable

61-5

Husqvarna 12325

BEARING. BALL 6203-2AA-3/4

$

$

Currently unavailable

61-6

Husqvarna 12465

BRACKET, STEERING PIVOT

$

$

Currently unavailable

61-7

Husqvarna 12466

BRACKET, STR PIVOT

$

$

Currently unavailable

61-8

Husqvarna 21682

WASHER, FLAT .765X1.25X.042PL

$

$

Currently unavailable

61-9

Husqvarna 36311

PIN, GROOVED .250 DIAX1.50LG

$

$

Currently unavailable

61-10

Husqvarna 320531

U-JOINT ASSEMBLY W/ZERK (LONG)

$

$

Currently unavailable

61-12

Husqvarna 456722

PIN, SPRING.250DIAX1.50LG HVPL

$

$

Currently unavailable

62

Husqvarna 180079

SCREW, 5/16-18X1.00 HHC

$

$

Currently unavailable

63

Husqvarna 120393

WASHER, FLAT .344X .69X.065

$

$

Currently unavailable

64

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

65

Husqvarna 181683

SCREW, 1/2-20X .50 HHC

$

$

Currently unavailable

71

Husqvarna 303222853

BRACKET X-AXLE MTG 4WS

$

$

Currently unavailable

72

Husqvarna 35498

SCREW, 5/16-18X .75 WAHHTAP

$

$

Currently unavailable

75

Husqvarna 302593

ROD R WHL STR 4WS(930-6)

$

$

Currently unavailable

77

Husqvarna 304116

CAM YOKE ROLLER

$

$

Currently unavailable

78

Husqvarna 304122

BOLT, .625 X1.175HHSH

$

$

Currently unavailable

79

Husqvarna 274654

NUT, 1/2-20 REGHXCTRLK

$

$

Currently unavailable

81

Husqvarna 302877

ASSY SECTOR GEAR 4WS

$

$

Currently unavailable

82

Husqvarna 302878

BEARING, SLEV. IDX. ODX

$

$

Currently unavailable

83

Husqvarna 181709

SCREW, 1/2-20X2.50 HHC

$

$

Not available

84

Husqvarna 274654

NUT, 1/2-20 REGHXCTRLK

$

$

Currently unavailable

91

Husqvarna 302594

FOLLOWER, ROLLER

$

$

Currently unavailable

92

Husqvarna 302588

BOLT, .265X .800 HHSH 3/8-24

$

$

Currently unavailable

93

Husqvarna 446363

WASHER. FLAT .375X .88X.082

$

$

Currently unavailable

94

Husqvarna 412349

NUT, 3/8-24 HXCTRLK

$

$

Not available

96

Husqvarna 302583853

PLATE, PIVOT STEERING EURO

$

$

Currently unavailable

97

Husqvarna 35497

SCREW, 5/16-18X .50 WAHHTAP

$

$

Currently unavailable

98

Husqvarna 35498

SCREW, 5/16-18X .75 WAHHTAP

$

$

Currently unavailable

99

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

100

Husqvarna 446363

WASHER, FLAT .375X .88X.082

$

$

Currently unavailable

101

Husqvarna 304259

TIRE & RIM,20X10.00-8 TURF 661

$

$

Currently unavailable

101

Husqvarna 24167

VALVE STEM

$

$

Currently unavailable

101

Husqvarna 12467

RIM, WHEEL

$

$

Currently unavailable

101

Husqvarna 319686

TIRE, 20X10.00-8

$

$

Currently unavailable

101-1

UNKNOWN

$

$

Not available

101-2

UNKNOWN

$

$

Not available

101-3

UNKNOWN

$

$

Not available

102

Husqvarna 306669

CLIP, HUBCAP TINN #C25467-017-4

$

$

Currently unavailable

104

Husqvarna 306570

HUB CAP, 8" EURO

$

$

Currently unavailable
