LT 4140 G (E4014-030) - Husqvarna Lawn Tractor (1994-01) Steering Parts Diagram

Lawn Tractor

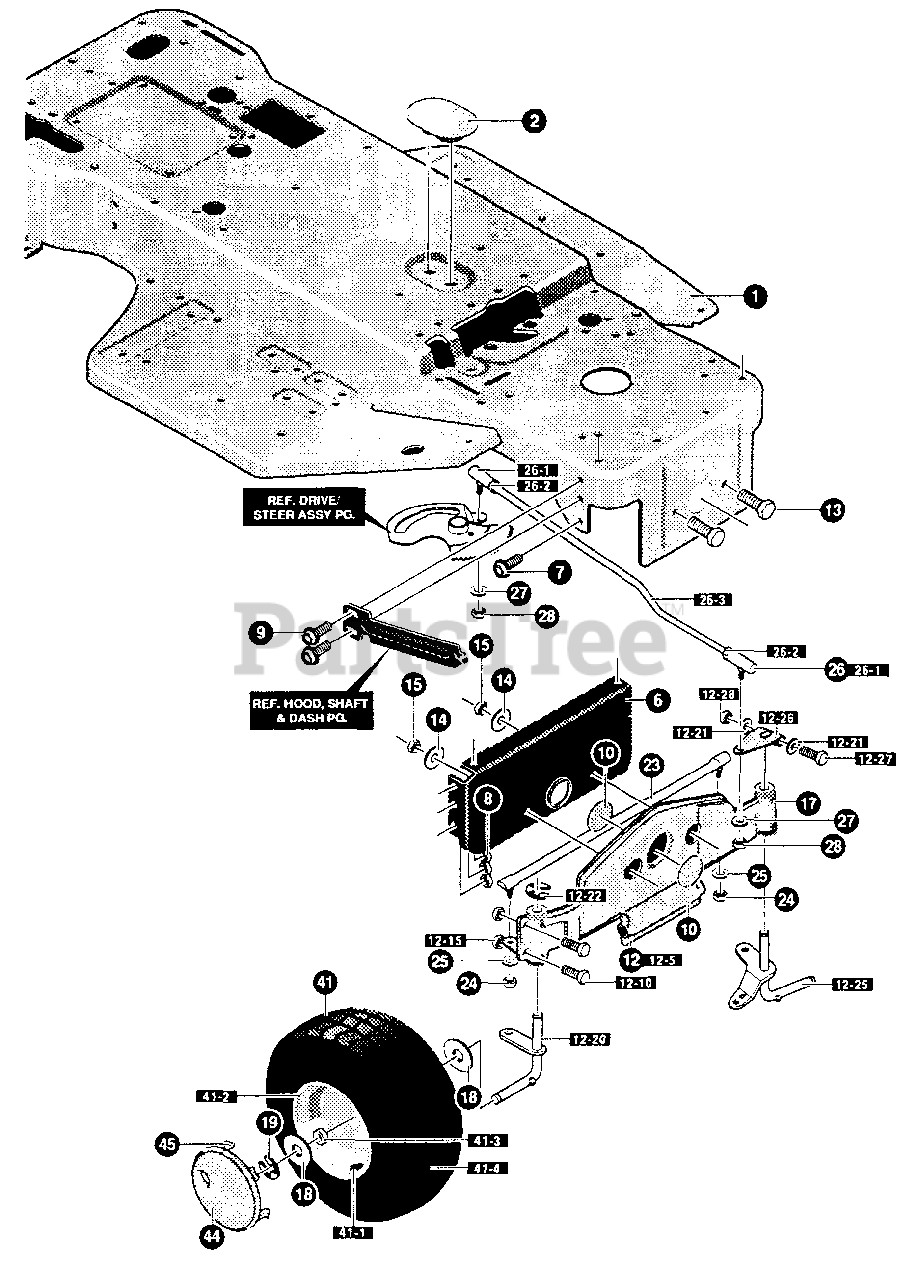

Steering Parts Diagram

  • Title
1

Husqvarna 331674830

FRAME, EURO

$

$

Currently unavailable

2

Husqvarna 305280

COVER,SECTOR BOLT PLAS GREY

$

$

Currently unavailable

6

Husqvarna 302321853

BRACKET, FRONT AXLE SUPPORT

$

$

Currently unavailable

7

Husqvarna 56030

SCREW, 5/16-18X.75WDFLLK

$

$

Currently unavailable

8

Husqvarna 55273

NUT, 5/16-18 HXWDFLLK

$

$

Currently unavailable

9

Husqvarna 53652

SCREW, 5/16-18X.75 HXWDFL

$

$

Currently unavailable

10

Husqvarna 307112

PLUG,FRONT AXLE 1.938DIAX.062"

$

$

Currently unavailable

12

SUB-ASSY FR AX ERO LT SHORT

$

$

Not available

12-5

Husqvarna 310670

AXLE,ASSY FRONT WELD BLK

$

$

Currently unavailable

12-10

Husqvarna 180077

SCREW, 5/16-18X.75 HHC

$

$

Currently unavailable

12-15

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

12-20

Husqvarna 305340

ASSY SPDLE RH EROLT

$

$

Currently unavailable

12-21

Husqvarna 996416

WASHER, FLAT .391X1.00X.125

$

$

Currently unavailable

12-22

Husqvarna 36625

RING, RETEX.57X.05TRU5133-75

$

$

Currently unavailable

12-25

Husqvarna 305339

ASSY SPDLE LH EROLT

$

$

Currently unavailable

12-26

Husqvarna 317019

ARM STEERING UPPER BLACK

$

$

Currently unavailable

12-27

Husqvarna 180134

SCREW, 3/8-16X2.50 HHC
(Superseded to 532180134)

$

$

Not available

12-28

Husqvarna 1499

NUT, 3/8-16 REGHXCTRLK

$

$

Currently unavailable

13

Husqvarna 180138

SCREW, 3/8-16X3.00 HHC

$

$

Currently unavailable

14

Husqvarna 2483

WASHER .39IDX1.25DX.07 BELLVIL

$

$

Currently unavailable

15

Husqvarna 1499

NUT, 3/8-16 REGHXCTRLK

$

$

Currently unavailable

17

Husqvarna 706

ZERK, GREASE FITTING

$

$

Currently unavailable

18

Husqvarna 642

WASHER, FLAT .755X1.31X.075

$

$

Currently unavailable

19

Husqvarna 36625

RING, RETEX .57X.05TRU5133-75

$

$

Currently unavailable

23

Husqvarna 300328

TIE ROD.625DIA GRND ENGAGER

$

$

Currently unavailable

24

Husqvarna 120369

NUT, 3/8-24 REGHEX

$

$

Currently unavailable

25

Husqvarna 120382

WASHER, REGSPTLK.393X.68X.10

$

$

Currently unavailable

26

Husqvarna 302908

LINK, ASSY,625DIA DRAG LT 4WS

$

$

Currently unavailable

26-1

Husqvarna 57158

BALL JOINT 3/8 THD SHORT STUD

$

$

Currently unavailable

26-2

Husqvarna 124925

NUT, 3/8-24 REGHEXJAM

$

$

Currently unavailable

26-3

Husqvarna 302907

LINK, .625DIA DRAG LT 4WS

$

$

Currently unavailable

27

Husqvarna 120382

WASHER, REGSPTLK.393X.68X.10

$

$

Currently unavailable

28

Husqvarna 124925

NUT, 3/8-24 REGHEXJAM

$

$

Currently unavailable

41

Husqvarna 321515

TIRE & RIM, PU 15X6.OX6 WHI

$

$

Currently unavailable

41-1

Husqvarna 24167

VALVE STEM

$

$

Currently unavailable

41-2

Husqvarna 321516

RIM, WHEEL

$

$

Currently unavailable

41-3

Husqvarna 314416

BEARING, FL

$

$

Currently unavailable

41-4

Husqvarna 316702

TIRE 15X6.00X6

$

$

Currently unavailable

44

Husqvarna 304444

HUBCAP, 6" EURO GREY

$

$

Currently unavailable

45

Husqvarna 306669

CLIP,HUBCAP TINN #C25467-017-4

$

$

Currently unavailable
