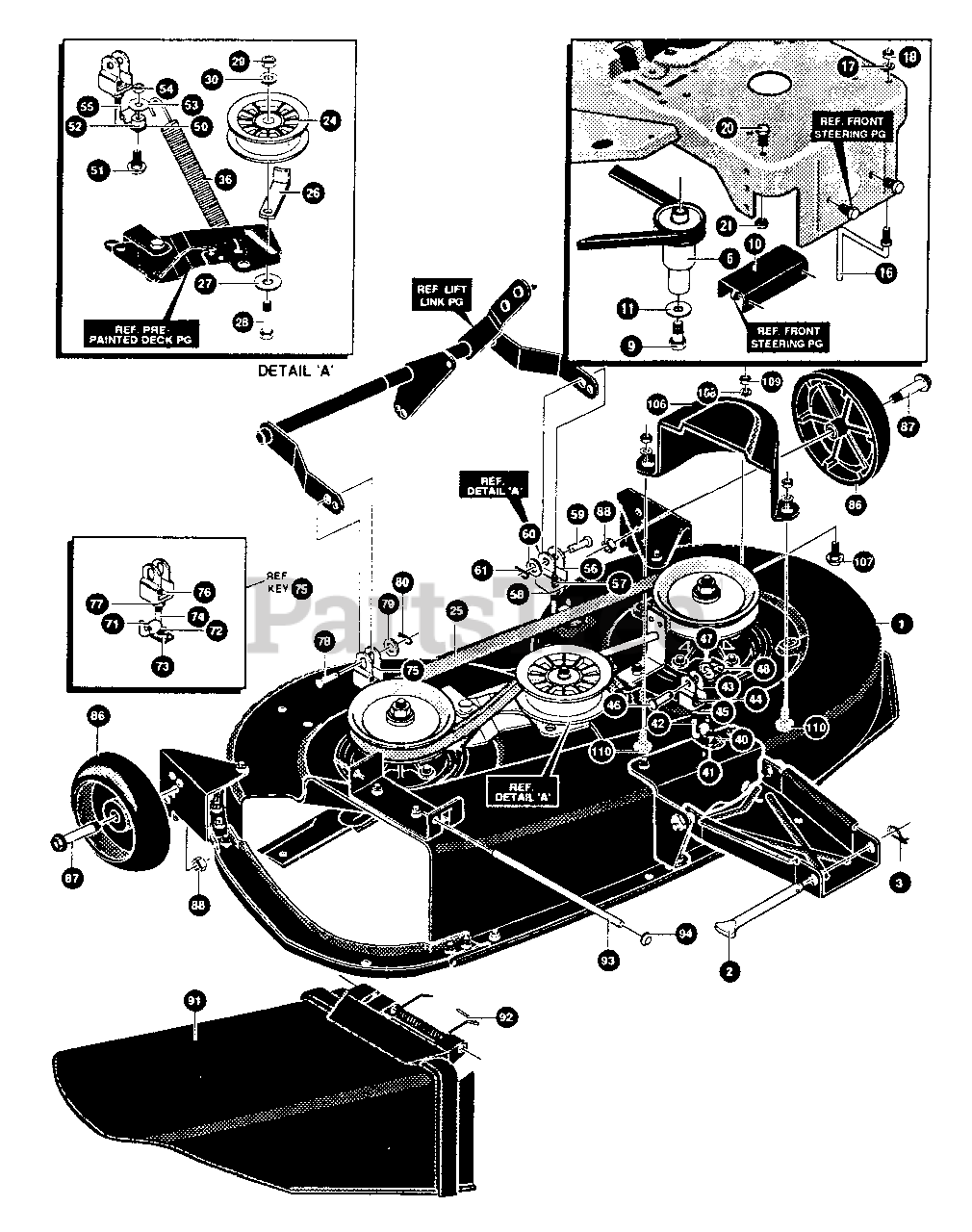

LT 4140 H (E4014-040) - Husqvarna Lawn Tractor (1994-01) Deck (B) Parts Diagram

Lawn Tractor

Deck (B) Parts Diagram

  • Title

1

Husqvarna 328051830

40 DECK EC,LL,ZERKS,W/O-ROLL

$

$

Currently unavailable

2

Husqvarna 302963

ROD, DRAWBAR

$

$

Currently unavailable

3

Husqvarna 56180

PIN, HAIR .091 DIAX1.62LG

$

$

Currently unavailable

6

Husqvarna 332351

PULLEY, ENGINE EL/CL EURO LT

$

$

Currently unavailable

9

UNKNOWN

$

$

Not available

10

Husqvarna 309011853

BRACKET, CLUTCH STOP 40/46 E/C

$

$

Currently unavailable

11

UNKNOWN

$

$

Not available

16

Husqvarna 300440

BELT GUIDE

$

$

Currently unavailable

17

Husqvarna 138538

WASHER, REGINTLK .320X.61X.03

$

$

Currently unavailable

18

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

20

Husqvarna 180077

SCREW, 5/16-18X.75

$

$

Currently unavailable

21

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

24

Husqvarna 310326

PULLEY, IDLER BFF 4.00 WIDE

$

$

Currently unavailable

25

Husqvarna 305148

BELT, V 5L 83.0 40" DECK

$

$

Currently unavailable

26

Husqvarna 1346

RETAINER, BELT

$

$

Currently unavailable

27

Husqvarna 446363

WASHER, FLAT .375X .88X .082

$

$

Currently unavailable

28

Husqvarna 57325

BOLT, 3/8-16X2.00 CARR

$

$

Currently unavailable

29

Husqvarna 120377

NUT, 3/8-16 REGHEX

$

$

Currently unavailable

30

Husqvarna 120382

WASHER, REGSPTLK .393X.68X.10

$

$

Currently unavailable

36

Husqvarna 329364

SPRING, 40&43" (12 TO 20 HP EC)

$

$

Currently unavailable

40

Husqvarna 319868

CLIP, 40/46 HANGER

$

$

Currently unavailable

41

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

42

Husqvarna 309615

ROD, 40" REAR DECK LIFT

$

$

Currently unavailable

43

Husqvarna 304443

CLEVIS

$

$

Currently unavailable

44

Husqvarna 109527

NUT, 1/2-13 .458 SQ

$

$

Currently unavailable

45

Husqvarna 120238

NUT, 1/2-13 HEXJAM

$

$

Currently unavailable

46

Husqvarna 300317

PIN, CLEVIS .375DIA X .81 LG

$

$

Currently unavailable

47

Husqvarna 120394

WASHER, FLAT .406X.81X.065

$

$

Currently unavailable

48

Husqvarna 56180

PIN, HAIR .091 DIAX1.62LG

$

$

Currently unavailable

50

Husqvarna 319868

CLIP, 40/46 HANGER

$

$

Currently unavailable

51

Husqvarna 126358

CARR BOLT, 5/16-18X1.00

$

$

Currently unavailable

52

Husqvarna 50520

SPACER

$

$

Currently unavailable

53

Husqvarna 35214

FLATWASHER, .328X1.06X.062

$

$

Currently unavailable

54

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

55

Husqvarna 312302

ROD, 40" REAR DECK LIFT

$

$

Currently unavailable

56

Husqvarna 304443

CLEVIS

$

$

Currently unavailable

57

Husqvarna 109527

NUT, 1/2-13 .458 SQ

$

$

Currently unavailable

58

Husqvarna 120238

NUT, 1/2-13 HEXJAM

$

$

Currently unavailable

59

Husqvarna 300317

PIN, CLEVIS .375DIA X .81 LG

$

$

Currently unavailable

60

Husqvarna 120394

FLATWASHER, .406X.81X.065

$

$

Currently unavailable

61

Husqvarna 56180

PIN, HAIR .091 DIAX1.62LG

$

$

Currently unavailable

71

Husqvarna 319868

CLIP, 40/46 HANGER

$

$

Currently unavailable

72

Husqvarna 180077

SCREW, 5/16-18X.75 HHC

$

$

Currently unavailable

73

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

74

Husqvarna 309615

ROD, 40" REAR DECK LIFT

$

$

Currently unavailable

75

Husqvarna 305283

CLEVIS SLOT EURO

$

$

Currently unavailable

76

Husqvarna 109527

NUT, 1/2-13 .458 SQ

$

$

Currently unavailable

77

Husqvarna 120238

AUT, 1/2-13 HEXJAM

$

$

Currently unavailable

78

Husqvarna 300317

PIN, CLEVIS .375DIA X .81 LG

$

$

Currently unavailable

79

Husqvarna 120394

WASHER FLAT .406X.81X065

$

$

Currently unavailable

80

Husqvarna 56180

PIN, HAIR .091 DIAX1.62LG

$

$

Currently unavailable

86

Husqvarna 302611

GAUGE WHEEL,EUR06000DX1.38WD

$

$

Currently unavailable

87

Husqvarna 23763

BOLT, .500X1.390 HHSH 3/8-16

$

$

Currently unavailable

88

Husqvarna 1499

NUT, 3/8-16 REGHXCTRLK

$

$

Currently unavailable

91

Husqvarna 304422

CHUTE DEFLECTOR 40",42"&43"

$

$

Currently unavailable

92

Husqvarna 314975

SPRING TORSION CHUTE DEFLECTOR

$

$

Currently unavailable

93

Husqvarna 304424

ROD,PIVOT DECK .312DX7.25

$

$

Currently unavailable

94

Husqvarna 3535

NUT, PUSH ON CAP .312 OD

$

$

Currently unavailable

106

Husqvarna 328257

GUARD, BELT LH PLASTIC

$

$

Currently unavailable

107

Husqvarna 180077

SCREW, 5/16-18X.75 HHC

$

$

Currently unavailable

108

Husqvarna 120393

WASHER, FLAT .344X.69X.065

$

$

Currently unavailable

109

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

110

Husqvarna 57072

BOLT, 5/16-18X.63 CARR
(Superseded to 532057072)

$6.49

$

Usually ships in 3-10 days
