LT 4140 - Husqvarna Lawn Tractor (1995-03) STEERING Parts Diagram

Lawn Tractor

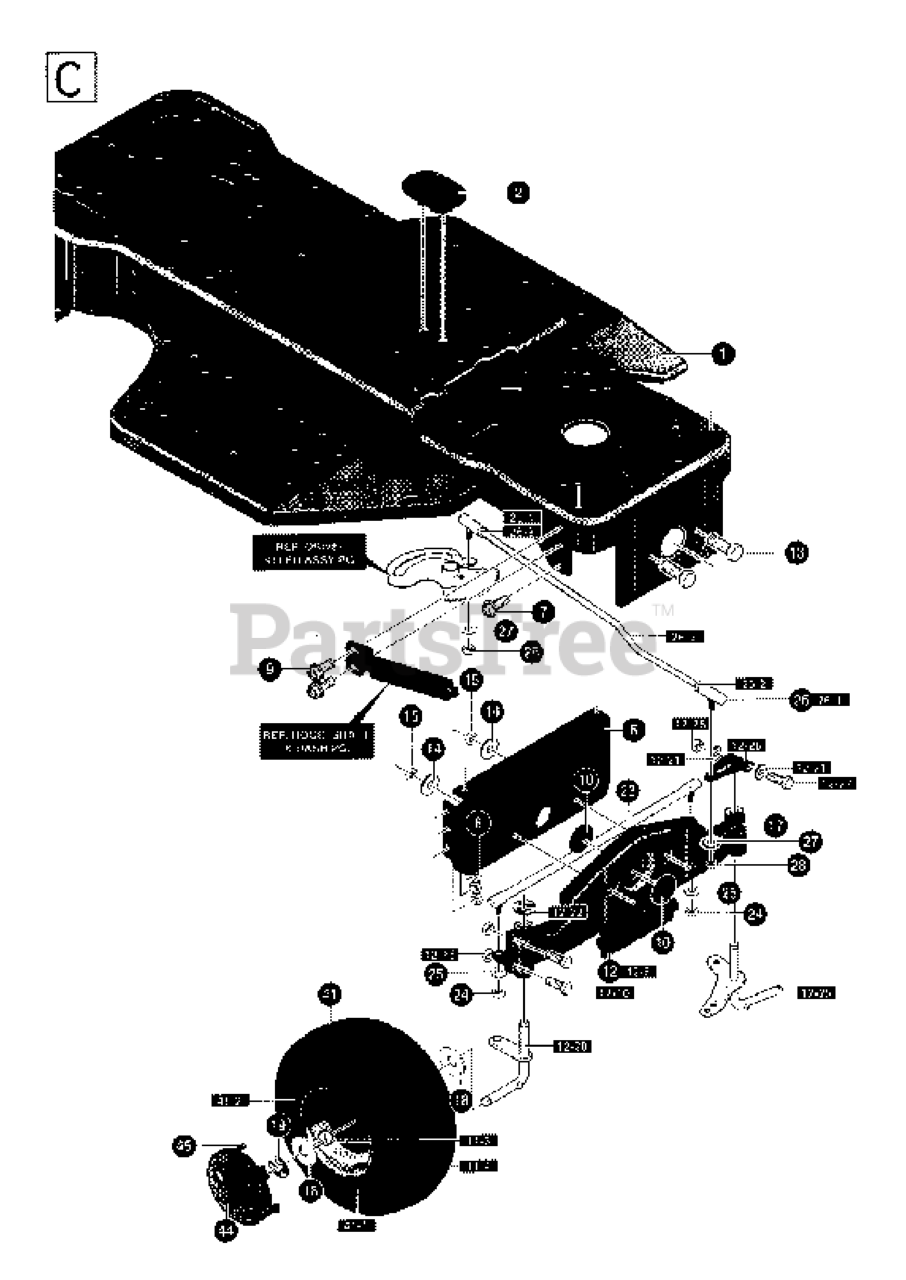

STEERING Parts Diagram

  • Title

41-2

Husqvarna 533321516

NEEDS DESCRIPTION

$

$

Currently unavailable

19

Husqvarna 533036625

RETAINING RING

$

$

Not available

7

Husqvarna 533056030

SCREW
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

41-3

Husqvarna 533315516

NEEDS DESCRIPTION

$

$

Currently unavailable

45

Husqvarna 533306669

CLAMP

$

$

Not available

12-27

Husqvarna 533180134

SCREW
(Superseded to 874760640)

$

$

Not available

17

Husqvarna 533000706

NIPPLE

$

$

Not available

41-4

Husqvarna 533316702

NEEDS DESCRIPTION

$

$

Currently unavailable

12-28

Husqvarna 533001499

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

26-1

Husqvarna 533057158

BALL JOINT

$

$

Not available

9

Husqvarna 533053652

SCREW
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 533124925

NUT
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 533321515

WHEEL

$

$

Not available

25

Husqvarna 533120382

WASHER 3/8ä

$

$

Not available

23

Husqvarna 533300328

ROD

$

$

Not available

15

Husqvarna 533001499

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

12-15

Husqvarna 533001498

NUT
(Superseded to 601000059)

$6.99

$

In Stock, only 2 left!

0

2

Husqvarna 533305280

COVER

$

$

Not available

44

Husqvarna 533304444

NEEDS DESCRIPTION

$

$

Currently unavailable

41-1

Husqvarna 533024167

VALVE STEM

$

$

Not available

12-21

Husqvarna 533996416

WASHER, FLAT
(Superseded to 819131614)

$6.49

$

Usually ships in 3-10 days

0

26-3

Husqvarna 533302907

ARM

$

$

Not available

12-10

Husqvarna 533180077

SCREW
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

12-5

Husqvarna 533310670

NEEDS DESCRIPTION

$

$

Currently unavailable

14

Husqvarna 533002483

WASHER

$

$

Not available

12-25

Husqvarna 533305339

SHAFT

$

$

Not available

6

Husqvarna 533302321

NEEDS DESCRIPTION

$

$

Currently unavailable

12-26

Husqvarna 533317019

NEEDS DESCRIPTION

$

$

Currently unavailable

12-22

Husqvarna 533036625

RETAINING RING

$

$

Not available

8

Husqvarna 533055273

NUT

$

$

Not available

27

Husqvarna 533120382

WASHER 3/8ä

$

$

Not available

24

Husqvarna 533120369

NUT
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 533307112

PLUG, FRONT AXLE

$

$

Not available

26-2

Husqvarna 533124925

NUT
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

12-20

Husqvarna 533305340

SHAFT

$

$

Not available

13

Husqvarna 874780648

BOLT.HEX.FIN.3/8-16 X 3.GR5

$

$

Not available

18

Husqvarna 533000642

WASHER
(Superseded to 819251816)

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 533302908

ARM
(Superseded to 533302907)

$

$

Not available
