LT 4216 (13AM79KS897) - Columbia 42" Lawn Tractor (2014) B&S Model 28 Parts Diagram

42" Lawn Tractor

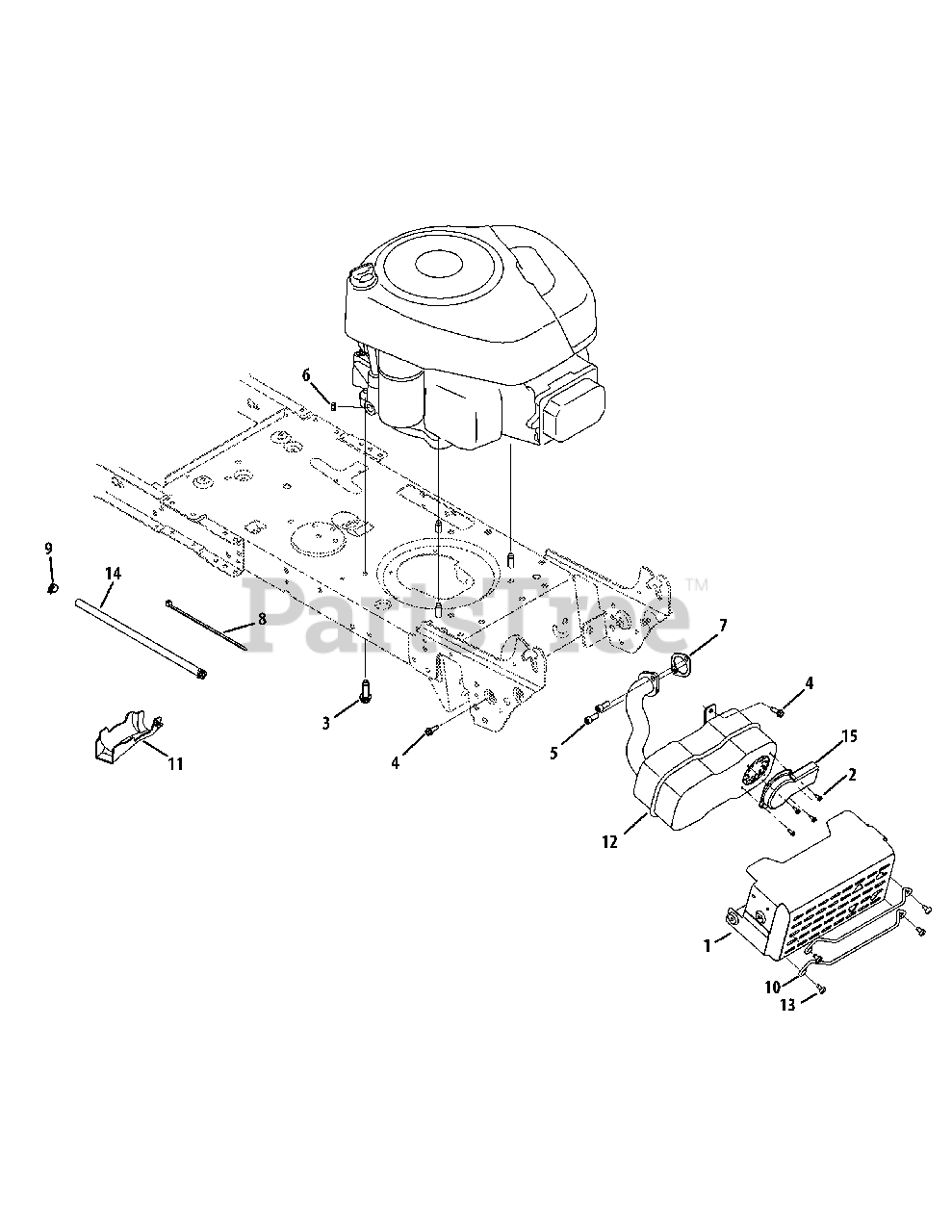

B&S Model 28 Parts Diagram

  • Title

1

MTD 683-04549A-0606

Muffler Shield
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

2

MTD 710-0227

Hex Wash HD AB S-Tapp Scr #8-.50

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04683A

Hex Wash S-Tapp Scr 3/8-16 x 1.0
(Superseded to 710-04683C)

$6.49

$

In Stock, only 1 left!

0

4

MTD 710-0642

Thd Forming Scr. 1/4-20 x .75 Lg.

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1314A

Socket HD Cap Scr. 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-0271

Sems Nut 1/4-20

$4.49

$

In Stock, Qty 18

0

7

MTD BS-692236

Exhaust Gasket (B&S)

$5.49

$

In Stock, Qty 20+

0

8

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 3 left!

0

9

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

10

MTD 747-06404

Muffler Guard Rod
(Superseded to 747-06404A-0637)

$7.49

$

Usually ships in 3-6 days

0

11

MTD 731-05628

Oil Drain Sleeve

$8.49

$

Usually ships in 3-6 days

0

12

MTD 751-10448D

Muffler, Single Inlet
(Superseded to 951-10448D)

$

$

Not available

13

MTD 710-05070A

TT Pan Hd Scr. 1/4-20 x .50

$6.99

$

In Stock, Qty 12

0

14

MTD 751-10349-28

Fuel Hose; Low Permeation

$41.99

$

In Stock, only 1 left!

0

15

MTD 751-11053A

Muffler Deflector
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 14

0
