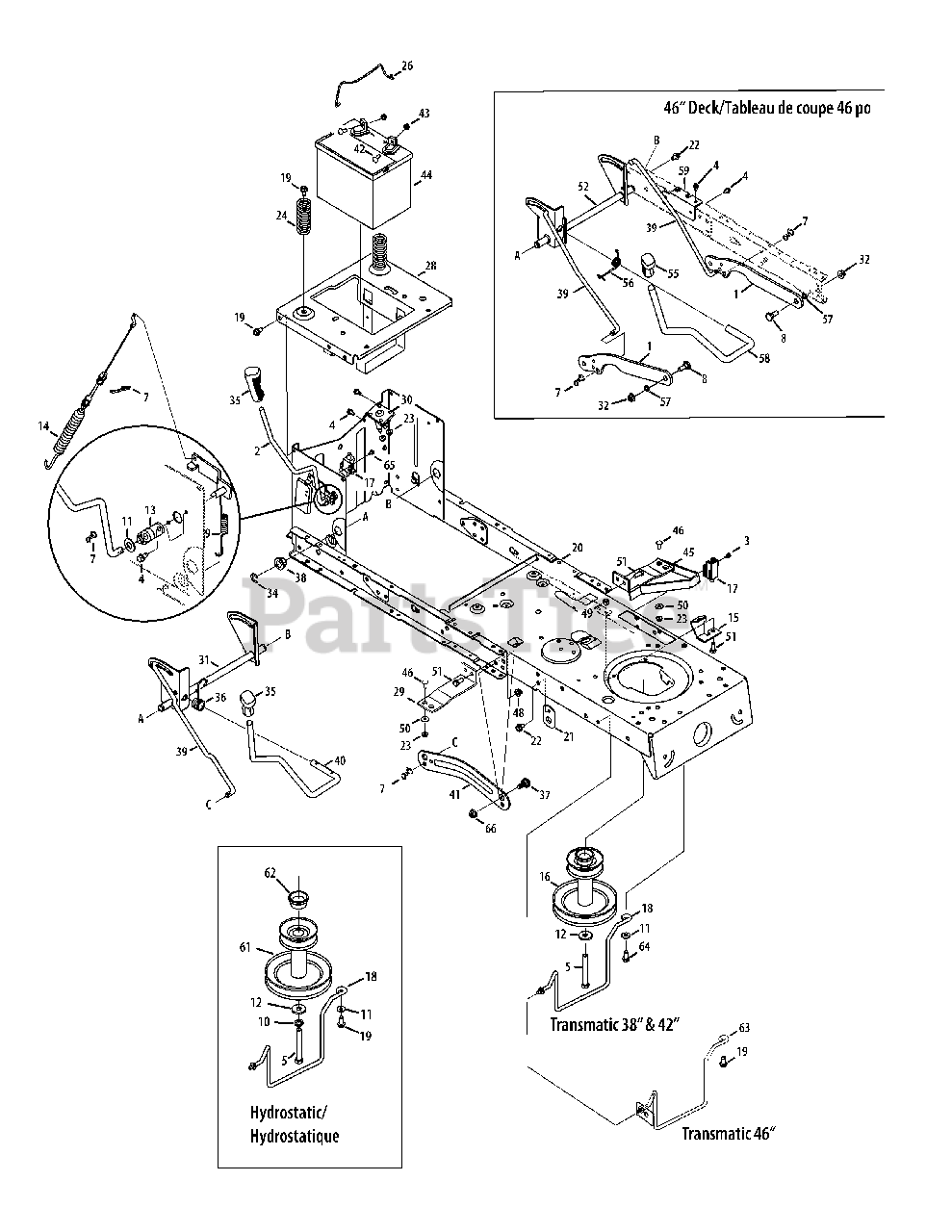

LT 4216 (13AM79KS897) - Columbia 42" Lawn Tractor (2014) Frame & PTO Parts Diagram

42" Lawn Tractor

Frame & PTO Parts Diagram

  • Title

1

MTD 783-0678C-0637

Deck Lift Link

$27.99

$

In Stock, Qty 9

0

2

MTD 647-05041-0637

PTO Handle

$11.99

$

In Stock, Qty 6

0

3

MTD 738-04237A

Shoulder Scr #10-16 x .50" Lg.

$5.99

$

In Stock, Qty 20+

0

4

MTD 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-3157A

Hex Hd. Cap Scr. 7/16-20 x 3.25 Gr. 5 (38/42")

$9.99

$

In Stock, Qty 13

0

7

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

8

MTD 938-0380

Shoulder Screw .5 x .270 : 3/8-16
(Superseded to 738-0380)

$7.49

$

In Stock, Qty 14

0

9

MTD 732-04276A

Extension Spring

$9.49

$

In Stock, Qty 20+

0

10

MTD 936-0171

Lockwasher 7/16 ID
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 20+

0

11

MTD 936-0300

Flat Washer .385 ID x .87 OD x .06 (38/42")
(Superseded to 736-0300)

$3.99

$

In Stock, Qty 20+

0

12

MTD 736-0322

Flat Washer .450 x 1.25 x .164

$8.49

$

In Stock, Qty 20+

0

13

MTD 741-04119A

PTO Bearing

$4.99

$

In Stock, Qty 20+

0

14

MTD 946-05140

Deck Engagement Cable
(Superseded to 946-05140A)

$28.99

$

In Stock, Qty 7

0

15

MTD 783-04753-0606

Frame Support Bracket Orange
(Superseded to 783-04753)

$64.99

$

Usually ships in 3-6 days

0

16

MTD n/a

Engine Pulley 3.39 x 6.12 dia. (38/42")

$

$

Currently unavailable

17

MTD 925-04039

Interlock Switch

$22.99

$

In Stock, Qty 20+

0

18

MTD 747-04857

Belt Keeper Rod (42" Deck)

$20.99

$

In Stock, Qty 20+

0

19

MTD 710-04484

S-Tapp Scr 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

20

MTD 683-04649B-0606

Frame Orange
(Superseded to 683-04649B)

$148.99

$

Usually ships in 3-6 days

0

21

MTD 783-04536B-0606

Pedal Support Bracket Orange

$6.49

$

Usually ships in 3-6 days

0

22

MTD 710-0604A

Hex Wash HD TT Scr 5/16-18 x .625

$3.99

$

In Stock, Qty 20+

0

23

MTD 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

24

MTD 732-0735A

Compression Spring 1.314 OD x 2.55

$27.99

$

In Stock, Qty 8

0

26

MTD 683-04448-0637

Battery Hold Down Rod

$9.99

$

In Stock, only 4 left!

0

28

MTD 783-04548D-0637

Seat Frame Bracket

$54.99

$

Usually ships in 3-6 days

0

29

MTD 783-04637-0606

Running Board Bracket Orange
(Superseded to 783-04637-0637)

$15.99

$

Usually ships in 3-6 days

0

30

MTD 725-04439A

Solenoid
(Superseded to 725-04439B)

$37.99

$

In Stock, Qty 20+

0

31

MTD 683-04155A-0637

Lift Shaft (38" & 42")

$51.99

$

In Stock, only 1 left!

0

32

MTD 712-04065

Flange Lock-Nut 3/8-16 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

34

MTD 716-0106A

"E" Ring .625 Dia.

$4.99

$

In Stock, Qty 15

0

35

MTD 720-0311

Handle Grip

$14.99

$

In Stock, Qty 5

0

36

MTD 732-04225

Torsion Spring (38" & 42")

$11.99

$

In Stock, only 1 left!

0

37

MTD 738-04130A

Shoulder Screw .625 x .175, 3/8-16

$8.99

$

In Stock, Qty 13

0

38

MTD 941-0225

Hex Flange Bearing .630 ID

$6.99

$

In Stock, Qty 20+

0

39

MTD 747-04393

Lift Rod

$22.99

$

In Stock, Qty 10

0

40

MTD 747-05296

Deck Lift Handle(42")

$24.99

$

Usually ships in 3-6 days

0

41

MTD 783-04494C-0606

Deck Lift Arm RH Orange
(Superseded to 783-04494C-0637)

$20.99

$

In Stock, only 3 left!

0

41

MTD 783-04711C-0606

Deck Lift Arm LH Orange

$22.99

$

Usually ships in 3-6 days

0

42

MTD 710-04666

Hex Flg. Scr. 1/4-20 x .75 Gr. 5

$6.49

$

In Stock, Qty 7

0

43

MTD 712-0271

Sems Hex Nut 1/4-20

$4.49

$

In Stock, Qty 19

0

44

MTD 925-1707D

Battery 245 CCA (Dry)

$

$

Not available

45

MTD 683-04195-0606

Support Bracket Ass’y

$36.99

$

Usually ships in 3-6 days

0

46

MTD 710-0703

Carriage Bolt 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

48

MTD 712-04063

Hex L-Flg Nut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

49

MTD 912-0429

Hex L-Nut 5/16-18
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

50

MTD 736-0173

Flat Washer .28 x .74 x .063

$3.99

$

In Stock, Qty 10

0

51

MTD 710-3008

Hex Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

52

MTD 683-04334-0637

Lift Shaft

$50.99

$

In Stock, only 3 left!

0

55

MTD 720-0298

Grip

$40.99

$

Usually ships in 3-6 days

0

56

MTD 732-04438

Torsion Spring

$9.99

$

In Stock, only 1 left!

0

57

MTD 936-0140

Flat Washer .395 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

58

MTD 747-04653A

Deck Lift Handle

$42.99

$

In Stock, only 3 left!

0

59

MTD 783-05389-0637

Brace Bracket
(Superseded to 783-05389A-0637)

$7.99

$

Usually ships in 3-6 days

0

61

MTD 956-04067A

Engine Pulley 3.39 x 6.12 dia. (38/42")
(Superseded to 956-04067B)

$76.99

$

In Stock, only 3 left!

0

62

MTD 750-0956

Spacer 1.0 x 1.4 x .825

$17.99

$

In Stock, Qty 5

0

63

MTD 683-04414-0637

Belt Keeper Rod (46" Deck)

$23.99

$

In Stock, Qty 11

0

64

MTD 710-1260A

Scr 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

65

MTD 738-04425

Shoulder Scr. .342 x .335: 1/4-28

$3.99

$

In Stock, Qty 20+

0

66

MTD 912-0431

Flg. L-Nut 3/8-16 Gr. F

$4.99

$

In Stock, Qty 20+

0
