LT 4218 A - Electrolux/AYP Lawn Tractor (1994) CHASSIS Parts Diagram

Lawn Tractor

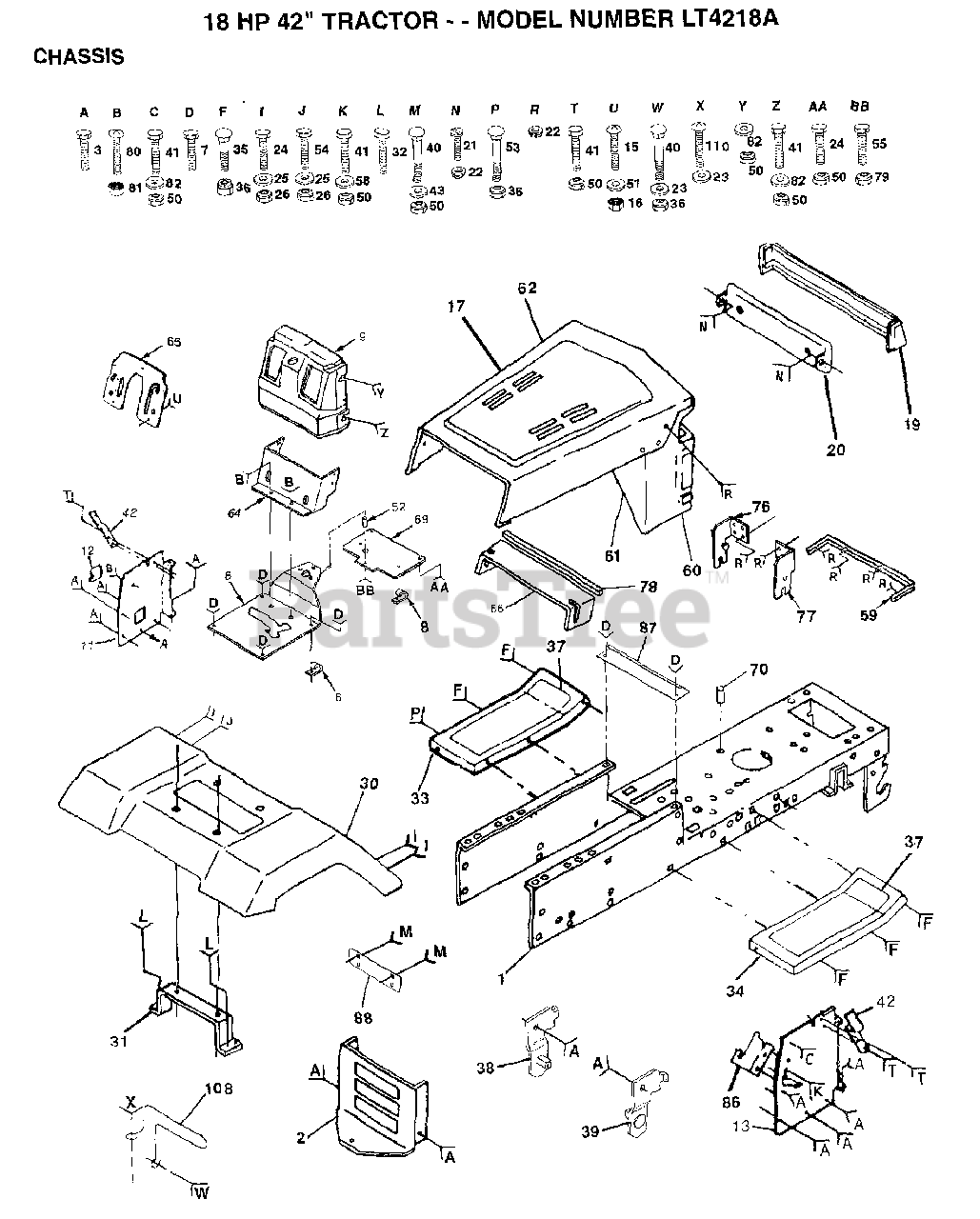

CHASSIS Parts Diagram

  • Title

1

Electrolux/AYP 140341

SUB= 145501

$

$

Not available

2

Electrolux/AYP 140356

SUB= 145009

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 127543

SUB= 127543X011

$

$

Not available

7

Electrolux/AYP 17490616

SCREW GTV
(Superseded to 817000616)

$7.49

$

In Stock, Qty 7

0

8

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

9

Electrolux/AYP 136696

SUB= 145203

$

$

Not available

11

Electrolux/AYP 136967

PANEL.DASH.LH
(Superseded to 532136967)

$

$

Not available

12

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

13

Electrolux/AYP 136952

PANEL DASH RH NOT

$13.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 74180412

SCREW
(Superseded to 874180412)

$4.99

$

In Stock, only 4 left!

0

16

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

17

Electrolux/AYP 123801X550

HOOD/GRILLE ASM

$107.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 110898X

LENS T

$

$

Not available

20

Electrolux/AYP 132257

SUB= 918132257
(Superseded to 132257X417)

$

$

Not available

21

Electrolux/AYP 124201X

SCREW SPECIAL
(Superseded to 583668901)

$2.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 108067X

PAL NUT LT
(Superseded to 532108067)

$

$

Not available

23

Electrolux/AYP 19131616

WASHER HYT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, Qty 19

0

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 140001X550

FENDER PNT

$

$

Not available

31

Electrolux/AYP 139976

BRACKET SUPT FEND
(Superseded to 532139976)

$10.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 105465X500

SUB= 145244X500

$

$

Not available

34

Electrolux/AYP 105464X500

SUB= 145243X500

$

$

Not available

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 133671

FOOTREST PAD
(Superseded to 532133671)

$10.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 139886

BRACKET ASM LH
(Superseded to 532139886)

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 139887

BRACKET ASM RH
(Superseded to 532139887)

$8.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 72110608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 139915

BRACKET.ASM.SUPT.

$

$

Not available

43

Electrolux/AYP 19171416

WASHER
(Superseded to 819171416)

$4.99

$

In Stock, Qty 13

0

50

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

In Stock, Qty 13

0

52

Electrolux/AYP 121236X

SPACER
(Superseded to 532121236)

$

$

Not available

53

Murray 72140608

SUB= 72110608

$

$

Not available

54

Electrolux/AYP 74760614

SUB= 74760616

$

$

Not available

55

Electrolux/AYP 74760532

BOLT
(Superseded to 874760532)

$2.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 110350X550

STRAP FENDER ASM

$

$

Not available

60

Electrolux/AYP 140671

GRILLE ASM WELD

$

$

Not available

61

Electrolux/AYP 123674X550

ASSY-PANEL SIDE

$

$

Not available

62

Electrolux/AYP 123765X550

PANEL SIDE LH ASM

$

$

Not available

64

Electrolux/AYP 143118

DASH LOWER

$

$

Not available

65

Electrolux/AYP 140942X011

PLATE DASH SILKSC

$

$

Not available

66

Electrolux/AYP 124046X

"BAFFLE,HOOD"

$26.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 140181

PLATE.SUPT.BATTER
(Superseded to 532140181)

$

$

Not available

70

Electrolux/AYP 110436X

SUB= 9151R

$

$

Not available

76

Electrolux/AYP 137467

BRACKET.RH
(Superseded to 582962401)

$23.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 137466

BRACKET.LH
(Superseded to 149036)

$

$

Not available

78

Electrolux/AYP 109458X

FOAM STRIP T
(Superseded to 532109458)

$

$

Not available

79

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

80

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$4.99

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 73510500

NUT

$2.99

$

Usually ships in 3-10 days

0

82

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

86

Electrolux/AYP 110923X

BRACKET LT

$

$

Not available

87

Electrolux/AYP 139977

SPACER FENDER LT

$

$

Not available

88

Electrolux/AYP 139978

PLATE EXTEN FEND

$

$

Not available

108

Electrolux/AYP 135029

MUFFLER GUARD

$7.49

$

Usually ships in 3-10 days

0

110

Electrolux/AYP 17490616

SCREW GTV
(Superseded to 817000616)

$7.49

$

In Stock, Qty 7

0
