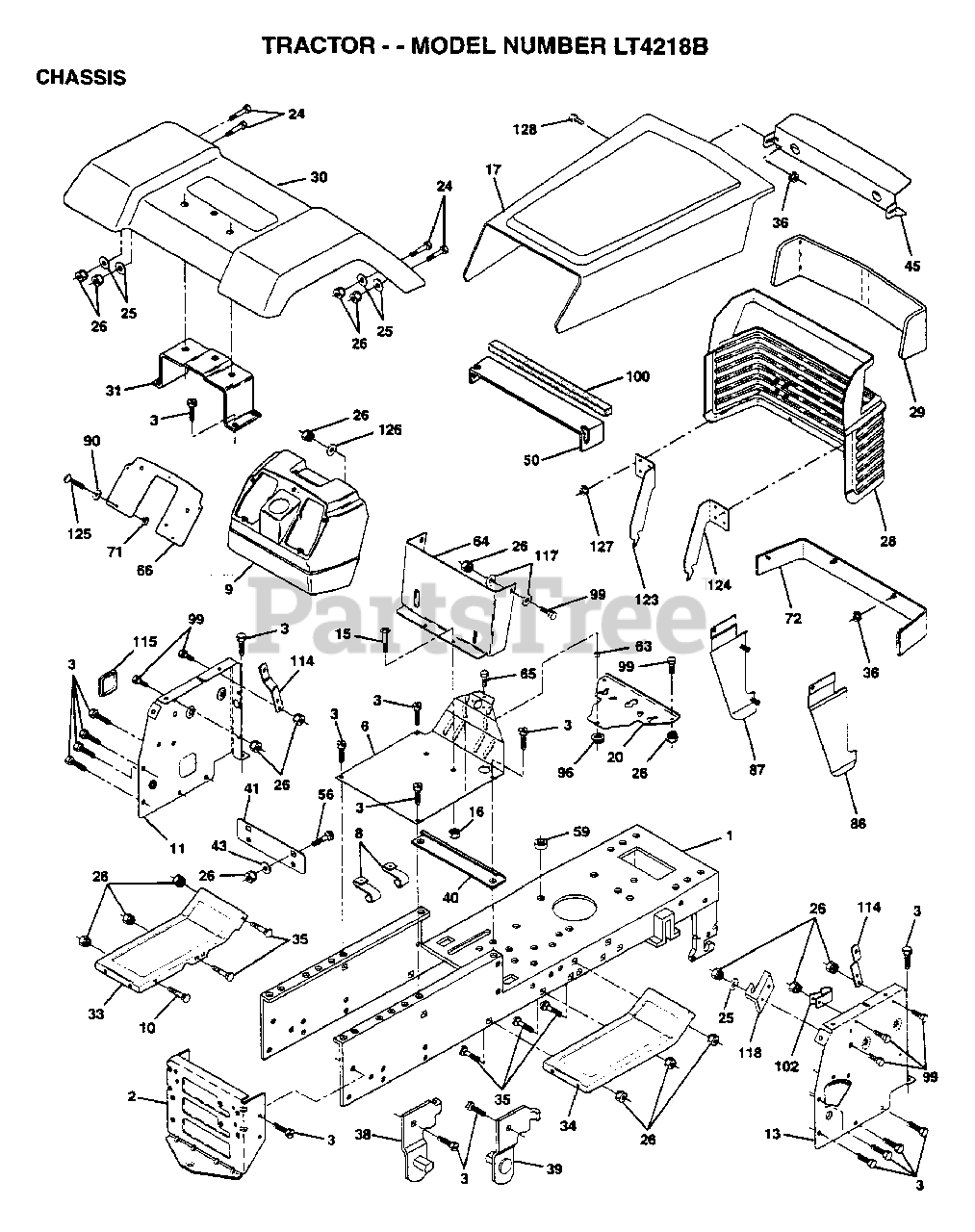

LT 4218 B - Electrolux/AYP Lawn Tractor (1995) CHASSIS Parts Diagram

Lawn Tractor

CHASSIS Parts Diagram

  • Title

1

Electrolux/AYP 140341

SUB= 145501

$

$

Not available

2

Electrolux/AYP 140356

SUB= 145009

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 127543

SUB= 127543X011

$

$

Not available

8

Electrolux/AYP 126471X

"CLIP,INSULATOR"
(Superseded to 532126471)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 145203

DASH.PLASTIC.BLK

$

$

Not available

10

Murray 72140608

SUB= 72110608

$

$

Not available

11

Electrolux/AYP 136967

PANEL.DASH.LH
(Superseded to 532136967)

$

$

Not available

13

Electrolux/AYP 136952

PANEL DASH RH NOT

$13.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$4.99

$

Usually ships in 3-10 days

0

16

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

17

Electrolux/AYP 123801X550

HOOD/GRILLE ASM

$107.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 140181

PLATE.SUPT.BATTER
(Superseded to 532140181)

$

$

Not available

24

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 140671

GRILLE ASM WELD

$

$

Not available

29

Electrolux/AYP 110898X

LENS T

$

$

Not available

30

Electrolux/AYP 140001X550

FENDER PNT

$

$

Not available

31

Electrolux/AYP 139976

BRACKET SUPT FEND
(Superseded to 532139976)

$10.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 105465X500

SUB= 145244X500

$

$

Not available

34

Electrolux/AYP 105464X500

SUB= 145243X500

$

$

Not available

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 108067X

PAL NUT LT
(Superseded to 532108067)

$

$

Not available

38

Electrolux/AYP 139886

BRACKET ASM LH
(Superseded to 532139886)

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 139887

BRACKET ASM RH
(Superseded to 532139887)

$8.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 139977

SPACER FENDER LT

$

$

Not available

41

Electrolux/AYP 139978

PLATE EXTEN FEND

$

$

Not available

43

Electrolux/AYP 19171416

WASHER
(Superseded to 819171416)

$4.99

$

In Stock, Qty 13

0

45

Electrolux/AYP 132257

SUB= 918132257
(Superseded to 132257X417)

$

$

Not available

50

Electrolux/AYP 124046X

"BAFFLE,HOOD"

$26.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

59

Electrolux/AYP 110436X

SUB= 9151R

$

$

Not available

63

Electrolux/AYP 121236X

SPACER
(Superseded to 532121236)

$

$

Not available

64

Electrolux/AYP 143118

DASH LOWER

$

$

Not available

65

Electrolux/AYP 74760532

BOLT
(Superseded to 874760532)

$2.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 140942X011

PLATE DASH SILKSC

$

$

Not available

71

Electrolux/AYP 73640400

NUT HXKEP 1/4X20
(Superseded to 873640400)

$

$

Not available

72

Electrolux/AYP 110350X550

STRAP FENDER ASM

$

$

Not available

86

Electrolux/AYP 123764X550

PANEL SIDE RH ASM
(Superseded to 583668301)

$5.99

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 123765X550

PANEL SIDE LH ASM

$

$

Not available

90

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

In Stock, Qty 12

0

96

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

99

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

100

Electrolux/AYP 109458X

FOAM STRIP T
(Superseded to 532109458)

$

$

Not available

102

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

114

Electrolux/AYP 139915

BRACKET.ASM.SUPT.

$

$

Not available

115

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

117

Electrolux/AYP 144283

WASHER.SERRATED.
(Superseded to 532144283)

$2.99

$

Usually ships in 3-10 days

0

118

Electrolux/AYP 110923X

BRACKET LT

$

$

Not available

123

Electrolux/AYP 144712

SUB= 149036
(Superseded to 149036)

$

$

Not available

124

Electrolux/AYP 144713

BRACKET.PICK.RH
(Superseded to 582962401)

$23.99

$

Usually ships in 3-10 days

0

125

Electrolux/AYP 74180412

SCREW
(Superseded to 874180412)

$4.99

$

In Stock, only 4 left!

0

126

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

127

Electrolux/AYP 120579X

PAL NUT
(Superseded to 583663301)

$2.99

$

Usually ships in 3-10 days

0

128

Electrolux/AYP 124201X

SCREW SPECIAL
(Superseded to 583668901)

$2.99

$

Usually ships in 3-10 days

0
