LT-4600 H (13AX79TH090) - White Outdoor 46" Lawn Tractor (2008) Engine Crankcase Parts Diagram

46" Lawn Tractor

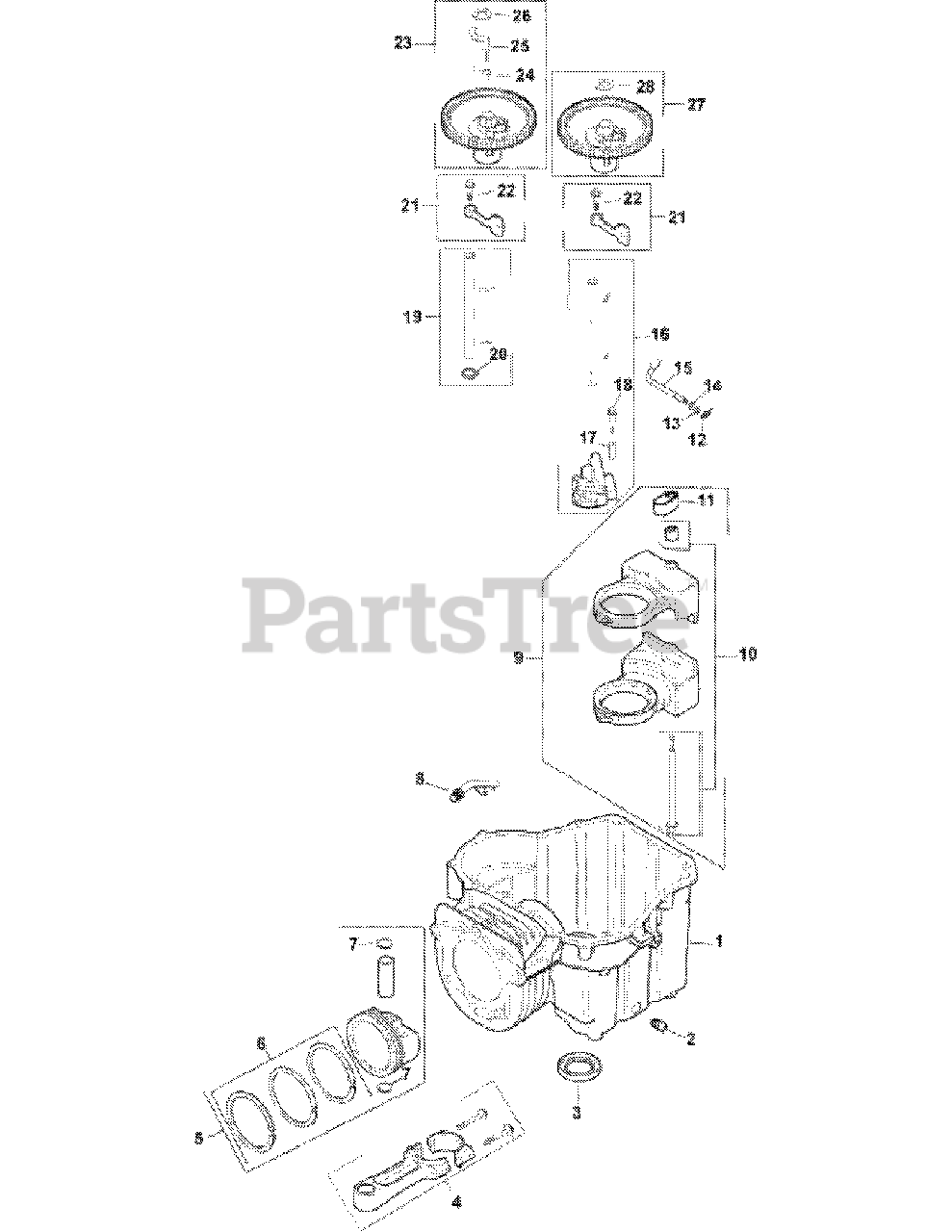

Engine Crankcase Parts Diagram

  • Title

1

N/A

CRANKCASE

Note: (USE: Short Block KH-20-522-01)

$

$

Not available

1

White Outdoor KH-20-522-01

Short Block

$

$

Not available

2

White Outdoor KH-25-139-57-S

PLUG, SQ HD PIPE 3/8"

$2.49

$

In Stock, Qty 5

0

3

White Outdoor KH-20-032-01-S

SEAL, OIL
(Superseded to KH-20-032-08-S)

$

$

Not available

4

MTD KH-20-067-04-S

ROD, CONNECTING
(Superseded to KH-20-067-06-S)

$

$

Not available

5

White Outdoor KH-20-874-01-S

KIT, PISTON W/RING SET (94MM)

Note: (Includes 6,7)

$

$

Not available

6

White Outdoor KH-20-108-01-S

RING SET (94 MM)
(Superseded to KH-20-108-04-S)

$81.99

$

In Stock, only 2 left!

0

7

MTD KH-20-018-04-S

RETAINER, PISTON PIN

$

$

Not available

8

MTD KH-20-123-02-S

TUBE, DRAINBACK

Note: Use After Serial # 3430000001

$6.49

$

In Stock, Qty 5

0

9

MTD KH-20-755-04-S

KIT, BALANCE WEIGHT - DISC.

Note: (Includes 10,11)

$

$

Not available

10

White Outdoor KH-20-380-16-S

KIT, GUIDE PIN

$

$

Not available

11

MTD KH-20-423-02-S

SHOE, GUIDE

$

$

Not available

12

White Outdoor KH-12-154-05

CLIP, HITCH PIN
(Superseded to KH-12-154-05-S)

$2.99

$

Usually ships in 3-6 days

0

13

White Outdoor KH-M-631015

WASHER, FLAT 6 MM
(Superseded to KH-M-631015-S)

$2.49

$

In Stock, only 3 left!

0

14

White Outdoor KH-X-25-102-S

WASHER, FLAT 1/4"

$2.49

$

In Stock, only 2 left!

0

15

MTD KH-20-144-02-S

SHAFT, GOVERNOR CROSS

$14.99

$

In Stock, only 2 left!

0

16

MTD KH-20-393-02-S

KIT, OIL PUMP ASSEMBLY

Note: (includes 17,18) serial break after 350760001

$41.99

$

Usually ships in 2-5 days

0

17

MTD KH-20-112-02-S

SPACER, OIL PUMP SCREW
(Superseded to KH-20-086-12-S)

$2.99

$

Usually ships in 2-5 days

0

18

MTD KH-20-086-13-S

SCREW, OIL PUMP
(Superseded to KH-20-086-12-S)

$2.99

$

Usually ships in 2-5 days

0

19

MTD KH-20-144-06-S

USE 20 144 11-S KIT
(Superseded to KH-20-144-11-S)

Note: (includes 21)

$20.99

$

In Stock, only 1 left!

0

20

MTD KH-20-468-01-S

USE 20 468 08-S WASHER

$

$

Not available

21

MTD KH-20-090-01-S

KIT, CAM LEVER ASSEMBLY
(Superseded to KH-20-090-12-S)

$5.49

$

In Stock, only 2 left!

0

22

White Outdoor KH-20-086-06-S

SCREW, SHD THD FRM M6X1X26

$4.99

$

In Stock, Qty 9

0

23

MTD KH-20-010-04-S

KIT, CAMSHAFT ASSEMBLY

Note: (Includes 24-26)

$

$

Not available

24

MTD KH-20-089-06-S

SPRING, ACR

$2.99

$

In Stock, Qty 7

0

25

MTD KH-20-044-16-S

WEIGHT, ACR
(Superseded to KH-20-044-32-S)

$13.99

$

In Stock, only 1 left!

0

26

MTD KH-20-468-03-S

WASHER, THRUST -ACR

$2.49

$

In Stock, only 2 left!

0

27

MTD KH-20-010-04-S

KIT, CAMSHAFT ASSEMBLY

Note: (includes 28)

$

$

Not available

28

MTD KH-20-468-03-S

WASHER, THRUST -ACR

$2.49

$

In Stock, only 2 left!

0
