LT-4600 H (13AX79TH090) - White Outdoor 46" Lawn Tractor (2008) Engine Fuel System Parts Diagram

46" Lawn Tractor

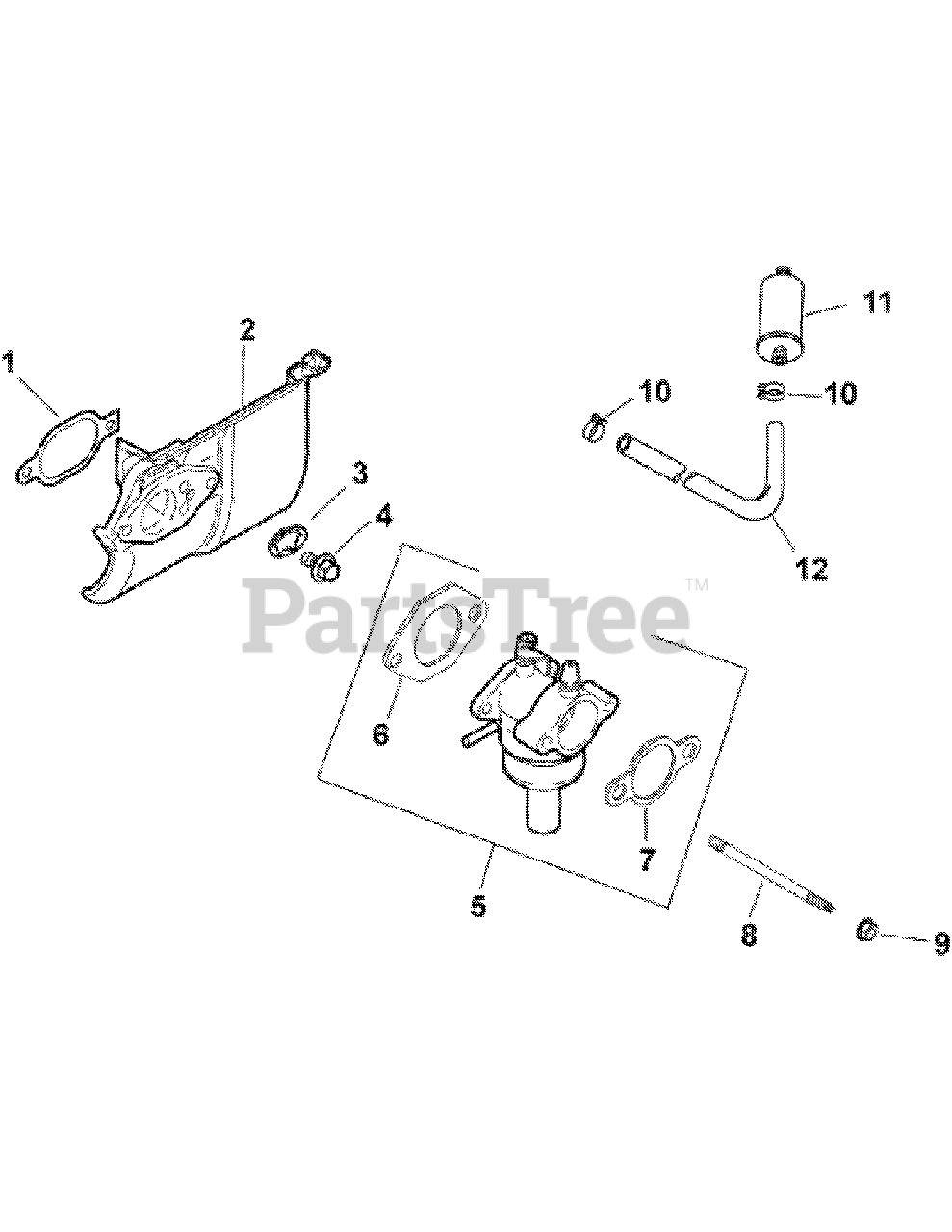

Engine Fuel System Parts Diagram

  • Title

1

White Outdoor KH-20-041-17-S

GASKET

$7.49

$

In Stock, only 2 left!

0

2

MTD KH-20-265-05-S

KIT
(Superseded to KH-20-265-09-S)

$29.99

$

In Stock, only 3 left!

0

3

White Outdoor KH-X-22-11

WASHER, INT TOOTH LOCK 1/4"

$

$

Not available

4

MTD KH-M-651020-S

SCREW, FLG M6x1.0x20

$2.49

$

In Stock, only 3 left!

0

5

MTD KH-20-853-42-S

KIT, CARBURETOR W/GASKETS
(Superseded to KH-20-853-33-S)

Note: (includes 6,7)

$176.99

$

In Stock, only 4 left!

0

6

White Outdoor KH-12-041-02

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 8

0

7

White Outdoor KH-12-041-01

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 5

0

8

White Outdoor KH-20-072-05-S

STUD, M6X1.0X100
(Superseded to KH-20-072-10-S)

$5.99

$

In Stock, only 2 left!

0

9

White Outdoor KH-M-641060-S

NUT, FLG M6X1.0

$4.99

$

In Stock, Qty 6

0

10

White Outdoor KH-25-237-14-S

CLAMP, SPRING HOSE 1/2"
(Superseded to KH-25-237-31-S)

$5.49

$

In Stock, only 2 left!

0

11

White Outdoor KH-25-050-21-S

FILTER, FUEL

$12.99

$

Usually ships in 2-5 days

0

12

MTD KH-25-353-14-S

LINE, FLEXIBLE FUEL - 7"

$8.49

$

Usually ships in 2-5 days

0

White Outdoor KH-12-757-02

KIT, REPAIR FLOAT

Note: NOT ILLUSTRATED

$

$

Not available

White Outdoor KH-12-757-03

KIT, REPAIR CARBURETOR

Note: NOT ILLUSTRATED

$45.99

$

In Stock, only 2 left!

0

White Outdoor KH-12-757-33

KIT, REPAIR SOLENOID

Note: NOT ILLUSTRATED

$

$

Not available

MTD KH-12-757-37-S

KIT, REPAIR BOWL REPLACEMENT

Note: NOT ILLUSTRATED

$20.99

$

Usually ships in 2-5 days

0

White Outdoor KH-20-755-06-S

KIT, HIGH ALTITUDE (5000 FT)

Note: NOT ILLUSTRATED

$22.99

$

Usually ships in 2-5 days

0

White Outdoor KH-20-755-07-S

KIT, HIGH ALTITUDE (5,000 FT)

Note: NOT ILLUSTRATED

$24.99

$

Usually ships in 2-5 days

0

White Outdoor KH-12-454-03-S

TIE, CABLE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

White Outdoor KH-12-755-110-S

KIT, REPAIR CHOKE

Note: NOT ILLUSTRATED

$16.99

$

Usually ships in 2-5 days

0
