LT-4600 H (13AX79TH090) - White Outdoor 46" Lawn Tractor (2008) Engine Head Valve Breather Parts Diagram

46" Lawn Tractor

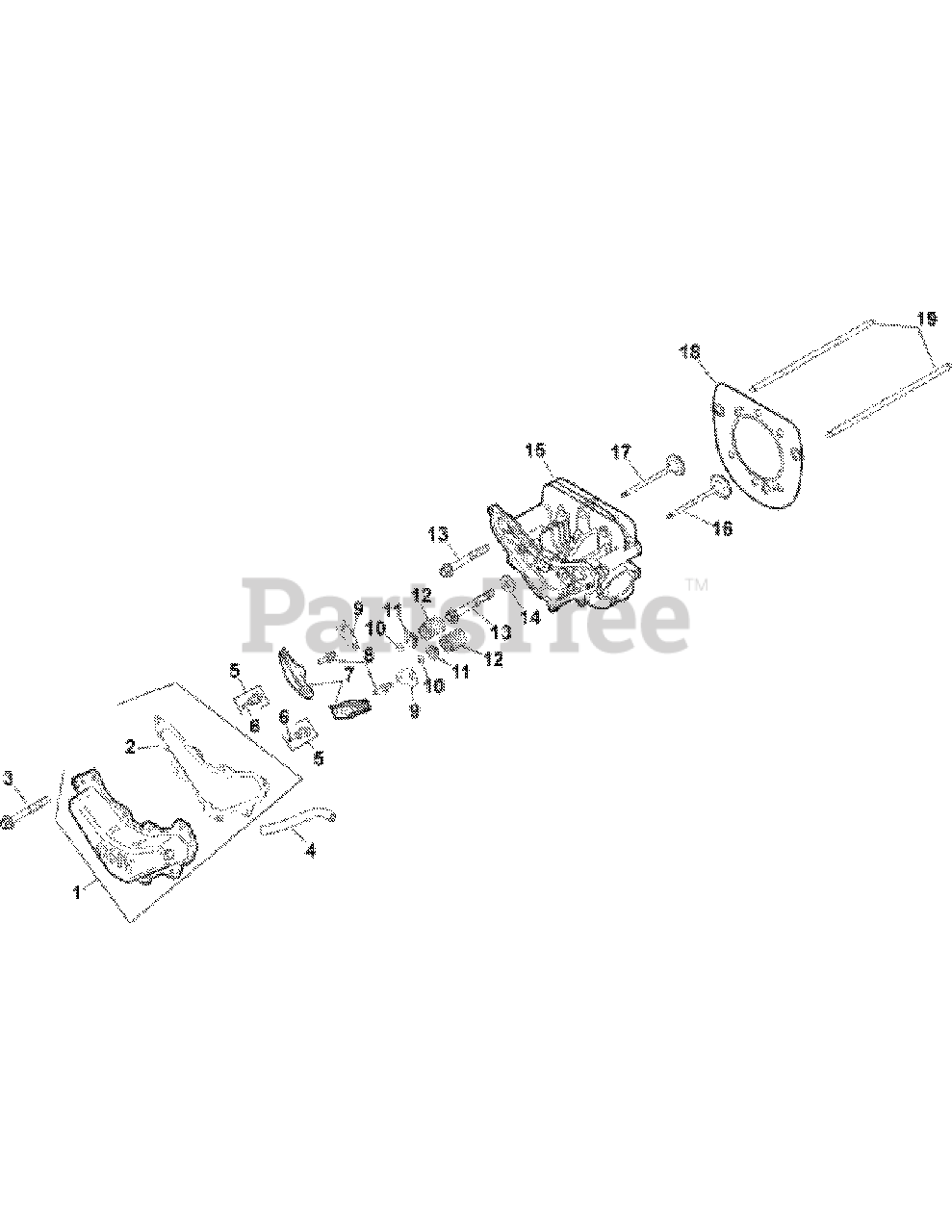

Engine Head Valve Breather Parts Diagram

  • Title

1

White Outdoor KH-20-096-07-S

KIT, VALVE COVER
(Superseded to KH-20-096-14-S)

Note: (Includes 2)

$60.99

$

In Stock, Qty 20+

0

2

White Outdoor KH-20-041-13-S

GASKET, VALVE COVER

$13.99

$

In Stock, Qty 9

0

3

White Outdoor KH-M-645020-S

SCREW, FLG THD FRM M6X1.0X20
(Superseded to KH-25-086-396-S)

$2.99

$

In Stock, Qty 7

0

4

MTD KH-20-326-20-S

HOSE, BREATHER

$16.99

$

In Stock, only 2 left!

0

5

White Outdoor KH-20-599-02-S

KIT, ROCKER ARM PIVOT- DISCONTINUED
(Superseded to KH-20-599-04-S)

Note: (Includes 6)

$6.49

$

In Stock, only 3 left!

0

6

White Outdoor KH-20-086-04-S

SCREW, SET

$2.99

$

In Stock, Qty 7

0

7

MTD KH-20-186-01-S

ARM, ROCKER

$

$

Not available

8

White Outdoor KH-20-072-08-S

STUD, ROCKER

$2.49

$

In Stock, only 2 left!

0

9

MTD KH-20-146-03-S

PLATE, PUSH ROD GUIDE

$2.49

$

In Stock, only 3 left!

0

10

White Outdoor KH-20-062-01-S

LOCK, RETAINER

$3.49

$

Usually ships in 2-5 days

0

11

MTD KH-20-173-01-S

CAP, VALVE SPRING

$2.49

$

Usually ships in 2-5 days

0

12

MTD KH-20-089-03-S

SPRING, VALVE

$6.99

$

Usually ships in 2-5 days

0

13

White Outdoor KH-20-086-02-S

SCREW, FLG M10X1.5X80

$3.99

$

In Stock, only 4 left!

0

14

White Outdoor KH-12-468-05

WASHER, FLAT 13/32"

$

$

Not available

15

MTD KH-20-318-07-S

HEAD, CYLINDER ASSEMBLY
(Superseded to KH-20-318-14-S)

$263.99

$

In Stock, only 2 left!

0

16

White Outdoor KH-20-016-01-S

VALVE, EXHAUST

$44.99

$

In Stock, only 2 left!

0

17

White Outdoor KH-20-017-01-S

VALVE, INTAKE

$36.99

$

In Stock, only 2 left!

0

18

White Outdoor KH-20-841-01-S

KIT, CYLINDER HEAD GASKET

Note: (includes 2,13,14)

$42.99

$

In Stock, only 4 left!

0

19

White Outdoor KH-20-411-04-S

ROD, PUSH
(Superseded to KH-20-411-05-S)

$10.99

$

In Stock, Qty 8

0
