LT-4600 H (13AX79TH090) - White Outdoor 46" Lawn Tractor (2008) Engine Oil Pan & Lubrication Parts Diagram

46" Lawn Tractor

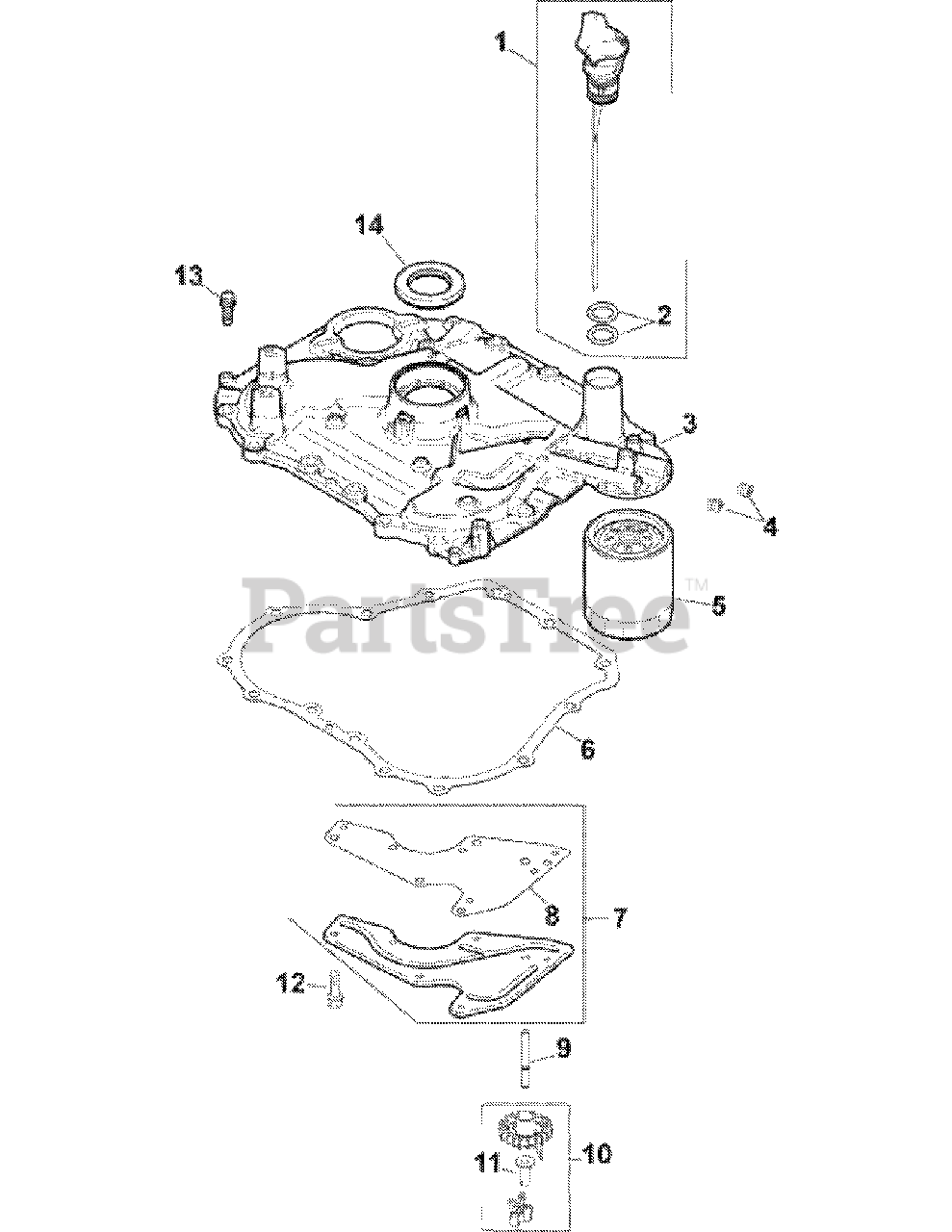

Engine Oil Pan & Lubrication Parts Diagram

  • Title

1

White Outdoor KH-20-040-03-S

DIPSTICK W/2 O-RINGS
(Superseded to KH-20-040-08-S)

Note: (includes 2)

$7.99

$

In Stock, Qty 18

0

2

White Outdoor KH-20-153-01-S

O-RING
(Superseded to KH-25-153-09-S)

$3.49

$

In Stock, only 4 left!

0

3

White Outdoor KH-20-009-10-S

KIT PLATE ASM-CLOSUER

Note: (includes 4,10,11)

$194.99

$

In Stock, only 1 left!

0

4

White Outdoor KH-25-139-60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 3 left!

0

5

White Outdoor KH-12-050-01-S

FILTER, OIL

$13.99

$

In Stock, Qty 20+

0

6

White Outdoor KH-20-041-01-S

GASKET, CLOSURE PLATE
(Superseded to KH-20-041-21-S)

$7.99

$

Usually ships in 2-5 days

0

7

MTD KH-20-096-02-S

KIT, OIL PASSAGE COVER

Note: (includes 8)

$

$

Not available

8

MTD KH-20-041-02-S

GASKET, OIL PASSAGE

$3.49

$

In Stock, Qty 8

0

9

MTD KH-20-144-03-S

SHAFT, GOVERNOR CROSS

$2.49

$

In Stock, Qty 9

0

10

White Outdoor KH-25-310-01-S

KIT GEAR ASM-GOVERNOR
(Superseded to KH-25-310-09-S)

Note: (includes 11)

$12.99

$

In Stock, Qty 9

0

11

White Outdoor KH-12-380-01

PIN, GOVERNOR REGULATING

$

$

Not available

12

White Outdoor KH-M-545013-S

SCREW, FLG THD FRM M5X0.8X13

$2.49

$

In Stock, Qty 9

0

13

White Outdoor KH-M-851030-S

SCREW, FLG M8X1.25X30

$2.49

$

In Stock, only 4 left!

0

14

White Outdoor KH-20-032-01-S

SEAL, OIL
(Superseded to KH-20-032-08-S)

$9.49

$

In Stock, Qty 10

0
