LT-5000 (13AP60TP090) - White Outdoor 50" Lawn Tractor (2008) Transmission Parts Diagram

50" Lawn Tractor

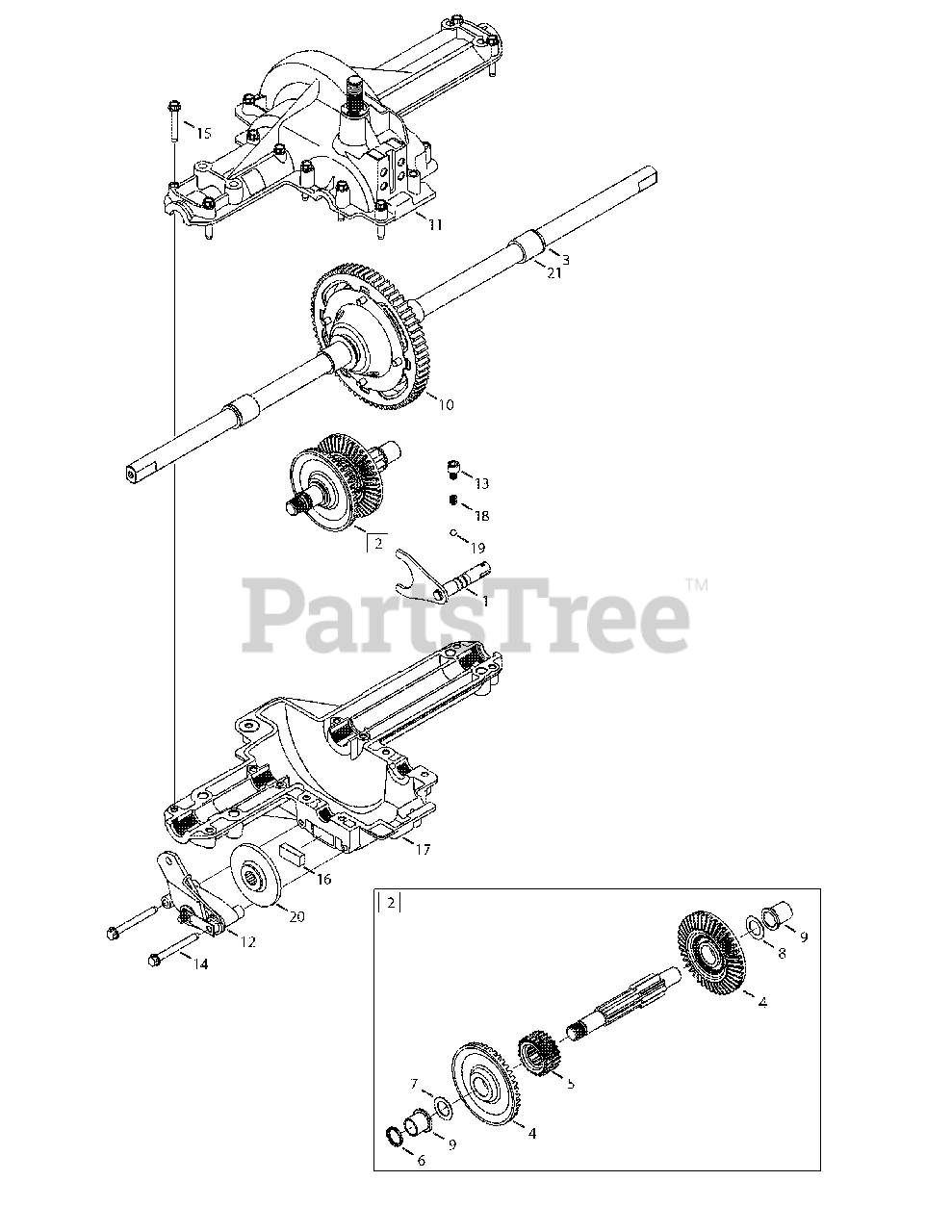

Transmission Parts Diagram

  • Title

1

White Outdoor 611-0011

Detent Shaft Assembly
(Superseded to 911-0011)

$39.99

$

In Stock, Qty 20+

0

2

White Outdoor 611-04091

Drive Shaft Assy.
(Superseded to 911-05051)

Note: (includes ref. 4 - 9)

$144.99

$

Usually ships in 3-6 days

0

3

White Outdoor 721-0338

Seal,.75 x 1.0 x.125
(Superseded to 921-0338)

$6.99

$

In Stock, Qty 20+

0

4

White Outdoor 717-04479

Bevel Gear, 42 tooth spline
(Superseded to 917-04479B)

$27.99

$

In Stock, only 4 left!

0

5

White Outdoor 718-04381

Single Speed Clutch Collar
(Superseded to 718-04381P)

$16.99

$

In Stock, Qty 8

0

6

White Outdoor 721-0213

Seal, .625 x .812 x .094

$9.99

$

In Stock, Qty 9

0

7

White Outdoor 736-0336

Flat Washer 5/8 x 1 x .030
(Superseded to 936-0336)

Note: Use applicable flat washers (ref. # 7) in this application allowing .006/.014 in. end-play.

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 736-0337

Flat Washer .634 x 1 x .04

$4.49

$

In Stock, Qty 15

0

7

White Outdoor 736-0349

Flat Washer .63 x 1 x .02

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 736-0494

Flat Washer .632 x 1 x .035

$4.49

$

In Stock, Qty 8

0

7

White Outdoor 736-0495

Thrust Washer 1.00 x .632 x .0

$3.99

$

In Stock, Qty 16

0

8

White Outdoor 741-0336

Flange Bearing, 5/8 x 3/4 x 3/4
(Superseded to 941-0336)

$10.99

$

In Stock, Qty 18

0

9

White Outdoor 741-0337

Flange Bearing, 5/8 x 3/4 x 15/16
(Superseded to 941-0337)

$9.99

$

In Stock, Qty 20+

0

10

White Outdoor 618-04567

Differential Assembly
(Superseded to 918-04619)

$221.99

$

Usually ships in 3-6 days

0

11

White Outdoor 619-04187

Upper Housing
(Superseded to 919-04187A)

$152.99

$

In Stock, only 2 left!

0

12

White Outdoor 661-0001

Brake Assembly
(Superseded to 961-0001)

$53.99

$

In Stock, only 1 left!

0

13

White Outdoor 710-04731

Self-tapping Screw, 5/16-18 x .375

$7.49

$

Usually ships in 3-6 days

0

14

White Outdoor 710-1206

Self-tapping Screw, 1/4-20 x 2.375

$6.99

$

In Stock, Qty 11

0

15

White Outdoor 710-1325

Self-tapping Screw, 1/4-20 x 1.625

$4.49

$

In Stock, Qty 5

0

16

White Outdoor 717-0678

Brake Puck
(Superseded to 917-0678)

$6.99

$

In Stock, Qty 20+

0

17

White Outdoor 719-04329

Lower Housing
(Superseded to 919-04329B)

$79.99

$

In Stock, only 1 left!

0

18

White Outdoor 732-0863

Compression Spring
(Superseded to 932-0863)

$3.99

$

In Stock, Qty 11

0

19

White Outdoor 741-0862

Detent Ball

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 761-0202

Brake Disc

$14.99

$

In Stock, Qty 5

0

21

White Outdoor 741-0340

Sleeve Bearing,.75 x.1.0 x 1.0
(Superseded to 741-05060)

$8.49

$

In Stock, Qty 20+

0

White Outdoor 737-0148

Grease (19 oz.)
(Superseded to 737-0300A)

Note: Not shown

$32.99

$

In Stock, Qty 20+
