LT-5000 (13AP60TP290) - White Outdoor 50" Lawn Tractor (2008) Engine Controls Parts Diagram

50" Lawn Tractor

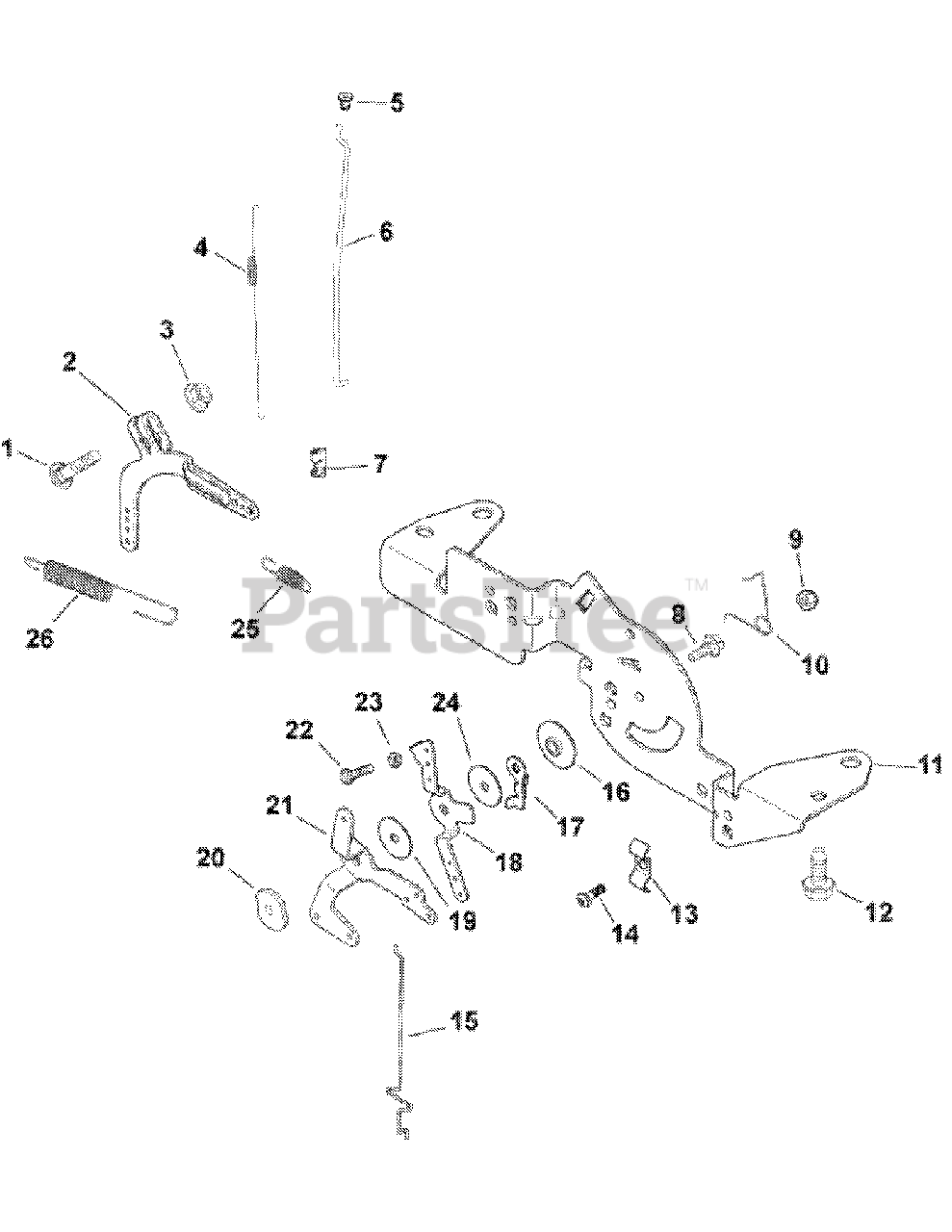

Engine Controls Parts Diagram

  • Title

1

White Outdoor KH-24-211-03-S

BOLT, RD HD SQ NECK M6X1.0X25

$2.49

$

In Stock, Qty 16

0

2

White Outdoor KH-24-090-51-S

LEVER, GOVERNOR
(Superseded to KH-24-090-69-S)

$8.99

$

In Stock, only 1 left!

0

3

White Outdoor KH-M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 16

0

4

White Outdoor KH-24-089-01

SPRING, LINKAGE

$

$

Not available

5

White Outdoor KH-25-158-08

BUSHING, LINKAGE RETAINING

$

$

Not available

6

White Outdoor KH-24-079-04

LINKAGE, THROTTLE

$

$

Not available

7

White Outdoor KH-25-158-11

BUSHING, THROTTLE LINKAGE

$

$

Not available

8

White Outdoor KH-M-545016-S

SCREW, FLG THD FRM M5X.8X16
(Superseded to KH-25-086-398-S)

$3.99

$

In Stock, Qty 13

0

9

White Outdoor KH-M-547050-S

NUT, LOCK M5X.8

$2.49

$

In Stock, Qty 6

0

10

White Outdoor KH-24-089-03

SPRING, CHOKE RETURN

$

$

Not available

11

White Outdoor KH-24-126-161-S

BRACKET, CONTROL - USE 24 126 172-S
(Superseded to KH-32-126-18-S)

$11.99

$

In Stock, only 1 left!

0

12

White Outdoor KH-M-645016-S

SCREW, FLG THD FRM M6X1.0X16

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor KH-47-237-02

CLAMP, DUAL CONDUIT
(Superseded to KH-47-237-02-S)

$10.99

$

Usually ships in 2-5 days

0

14

White Outdoor KH-24-086-43-S

SCREW, LBD THD FRM M5x0.8x16
(Superseded to KH-25-086-405-S)

$2.49

$

In Stock, only 1 left!

0

15

White Outdoor KH-24-079-22-S

LINKAGE, CHOKE

$6.99

$

In Stock, only 1 left!

0

16

White Outdoor KH-24-112-27-S

SPACER, CONTROL ASSEMBLY

$3.99

$

In Stock, Qty 7

0

17

White Outdoor KH-24-090-47-S

LEVER, THROTTLE ACTUATOR

$2.99

$

In Stock, only 4 left!

0

18

White Outdoor KH-24-090-13

LEVER, THROTTLE CONTROL

$

$

Not available

19

White Outdoor KH-24-468-01

WASHER, FLAT 5.5 MM

$

$

Not available

20

White Outdoor KH-41-468-03

WASHER, SPRING 1/4"

$

$

Not available

21

White Outdoor KH-24-090-05

LEVER, CHOKE

$

$

Not available

22

White Outdoor KH-M-403025

SCREW, SLT HD CAP M4X0.7X25

$

$

Not available

23

White Outdoor KH-M-446030-S

NUT, M4X.7

$2.49

$

In Stock, Qty 9

0

24

White Outdoor KH-24-468-20-S

WASHER, FLAT 5 MM

$2.49

$

In Stock, only 2 left!

0

25

White Outdoor KH-24-089-55-S

SPRING, GOVERNOR

$2.49

$

In Stock, Qty 10

0

26

White Outdoor KH-24-089-18

SPRING, GOVERNOR

$

$

Not available
