LT-5000 (13AP60TP290) - White Outdoor 50" Lawn Tractor (2008) Engine Ignition & Electrical Parts Diagram

50" Lawn Tractor

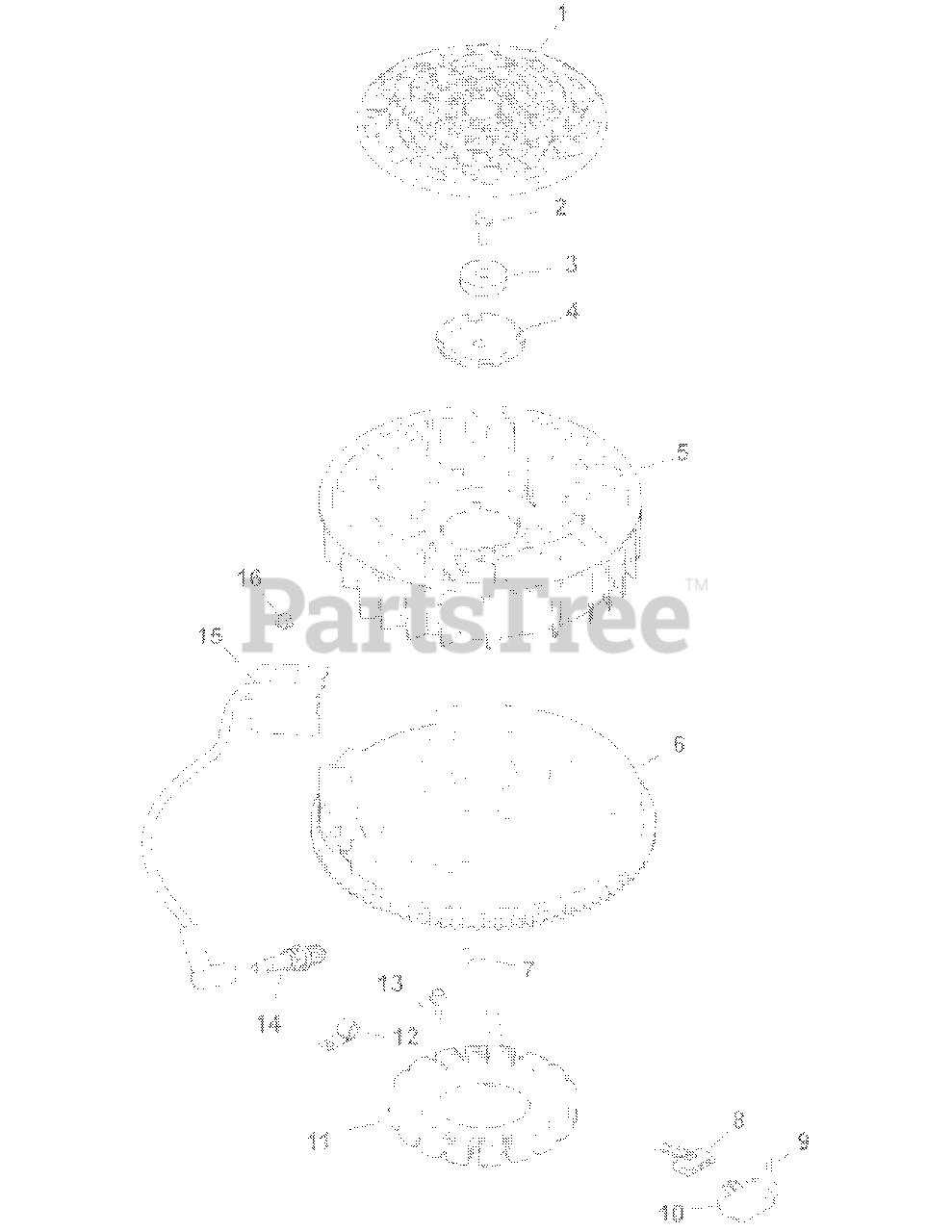

Engine Ignition & Electrical Parts Diagram

  • Title

1

White Outdoor KH-32-162-03-S

SCREEN, GRASS

Note: NOT ILLUSTRATED

$5.49

$

In Stock, Qty 5

0

2

White Outdoor KH-12-086-14

SCREW, FLG M10X1.5X45
(Superseded to KH-25-086-361-S)

$4.49

$

Usually ships in 2-5 days

0

3

White Outdoor KH-12-468-03

WASHER, FLAT 13/32"

$

$

Not available

4

KH-20-146-04

USE 20 146 05-S PLATE

$

$

Not available

5

White Outdoor KH-32-157-01-S

FAN
(Superseded to KH-32-755-38-S)

$21.99

$

In Stock, only 1 left!

0

6

White Outdoor KH-32-025-16-S

FLYWHEEL ASSEMBLY (SV710/730)
(Superseded to KH-32-025-22-S)

$347.99

$

In Stock, only 2 left!

0

7

White Outdoor KH-X-42-15

KEY, 3/16" X 5/8"

$

$

Not available

8

White Outdoor KH-25-155-41-S

CONNECT0R

$31.99

$

In Stock, only 2 left!

0

9

White Outdoor KH-M-545016-S

SCREW, FLG THD FRM M5X.8X16
(Superseded to KH-25-086-398-S)

$4.49

$

In Stock, only 2 left!

0

10

White Outdoor KH-41-403-10-S

REGULATOR/RECTIFIER
(Superseded to KH-25-403-37-S)

$105.99

$

Usually ships in 2-5 days

0

11

White Outdoor KH-237878

KIT, 15 AMP STATOR

Note: (includes 25 452 01-S)

$

$

Not available

12

White Outdoor KH-235173

CLIP, CABLE

$

$

Not available

13

White Outdoor KH-M-548025-S

SCREW, THD FRM M5X.8X25
(Superseded to KH-25-086-402-S)

$3.49

$

In Stock, only 2 left!

0

14

White Outdoor 759-3336

PLUG, SPARK
(Superseded to RC12YC)

$3.99

$

Usually ships in 3-6 days

0

15

White Outdoor KH-24-584-01

USE 24 584 45-S IGNITION MODULE
(Superseded to KH-24-584-45-S)

$116.99

$

Usually ships in 3-6 days

0

16

White Outdoor KH-M-545020-S

SCREW, FLG THD FRM M5X.8X20
(Superseded to KH-25-086-473-S)

$3.49

$

In Stock, Qty 20+

0

White Outdoor KH-32-176-14-S

WIRING HARNESS

Note: NOT ILLUSTRATED

$

$

Not available

White Outdoor KH-25-454-03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

White Outdoor KH-25-452-01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0
