LT-542 G (13AJ775G790) - White Outdoor 42" Lawn Tractor (2007) Steering Parts Diagram

42" Lawn Tractor

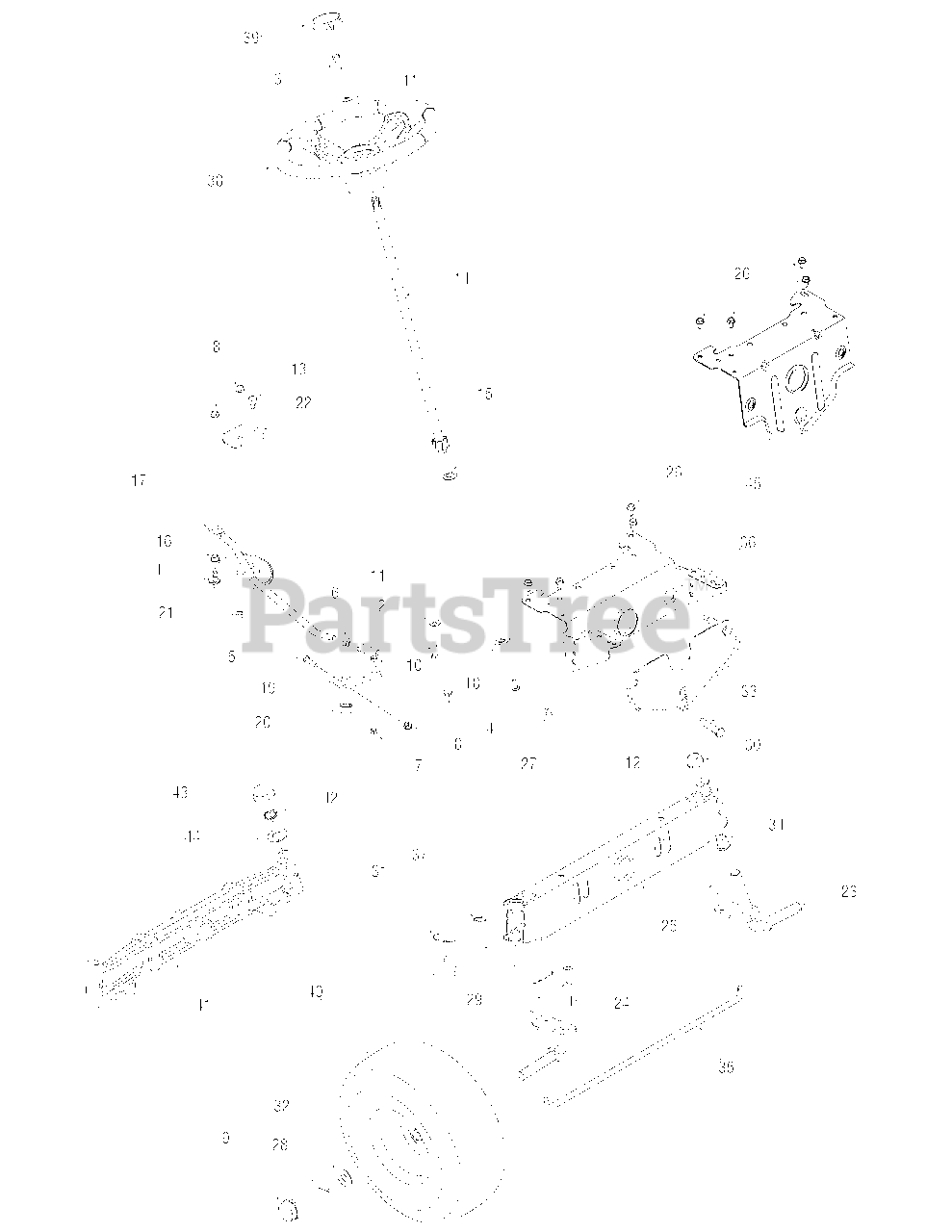

Steering Parts Diagram

  • Title
1

White Outdoor 617-04024

Gear Assembly, Steering
(Superseded to 617-04024A)

$49.99

$

In Stock, Qty 20+

0

2

White Outdoor 710-0376

Screw, 5/16-18, 1.00, Gr5

$3.99

$

In Stock, Qty 17

0

3

White Outdoor 710-0643

Screw, 5/16-18, 1.00, Gr5, Lock

$6.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-1309

Screw, Mach, 5/16-18, 0.750

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 710-3180

Screw, 5/16-18, 1.75, Gr5

$4.99

$

In Stock, Qty 20+

0

6

White Outdoor 712-0240

Nut, Jam, 7/16-20, Gr2
(Superseded to 912-0240)

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 712-0262

Nut, Jam Lock, 3/8-24, Gr2

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-04063

Nut, Flange Lock, 5/16-18, Grf

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 731-0484A

Hub Cap
(Superseded to 931-0484A)

$5.99

$

In Stock, Qty 20+

0

10

White Outdoor 723-0448A

Ball Joint, 7/16-20, Lock
(Superseded to 923-0448A)

$22.99

$

In Stock, Qty 20+

0

11

White Outdoor 736-0242

Washer, Bell, .340 x .872 x .060

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 783-04568

Front Hanger Bracket, Deck

Variations

White Outdoor 783-04568-0637

Deck Hanger Bracket - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04568-4008

BRACKET-DECK HANGER - WINE RED (4008)

$47.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04568-0691

BRACKET-DECK HANGER - BLACK JACK (0691)

$47.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

13

White Outdoor 738-04141

Scr., Shlder, .435 x .3485, 5/16-18

$4.99

$

In Stock, Qty 20+

0

14

White Outdoor 738-0919

Steering Shaft, 5/8 Spline x 21.86
(Superseded to 738-0919B)

$54.99

$

In Stock, Qty 20+

0

15

White Outdoor 741-04124

Bearing, Flange, Hex 5/8

$4.99

$

In Stock, Qty 20+

0

16

White Outdoor 741-0475

Plastic Bushing .380 ID
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 747-04298

Drag Link, Steering
(Superseded to 747-05385A)

$19.99

$

In Stock, Qty 20+

0

18

White Outdoor 748-0389

Cap, 1.25 x .16
(Superseded to 948-0389)

$4.99

$

In Stock, Qty 20+

0

19

White Outdoor 748-04065

Steering, Block
(Superseded to 748-04278-0637)

Variations

White Outdoor 748-04065-0637

Steering Block - POWDER BLACK (0637)

$19.99

$

In Stock, Qty 10

0

$19.99

$

In Stock, Qty 10

0

20

White Outdoor 748-04068

Spacer, .710 ID x .125 OD x .56

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 750-04418

Spacer, .322 ID x .625 OD x .21

$6.49

$

In Stock, Qty 13

0

22

White Outdoor 783-04644

Stabilizer Plate, Gear Segment
(Superseded to 783P08577A)

$6.99

$

In Stock, Qty 10

0

23

White Outdoor 938-04007A-0637

Axle Assembly, LH (38" & 42" Deck)

$42.99

$

In Stock, only 2 left!

0

23

White Outdoor 938-04014A-0637

Axle Assembly, LH (46" Deck)

$52.99

$

Usually ships in 3-6 days

0

24

White Outdoor 638-04008P

Axle Assembly, RH (38" & 42" Deck)

$48.99

$

In Stock, Qty 8

0

24

White Outdoor 938-04013

Axle Assembly, RH (46" Deck)

$52.99

$

In Stock, Qty 7

0

25

Variations

White Outdoor 683-0128B-0498

Steel Axle Pivot Bar Assembly - OLD CUB YELLOW (0498)

$90.99

$

In Stock, Qty 20+

0

White Outdoor 683-0128B-0637

Steel Axle Pivot Bar Assembly - POWDER BLACK (0637)

$90.99

$

In Stock, Qty 20+

0

White Outdoor 683-0128B-0691

Steel Axle Pivot Bar Assembly - BLACK JACK (0691)

$90.99

$

In Stock, Qty 20+

0

White Outdoor 683-0128B-0606

Pivot Bar - MAJESTIC ORANGE (0606)

$90.99

$

In Stock, Qty 20+

0

White Outdoor 683-0128B-0638

Pivot Bar - MTD/TROY-BILT RED (0638)

$90.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0128B-0650

BAR-PIVOT - RED METALLIC (0650)

$90.99

$

In Stock, Qty 20+

0

White Outdoor 683-0128B-0665

Pivot Bar, Yard-Man Green - YARDMAN GREEN (0665)

$90.99

$

In Stock, Qty 20+

0

White Outdoor 683-0128B-0709

BAR-PIVOT - MASTERCRAFT GREEN (0709)

$90.99

$

In Stock, Qty 20+

0

$83.99

$

Usually ships in 3-6 days

0

26

White Outdoor 710-0604A

Screw, 5/16-18, 0.625

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 712-04065

Nut, Flange Lock, 3/8-16, GrF

$3.99

$

In Stock, Qty 20+

0

28

White Outdoor 714-04039

Pin, Cotter, 5/32, 1.25
(Superseded to 714-0162)

$4.99

$

In Stock, Qty 20+

0

29

White Outdoor 714-0474

Pin, Cotter, 1/8 x 0.75

$4.49

$

In Stock, Qty 16

0

30

White Outdoor 726-0341

Push Cap, 3/4

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 731-04057A

End Cap, Pivot Bar (Standard)

$4.99

$

In Stock, Qty 20+

0

31

White Outdoor 731-1291A

End Cap, Pivot Bar (w/ Fitting)
(Superseded to 931-1291A)

$15.99

$

In Stock, Qty 20+

0

32

White Outdoor 736-04228

Washer, Flat, .781 x 1.59
(Superseded to 736-04228B)

$4.99

$

In Stock, Qty 20+

0

33

White Outdoor 738-04128

Scr., Shlder, .500 x 2.380, 3/8-16

$7.49

$

In Stock, only 2 left!

0

34

White Outdoor 741-0660A

Bearing, Flange, .760 x .941 x 1.0

$2.99

$

In Stock, Qty 20+

0

$28.99

$

In Stock, Qty 7

0

36

White Outdoor 783-04601B

Bracket, Pivot
(Superseded to 783-04601C)

Variations

White Outdoor 783-04601B-0637

BRACKET-PIVOT BAR - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04601B-0638

BRACKET PIVOT - MTD/TROY-BILT RED (0638)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04601B-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$49.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

37

White Outdoor 731-04057A

Axle End Cap, Standard

$4.99

$

In Stock, Qty 20+

0

38

White Outdoor 631-04028

Steering Wheel, Standard Grip

$64.99

$

In Stock, Qty 7

0

38

White Outdoor 631-04008

Steering Wheel, Soft Grip
(Superseded to 631-04008B)

$88.99

$

In Stock, Qty 12

0

39

White Outdoor 731-04039

Cap, Steering Wheel (no logo)

$7.99

$

In Stock, Qty 7

0

39

White Outdoor 731-04040

Cap, Steering Wheel (sprig logo)

$9.49

$

In Stock, only 1 left!

0

40

White Outdoor 634-04325

Wheel Ass’y, Round Shoulder

Variations

White Outdoor 634-04325-0911

Wheel Assembly, Gray 15" - Carlisle Gray (0911)

$90.99

$

In Stock, Qty 6

0

White Outdoor 634-04325-0941

WHEEL ASM-COMPL:15 - Carlisle Yellow (0941)

$166.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04325-0961

WHEEL ASM-COMPL:15 - Carlisle Gray (0961)

$90.99

$

In Stock, only 1 left!

0

$127.99

$

Usually ships in 3-6 days

0

40

White Outdoor 734-04240A

Tire Only, 15 x 6 x 6, Round Shld.
(Superseded to 734-04240A-0901)

Variations

White Outdoor 734-04240A-0901

Tire, 15 X 6 X 6 Rn - Carlisle (0901)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

40

White Outdoor 634-04086

Wheel Ass’y, Square Shoulder
(Superseded to 634-05067)

Note: Not shown

Variations

White Outdoor 634-04086-0911

Wheel Assembly Complete - Carlisle Gray (0911)

$172.99

$

In Stock, only 4 left!

0

White Outdoor 634-04086-0941

WHL ASM-COMP - Carlisle Yellow (0941)

$160.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04086-0961

Wheel Assembly Complete - Carlisle Gray (0961)

$90.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04086-0991

WHL ASM-COMP - Carlisle White (0991)

$172.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04086-4009

USE 634-04086-0991 WHL ASM-CO - TEE WHITE (4009)

$172.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04086-0931

WHL ASM-COMP - Carlisle Beige (0931)

$160.99

$

Usually ships in 3-6 days

0

$140.99

$

Usually ships in 3-6 days

0

40

White Outdoor 734-1731

Tire Only, 15 x 6 x 6, Square Shld.

Note: Not shown

Variations

White Outdoor 734-1731-0901

TIRE SQUARE TREAD 15 X 5 - Carlisle (0901)

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1731-0902

TIRE 15 X 6 DICO-M - Dico (0902)

$41.99

$

In Stock, Qty 5

0

White Outdoor 734-1731-0904

TIRE SQUARE TREAD 15 X 5 - Cheng (0904)

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1731-0905

TIRE 15 X 6 - Duro (0905)

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1731-0906

TIRE 15 X 6 KENDA - Kenda (0906)

$46.99

$

Usually ships in 3-6 days

0

$103.99

$

In Stock, only 1 left!

0

40

White Outdoor 634-04081

Rim Assembly (Incl. bearings and valve stem)
(Superseded to 934-04081)

Note: Not shown

Variations

White Outdoor 634-04081-0499

RIM ASSY-FRONT - CUB BEIGE (0499)

$98.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04081-0662

Rim Assembly, Front Grey - OYSTER GRAY (0662)

$98.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04081-0674

RIM ASSY-FRONT - YARDMAN YELLOW (0674)

$98.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04081-4009

Rim Assembly, Front Tee White - TEE WHITE (4009)

$98.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04081-4042

RIM ASSY-FRONT - CRAFTSMAN GRAY (4042)

$98.99

$

Usually ships in 3-6 days

0

$79.99

$

Usually ships in 3-6 days

0

41

White Outdoor 719-04105

Pivot Bar, Cast
(Superseded to 919-04177E)

$231.99

$

Usually ships in 3-6 days

0

42

White Outdoor 726-04035

Push Nut 3/4 Dia.

$6.49

$

In Stock, Qty 14

0

$4.49

$

In Stock, Qty 17

0

44

White Outdoor 736-0316

Washer, Flat, .78 x 1.59 x .60

$3.99

$

In Stock, Qty 20+

0

45

White Outdoor 783-05326

Pivot Bar Bracket, T-Style Hood
(Superseded to 783-05326B-0637)

Variations

White Outdoor 783-05326-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$38.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0
