LT-542 H (13A2791G790) - White Outdoor 42" Lawn Tractor (2006) Hood Assembly Parts Diagram

42" Lawn Tractor

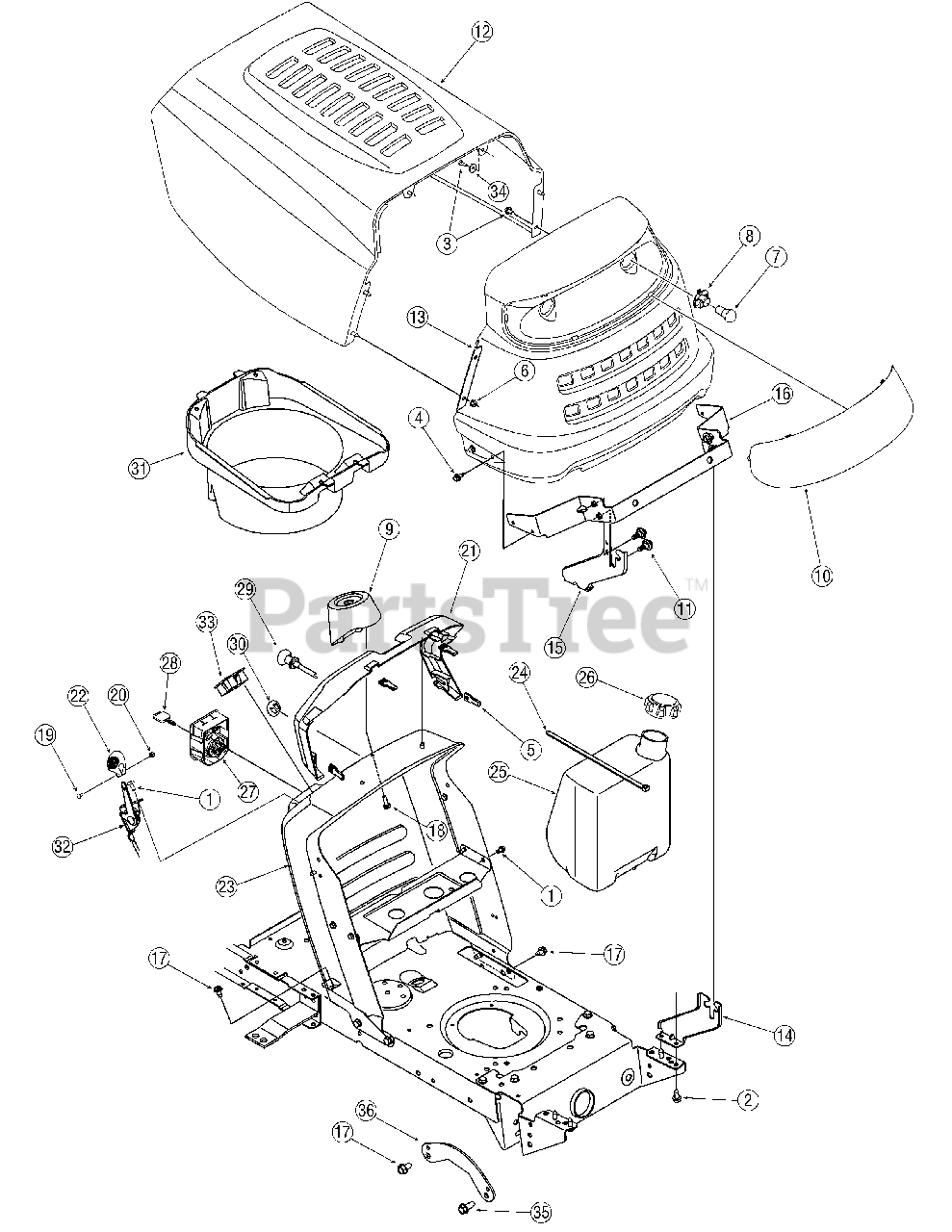

Hood Assembly Parts Diagram

  • Title

1

White Outdoor 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-0751

Screw, 1/4-20, .620, Gr5

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-04483

Screw, 1/4-20, .625

$7.49

$

Usually ships in 3-6 days

0

5

White Outdoor 712-0185

Nut, 1/4-20, Speed U-type

$

$

Not available

6

White Outdoor 712-04064

Nut, Flange Lock, 1/4-20, GrF, Nylon

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 725-0963

Headlamp, 12V
(Superseded to 925-0963)

$7.99

$

In Stock, Qty 20+

0

8

White Outdoor 725-1649

Headlamp Socket
(Superseded to 925-1649A)

$12.99

$

In Stock, Qty 20+

0

9

White Outdoor 731-04945

Support, Steering

$19.99

$

In Stock, only 3 left!

0

10

White Outdoor 731-04949

Lens
(Superseded to 731-04949A)

$28.99

$

In Stock, Qty 11

0

11

White Outdoor 738-04091

Screw, Shoulder, .43 x.29, 5/16-18
(Superseded to 738-04091A)

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 783-04551

Hood

Variations

White Outdoor 783-04551-0499

HOOD-1 STYLE - CUB BEIGE (0499)

$

$

Not available

White Outdoor 783-04551-0638

HOOD-1 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-04551-0640

HOOD-1 STYLE - CO-OP GREEN (0640)

$

$

Not available

White Outdoor 783-04551-0662

HOOD-1 STYLE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-04551-0674

HOOD-1 STYLE - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 783-04551-0691

HOOD-1 STYLE - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-04551-0709

HOOD-1 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 783-04551-0729

HOOD-1 STYLE - STORM GRAY (0729)

$

$

Not available

White Outdoor 783-04551-4015

HOOD-1 STYLE - FIRE RED (4015)

$

$

Not available

$

$

13

White Outdoor 783-04552

Grille

Variations

White Outdoor 783-04552-0662

GRILLE 1 STYLE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-04552-0674

GRILLE 1 STYLE - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 783-04552-0499

GRILLE 1 STYLE - CUB BEIGE (0499)

$

$

Not available

White Outdoor 783-04552-0638

GRILLE 1 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-04552-0640

GRILLE 1 STYLE - CO-OP GREEN (0640)

$

$

Not available

White Outdoor 783-04552-0691

GRILLE 1 STYLE - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-04552-0709

GRILLE 1 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 783-04552-0729

GRILLE 1 STYLE - STORM GRAY (0729)

$

$

Not available

$

$

14

White Outdoor 783-04577

Pivot Bracket, LH
(Superseded to 783-04577A-0637)

Variations

White Outdoor 783-04577-0637

Pivot Bracket, LH - POWDER BLACK (0637)

$

$

Not available

$

$

15

White Outdoor 783-04578

Pivot Bracket, RH
(Superseded to 783-04578A-0637)

Variations

White Outdoor 783-04578-0637

Pivot Bracket, RH - POWDER BLACK (0637)

$18.99

$

In Stock, only 1 left!

0

$18.99

$

In Stock, only 1 left!

0

16

White Outdoor 783-04621

Pivot Bracket, Grille

Variations

White Outdoor 783-04621-0637

BRACKET-PIVOT GRILL - POWDER BLACK (0637)

$

$

Not available

$

$

17

White Outdoor 710-0604A

Screw, 5/16-18, 0.625

$4.99

$

In Stock, Qty 19

0

18

White Outdoor 710-0895

Screw, 1/4-15, 0.750

$6.99

$

In Stock, Qty 20+

0

19

White Outdoor 710-3217

Screw, Machine, #8-32, 0.375

$7.49

$

In Stock, Qty 5

0

20

White Outdoor 712-0142

Nut, Hex, #8-32, GrA

$4.99

$

In Stock, Qty 8

0

21

White Outdoor 731-04947

Collar, Dash
(Superseded to 731-04947A)

$

$

Not available

22

White Outdoor 731-1857

Knob, Control

$15.99

$

In Stock, only 4 left!

0

23

White Outdoor 683-04189

Dash Assembly (Models w/o Ammeter)
(Superseded to 753-05614)

Variations

White Outdoor 683-04189-0637

Replacement Dash Kit - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-04189-0650

Replacement Dash Kit - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-04189-0665

Replacement Dash Kit - YARDMAN GREEN (0665)

$

$

Not available

$

$

23

White Outdoor 683-04164

Dash Assembly (Models w/ Ammeter)

Variations

White Outdoor 683-04164-0637

DASH ASSY-RIDER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-04164-0638

DASH ASSY-RIDER - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 683-04164-0650

DASH ASSY-RIDER - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-04164-0665

DASH ASSY-RIDER - YARDMAN GREEN (0665)

$

$

Not available

$

$

23

White Outdoor 783-04584

Bracket Support, Gas Tank
(Superseded to 783-04584B-0637)

Variations

White Outdoor 783-04584-0637

Support Bracket, Black - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

24

White Outdoor 726-0230

Cable Tie, 34.75

$28.99

$

In Stock, only 1 left!

0

25

White Outdoor 751-0555B

Fuel Tank, 1.5 gal.
(Superseded to 751-0555D)

$94.99

$

In Stock, only 1 left!

0

26

White Outdoor 751-0603

Fuel Tank Cap
(Superseded to 751-0603B)

$24.99

$

In Stock, Qty 8

0

27

White Outdoor 725-04227

Module, Ignition Switch
(Superseded to 925-06119C)

$123.99

$

In Stock, Qty 20+

0

28

White Outdoor 725-1744

Key
(Superseded to 925-1745A)

$18.99

$

In Stock, Qty 20+

0

29

White Outdoor 746-1085A

Choke Control, 37.5"
(Superseded to 946-1085A)

$32.99

$

In Stock, Qty 16

0

30

White Outdoor 731-1999

Plug

$10.99

$

Usually ships in 3-6 days

0

31

White Outdoor 731-05147

Plenum (Single Cylinder Engine)
(Superseded to 731-05147A)

$52.99

$

Usually ships in 3-6 days

0

31

White Outdoor 731-05165

Plenum (Twin Cylinder Engine)
(Superseded to 731-05165A)

$49.99

$

Usually ships in 3-6 days

0

32

White Outdoor 746-1084

Throttle/Choke Control, 25" (Single Cylinder Engine)
(Superseded to 946-1084)

$33.99

$

Usually ships in 3-6 days

0

32

White Outdoor 746-1086

Throttle Control, 39" (Twin Cylinder Engine)
(Superseded to 946-1086)

$35.99

$

In Stock, Qty 6

0

33

White Outdoor 725-04156

Ammeter
(Superseded to 925-04156)

$31.99

$

In Stock, Qty 5

0

34

White Outdoor 736-0176

Flat Washer .265 x .938 x .120

$4.99

$

In Stock, Qty 20+

0

35

White Outdoor 710-1260A

Screw, 5/16-18, 0.750

$3.99

$

In Stock, Qty 20+

0

36

White Outdoor 783-05027

Front Pivot Support Bracket

Variations

White Outdoor 783-05027-0637

BRACKET:SUPPORT:PI - POWDER BLACK (0637)

$21.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0
