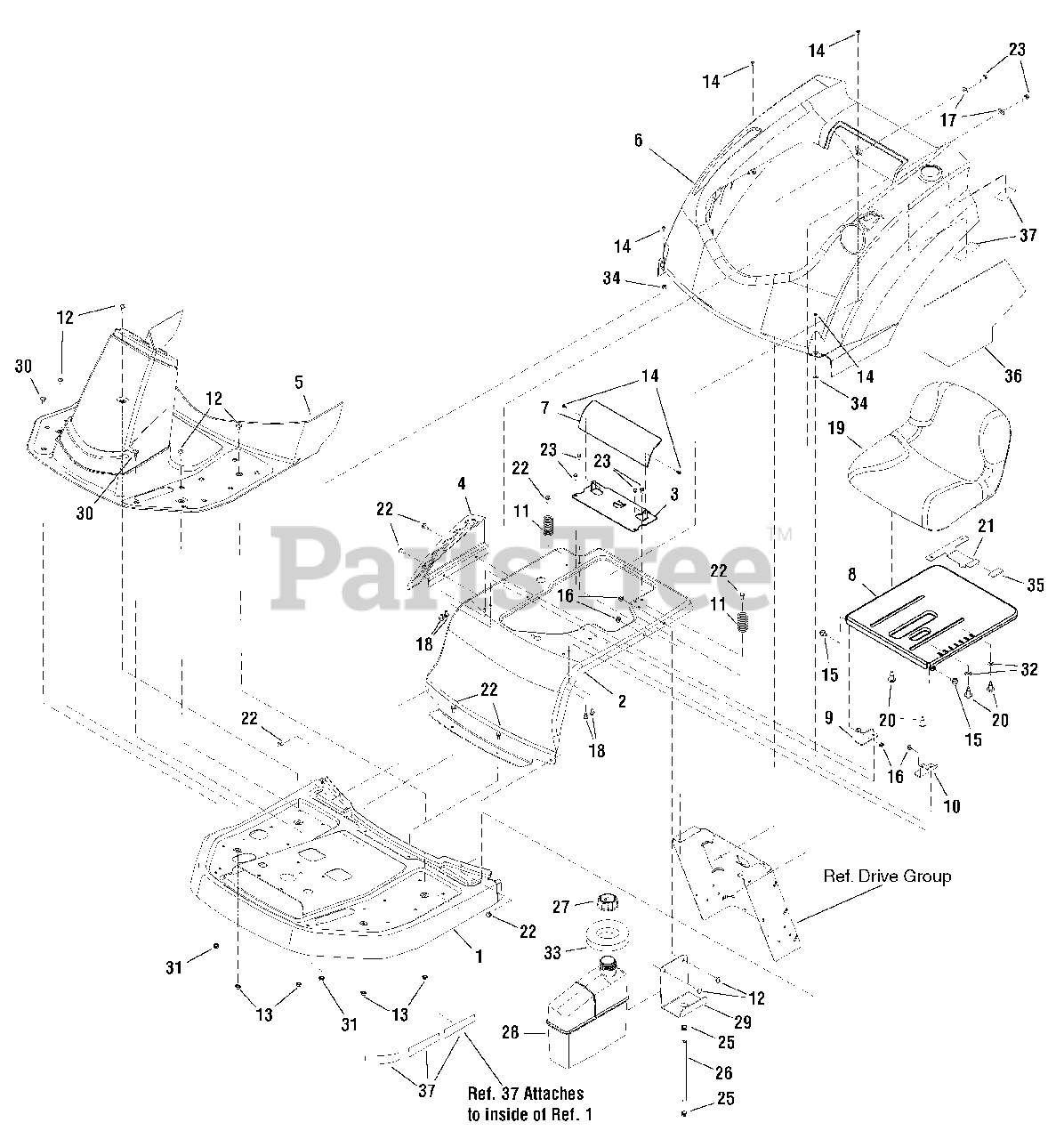

LT 75 (7800352) - Snapper 33" Rear-Engine Riding Mower, 15.5hp Seat, Body, Dash & Fuel Tank Group Parts Diagram

33" Rear-Engine Riding Mower, 15.5hp

Seat, Body, Dash & Fuel Tank Group Parts Diagram

  • Title

1

Snapper 885003D

FOOTREST
(Superseded to 885003DYP)

$398.99

$

Usually ships in 2-12 days

0

2

Snapper 885001A

SEAT SUPPORT
(Superseded to 885001AYP)

$193.99

$

Usually ships in 2-12 days

0

3

Snapper 885009BM

COVER, Seat Support

$

$

Not available

4

Snapper 885091BM

DECK LIFT INDEX ASSY

$

$

Not available

5

Snapper 885002

FOOTREST, Plastic
(Superseded to 885002YP)

$467.99

$

Usually ships in 2-12 days

0

6

Snapper 885004

BODY, Plastic
(Superseded to 885004YP)

$433.99

$

Usually ships in 2-12 days

0

7

Snapper 885021

BATTERY COVER
(Superseded to 885021YP)

$28.99

$

Usually ships in 2-12 days

0

8

Snapper 885010BM

BRACKET, Seat

$

$

Not available

9

Snapper 885060BM

SEAT SUPPORT, Bracket RH

$

$

Not available

10

Snapper 885061BM

SEAT SUPPORT, Bracket LH

$

$

Not available

11

Snapper 722411

SPRING, Seat
(Superseded to 164X30MA)

$15.99

$

Usually ships in 2-12 days

0

12

Snapper 720049

BOLT, Carriage, 5/16-18 x 5/8
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

13

Snapper 720139

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

14

Snapper 720095

SCREW, Shoulder #10-24
(Superseded to 009X47MA)

$4.49

$

Usually ships in 2-12 days

0

15

Snapper 720102

BOLT, Shoulder 5/16-18 x 5/8
(Superseded to 009X56MA)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 720145

NUT, Hex Flange Centerlock 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

17

Snapper 720159

WASHER, Flat, 3/4
(Superseded to 017X38MA)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 720358

SCREW, 5/16-18 x 0.50
(Superseded to 026X49MA)

$4.49

$

Usually ships in 2-12 days

0

19

Snapper 885172

SEAT
(Superseded to 885172YP)

$290.99

$

Usually ships in 2-12 days

0

20

Snapper 885108

BOLT, Shoulder, 5/16-18 x 1.50
(Superseded to 885108YP)

$4.99

$

Usually ships in 2-12 days

0

21

Snapper 885100BM

LEVER, Seat Adjust
(Superseded to 885100BMYP)

$32.99

$

Usually ships in 2-12 days

0

22

Snapper 722858

CAPSCREW, 5/16-18 x 3/4
(Superseded to 26X249MA)

$

$

Not available

23

Snapper 722866

SCREW, Hex 1/4-20 x 5/8
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

24

Snapper 720049

BOLT, Carriage 5/16-18 x 5/8
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

25

Snapper 721403

CLAMP, Hose, Yellow
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

26

Snapper 729007

FUEL LINE
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

27

Snapper 727333

FUEL CAP
(Superseded to 092317MA)

$10.99

$

In Stock, Qty 12

0

28

Snapper 885006

TANK, Fuel 1.6 Gallon.
(Superseded to 885006YP)

$71.99

$

Usually ships in 2-12 days

0

29

Snapper 885101BM

BRACKET, Fuel Tank

$

$

Not available

30

Snapper 720048

BOLT, Carriage, 1/4-20 x 0.63
(Superseded to 002X39MA)

$3.49

$

In Stock, only 1 left!

0

31

Snapper 720132

NUT, Keps Lock 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 18

0

32

Snapper 720173

WASHER, Flat, .81 X .550 X 16GA
(Superseded to 017X91MA)

$5.49

$

In Stock, only 2 left!

0

33

Snapper 721609

RING, Foam
(Superseded to 1001963MA)

$4.49

$

Usually ships in 2-12 days

0

34

Snapper 720140

NUT, Flange Lock 1/4-20
(Superseded to 015X81MA)

$4.99

$

Usually ships in 2-12 days

0

35

Snapper 885215

GRIP, Seat Adjustment Lever
(Superseded to 885215YP)

$4.99

$

Usually ships in 2-12 days

0

36

Snapper 885278

HEAT SHIELD
(Superseded to 885278YP)

Note: (Used with Service Kit 885280 or After Serial No. 2013421413)

$103.99

$

Usually ships in 2-12 days

0

37

Snapper 727221

TAPE, Reflective
(Superseded to 1401209MA)

$34.99

$

Usually ships in 2-12 days

0
