LT 75 (7800677) - Snapper 33" Rear-Engine Riding Mower, 17.5hp Drive Group Parts Diagram

33" Rear-Engine Riding Mower, 17.5hp

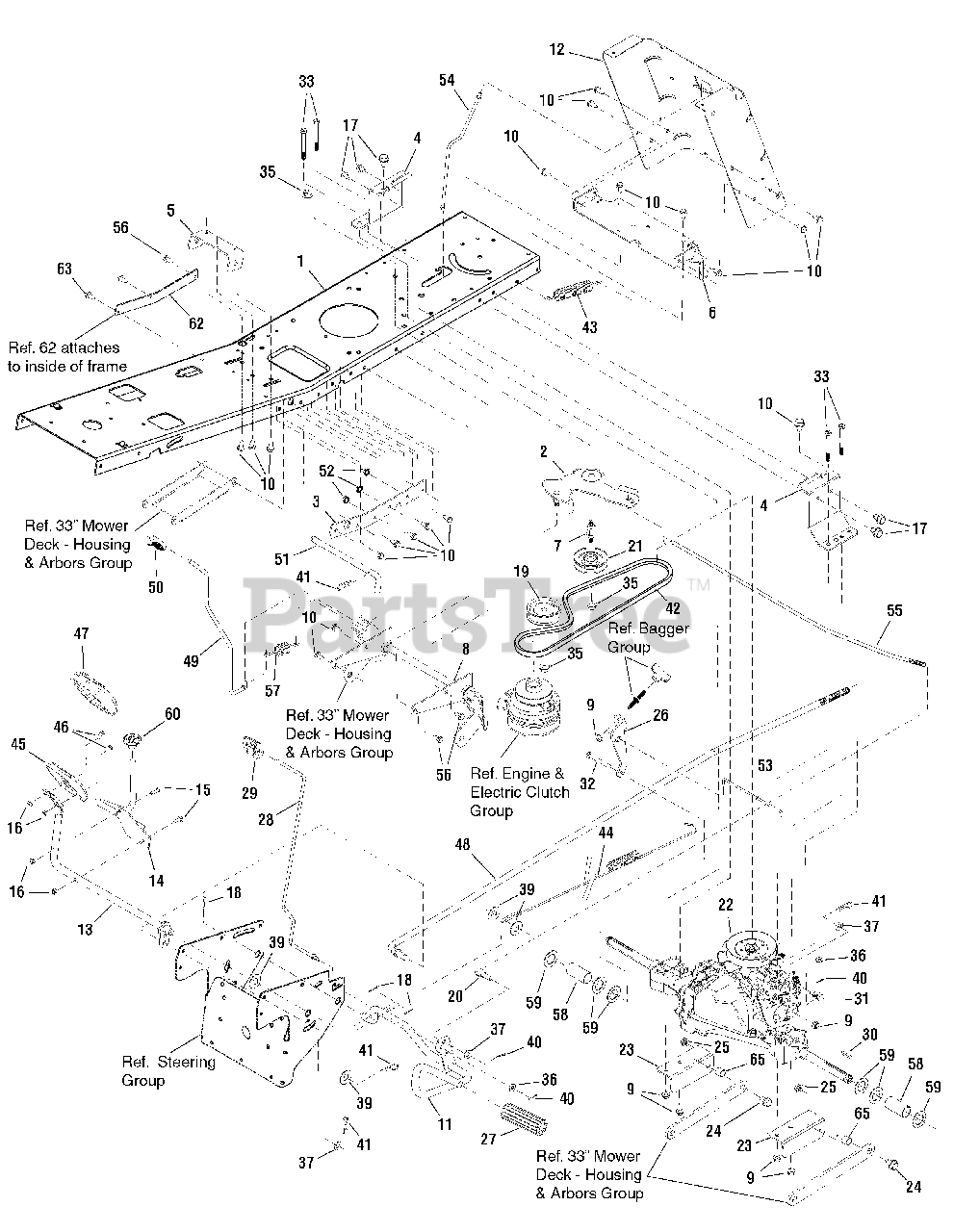

Drive Group Parts Diagram

  • Title

1

Snapper 885058A

FRAME
(Superseded to 885058AYP)

$

$

Not available

2

Snapper 885069BM

IDLER PULLEY ARM ASSY

$

$

Not available

3

Snapper 885338AYP

REINFORCEMENT PLATE, L.H.

$30.99

$

Usually ships in 2-12 days

0

4

Snapper 885034A

BRACKET, Transaxle
(Superseded to 885034AYP)

$19.99

$

Usually ships in 2-12 days

0

5

Snapper 726515A

BRACKET, Front Hanger Pivot
(Superseded to 1401030E701MA)

$5.99

$

Usually ships in 2-12 days

0

6

Snapper 727241A

PLATE, Hitch
(Superseded to 1401050E701MA)

$47.99

$

Usually ships in 2-12 days

0

7

Snapper 885064

IDLER STUD
(Superseded to 885064YP)

$7.99

$

Usually ships in 2-12 days

0

8

Snapper 885230BM

LIFTER ASSEMBLY
(Superseded to 885230BMYP)

$140.99

$

Usually ships in 2-12 days

0

9

Snapper 720145

NUT, Hex Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

10

Snapper 722858

CAPSCREW, 5/16-18 x 3/4
(Superseded to 26X249MA)

$

$

Not available

11

Snapper 885068BM

CLUTCH & BRAKE PEDAL ASSEMBLY

$

$

Not available

12

Snapper 885269BM

PLATE, Rear

$

$

Not available

13

Snapper 885070A

HYDRO ARM ASSY
(Superseded to 885070AYP)

$46.99

$

Usually ships in 2-12 days

0

14

Snapper 885089BM

REVERSE PEDAL ASSY

$

$

Not available

15

Snapper 720065

BOLT, Carriage, 1/4 - 20 x 1
(Superseded to 703584)

$3.99

$

In Stock, Qty 10

0

16

Snapper 720133

NUT, Centerlock, 1/4-20
(Superseded to 703251)

$5.49

$

In Stock, Qty 12

0

17

Snapper 720358

SCREW, 5/16-18 x 1/2
(Superseded to 026X49MA)

$4.49

$

In Stock, only 2 left!

0

18

Snapper 720389

PIN, Cotter
(Superseded to 030X35MA)

$4.49

$

Usually ships in 2-12 days

0

19

Snapper 722031

IDLER PULLEY, Backside
(Superseded to 1401309MA)

$

$

Not available

20

Snapper 721354

NUT, Adjusting
(Superseded to 094815ZMA)

$21.99

$

Usually ships in 2-12 days

0

21

Snapper 722009

IDLER PULLEY, Fixed
(Superseded to 1401252MA)

$34.99

$

Usually ships in 2-12 days

0

22

Snapper 885030

* TRANSMISSION, Hydro Gear
(Superseded to 885030YP)

$1117.99

$

Usually ships in 2-12 days

0

23

Snapper 885053BM

REAR HANGER BRACKET, R.H.
(Superseded to 885053BMYP)

$15.99

$

Usually ships in 2-12 days

0

24

Snapper 885340

PIN, Threaded Shoulder, 3/8-16 x 1-1/2
(Superseded to 885340YP)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 720142

NUT, Hex Flange 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

26

Snapper 885031BM

TORQUE STRAP BRACKET

$

$

Not available

27

Snapper 720257

PEDAL, Clutch and Brake
(Superseded to 1727261SM)

$10.99

$

In Stock, only 1 left!

0

28

Snapper 885104

ROD, Parking Brake
(Superseded to 885104YP)

$24.99

$

Usually ships in 2-12 days

0

29

Snapper 885026

KNOB, Parking Brake
(Superseded to 885026YP)

$6.49

$

Usually ships in 2-12 days

0

30

Snapper 720650

KEY, Square
(Superseded to 056534MA)

$5.49

$

In Stock, only 2 left!

0

31

Snapper 885076

NUT, Adjusting
(Superseded to 885076YP)

$13.99

$

Usually ships in 2-12 days

0

32

Snapper 720215

BOLT, Hex, 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

33

Snapper 720216

BOLT, Hex-Head 5/16-18 x 3
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

35

Snapper 720148

NUT, Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

36

Snapper 720159

WASHER, Flat, 3/4
(Superseded to 017X38MA)

$3.99

$

Usually ships in 2-12 days

0

37

Snapper 720166

WASHER, Flat 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 14

0

39

Snapper 727938

WASHER, 0.641 x 1.38
(Superseded to 17X157MA)

$4.49

$

In Stock, Qty 6

0

40

Snapper 720387

PIN, Cotter, 3/4
(Superseded to 703312)

$4.49

$

In Stock, only 2 left!

0

41

Snapper 720069

HAIR PIN, .56D-.092T
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

42

Snapper 885015

BELT, Drive, 33"
(Superseded to 885015YP)

$24.99

$

In Stock, only 1 left!

0

43

Snapper 722446

SPRING, Extension
(Superseded to 165X147MA)

$16.99

$

In Stock, only 1 left!

0

44

Snapper 885017

Spring, Brake Extension
(Superseded to 885017YP)

$19.99

$

Usually ships in 2-12 days

0

45

Snapper 885037BM

PEDAL, Hydro

$

$

Not available

46

Snapper 720048

BOLT, Carriage 1/4-20 x 5/8
(Superseded to 002X39MA)

$3.49

$

In Stock, only 1 left!

0

47

Snapper 885086

PAD, Hydro Pedal
(Superseded to 885086YP)

$13.99

$

Usually ships in 2-12 days

0

48

Snapper 885055

ROD, Shift Link
(Superseded to 885055YP)

$26.99

$

Usually ships in 2-12 days

0

49

Snapper 885048

LEVER, Lift Deck
(Superseded to 885048YP)

$48.99

$

Usually ships in 2-12 days

0

50

Snapper 727798

GRIP, .50 Black
(Superseded to 094497MA)

$6.49

$

Usually ships in 2-12 days

0

51

Snapper 721979

PIN, Front Hanger
(Superseded to 1401118MA)

$44.99

$

Usually ships in 2-12 days

0

52

Snapper 720139

NUT, Hex Flange 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

53

Snapper 885059

ROD, Roll Release
(Superseded to 885059YP)

$8.99

$

Usually ships in 2-12 days

0

54

Snapper 885095

ROD, Battery
(Superseded to 885095YP)

$9.99

$

Usually ships in 2-12 days

0

55

Snapper 722027

ROD, Clutch Hydro
(Superseded to 1401305ZMA)

$76.99

$

Usually ships in 2-12 days

0

56

Snapper 722867

SCREW, Self Tap 5/16-18 x 7/8
(Superseded to 26X267MA)

$4.99

$

Usually ships in 2-12 days

0

57

Snapper 727619

SPRING, Extension
(Superseded to 165X154MA)

$5.49

$

Usually ships in 2-12 days

0

58

Snapper 725228

SPACER
(Superseded to 690554ZMA)

$18.99

$

In Stock, only 1 left!

0

59

Snapper 722598

WASHER, Flat, 3/4 x 1-1/4 x 16GA
(Superseded to 17X160MA)

$4.99

$

Usually ships in 2-12 days

0

60

Snapper 885228

PEDAL PAD, Hydro Reverse
(Superseded to 885228YP)

$6.99

$

Usually ships in 2-12 days

0

61

Snapper 885282

SERVICE KIT, Lifter Assembly
(Superseded to 885282YP)

Note: (Not Illustrated, Includes Ref. Nos. 8 and 49)

$138.99

$

Usually ships in 2-12 days

0

62

Snapper 885337AYP

REINFORCEMENT PLATE, R.H.

$85.99

$

Usually ships in 2-12 days

0

63

Snapper 722866

CAPSCREW, Hex, 1/4-20 x 9/16
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

65

Snapper 885341YP

SPACER

$6.49

$

Usually ships in 2-12 days

0
